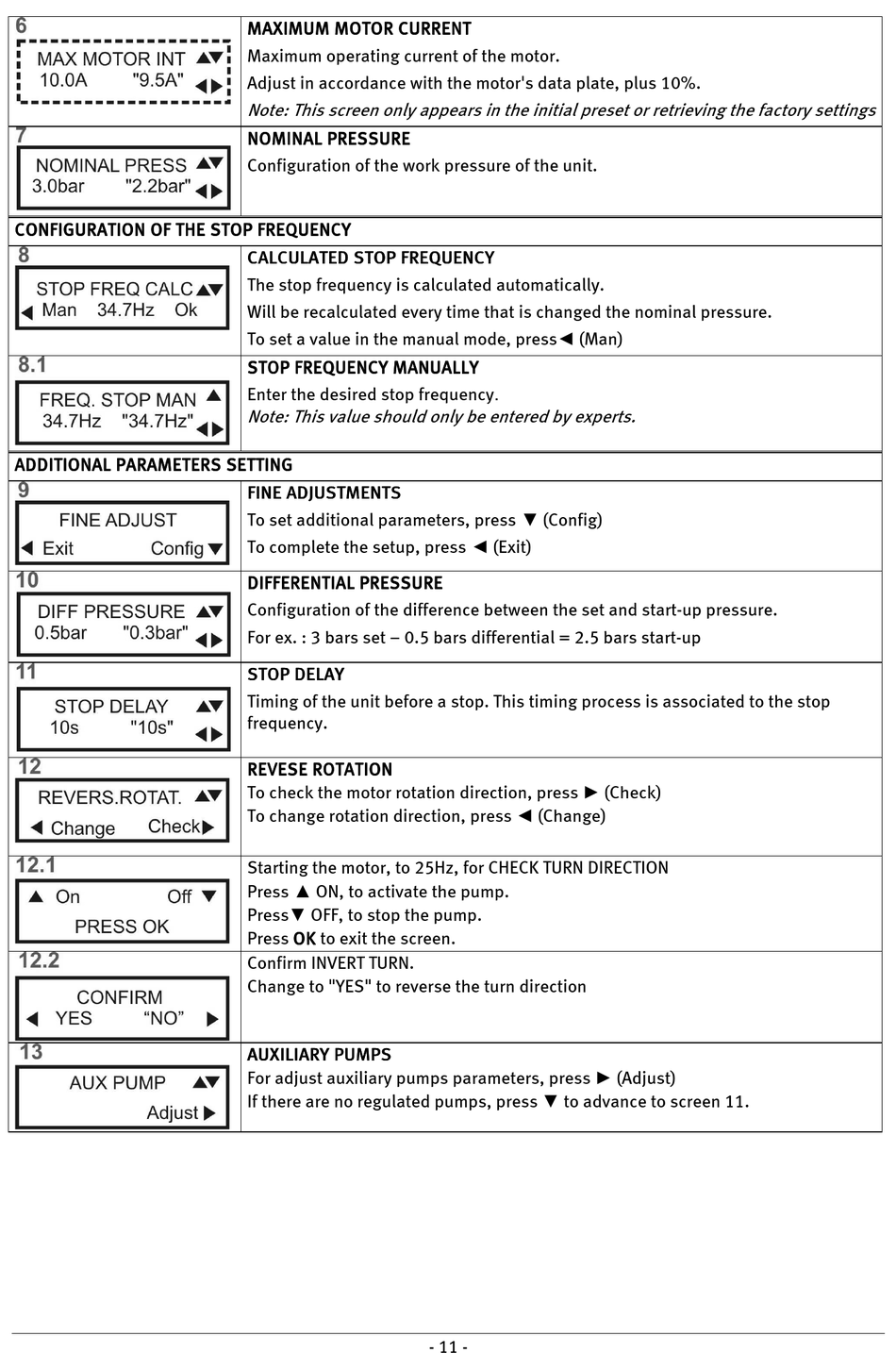

Espa SPEEDRIVE Instruction Manual page 11

CONFIGURATION OF THE STOP FREQUENCY CONFIGURATION OF THE STOP FREQUENCY
CONFIGURATION OF THE STOP FREQUENCY CONFIGURATION OF THE STOP FREQUENCY
ADDITIONAL PARAMETERS SETTING ADDITIONAL PARAMETERS SETTING
ADDITIONAL PARAMETERS SETTING ADDITIONAL PARAMETERS SETTING
MAXIMUM MOTOR CURRENT MAXIMUM MOTOR CURRENT
MAXIMUM MOTOR CURRENT MAXIMUM MOTOR CURRENT
Maximum operating current of the motor.
Adjust in accordance with the motor's data plate, plus 10%.
Note: This screen only appears in the initial preset or retrieving the factory settings
NOMINAL PRESSURE NOMINAL PRESSURE NOMINAL PRESSURE NOMINAL PRESSURE
Configuration of the work pressure of the unit.
CALCULATED STOP FREQUENCY CALCULATED STOP FREQUENCY CALCULATED STOP FREQUENCY CALCULATED STOP FREQUENCY
The stop frequency is calculated automatically.
Will be recalculated every time that is changed the nominal pressure.
To set a value in the manual mode, press◄ (Man)
STOP FREQUENCY MANUALLY STOP FREQUENCY MANUALLY STOP FREQUENCY MANUALLY STOP FREQUENCY MANUALLY
Enter the desired stop frequency.
Note: This value should only be entered by experts.
FINE ADJUSTMENTS FINE ADJUSTMENTS FINE ADJUSTMENTS FINE ADJUSTMENTS
To set additional parameters, press ▼ (Config)
To complete the setup, press ◄ (Exit)
DIFFERENTIAL PRESSURE DIFFERENTIAL PRESSURE
DIFFERENTIAL PRESSURE DIFFERENTIAL PRESSURE
Configuration of the difference between the set and start-up pressure.
For ex. : 3 bars set – 0.5 bars differential = 2.5 bars start-up
STOP DELAY STOP DELAY STOP DELAY STOP DELAY
Timing of the unit before a stop. This timing process is associated to the stop
frequency.
REVESE ROTATION REVESE ROTATION REVESE ROTATION REVESE ROTATION
To check the motor rotation direction, press ► (Check)
To change rotation direction, press ◄ (Change)
Starting the motor, to 25Hz, for CHECK TURN DIRECTION
Press ▲ ON, to activate the pump.
Press▼ OFF, to stop the pump.
Press OK OK to exit the screen. OK OK
Confirm INVERT TURN.
Change to "YES" to reverse the turn direction
AUXILIARY PUMPS AUXILIARY PUMPS
AUXILIARY PUMPS AUXILIARY PUMPS
For adjust auxiliary pumps parameters, press ► (Adjust)
If there are no regulated pumps, press ▼ to advance to screen 11.
- 11 -
