Page 2

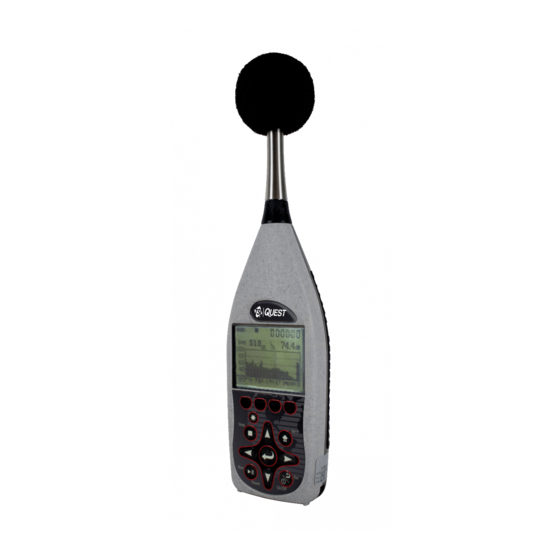

Indicators Battery power: Stop: Run time: 00:00:00 1. Display Softkey menu Measurement type 7. “Softkey” Menu: Repeatedly press 1 softkey <SLM> FILE COMM Correspond with softkeys to toggle through to select 1/1, 1/3, SLM (if purchased) 8.
Page 3
Ensure the SoundPro is turned On and is either stopped or paused. Attach the calibrator and cal adapter to the SoundPro. Set the calibrator to 1 KHz and 114 dB (if it is a selectable). Microphone Place calibrator over microphone QC10/QC20 Select 1kHz and 114 dB From the Start screen, press the Cal softkey and the Cal screen will open.
Page 4
Filtered Bar Chart screen For the filtered bar chart screen, the dominant characteristic of this screen is the multi-element bar chart. The chart displays measurements in each filter band and broadband values for both meters. For octave band analysis, the screen contains 13 bars (11 for filters and 2 for broadband), and for third-octave analysis the screen contains 35 bars (33 for filters and 2 for broadband) of measurement values.
Viewing data and Data Finder Page 2. DMS Welcome page and instrument communication 1. Communicating/connecting the SoundPro to the pc A. Click on icon (see A) to access the Instrument download panel. A. Turn On the Sound Pro. B. Plug in USB cable from SoundPro to pc. 3.
Page 6
About Us 3M Detection Solutions is a world class manufacturer of rugged, reliable instrumentation and software systems that help monitor and evaluate occupational and environmental health and safety hazards, including noise dosimetry, sound level monitoring, heat stress, indoor air quality and select toxic/combustible gases. The 3M Detection brand of instrumentation is used by safety and industrial hygiene professionals to help comply with applicable occupational standards and regulations.
