NOTICE
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Installation and service of this appliance MUST be performed by qualified
certified NFI personnel.
Massachusetts: The piping and final gas connection must be performed by a
licensed plumber or gas fitter in the State of Massachusetts. Also, see Carbon
Monoxide detector requirements on page 65

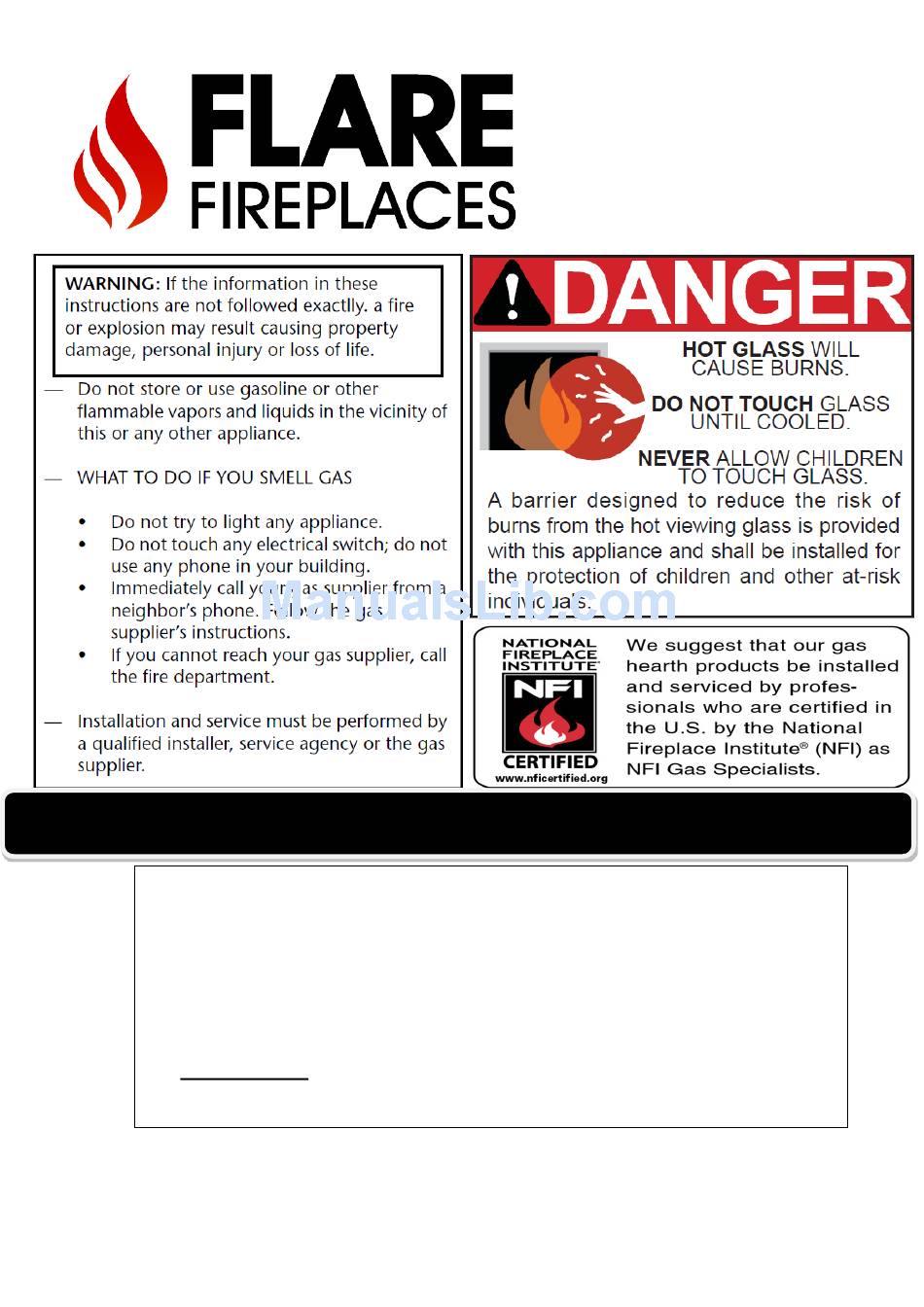

Flare Fireplaces Installation Guide
[Flare Double Corner, Left Corner, Right Corner, Front, See-
Through and Room Definer] v4.77

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLARE 25 and is the answer not in the manual?

Questions and answers

Related Manuals for Flare Fireplaces FLARE 25

Summary of Contents for Flare Fireplaces FLARE 25

  • Page 1 Massachusetts: The piping and final gas connection must be performed by a licensed plumber or gas fitter in the State of Massachusetts. Also, see Carbon Monoxide detector requirements on page 65 Flare Fireplaces Installation Guide [Flare Double Corner, Left Corner, Right Corner, Front, See- Through and Room Definer] v4.77...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS SAFETY INFO AND WARNINGS............................. 5 FLARE FIREPLACES – FRAMELESS IN EVERY WAY ......................7 SAFETY ..................................... 7 CSA CERTIFICATION ..............................7 MANUAL MODEL LIST & INFORMATION ........................8 FIREPLACE OPERATION..............................9 ............................9 REMOTE CONTROL INSTRUCTIONS ............................13 RECEIVER AND REMOTE BATTERIES ..........................
  • Page 3 GENERAL ..................................66 ORIFICE SIZE ..............................67 GAS VALVE ACCESS DOOR ..........................68 COMMONWEALTH OF MASSACHUSETTS FLARE FIREPLACES - DOUBLE GLASS .......................... 69 ..................................69 OVERVIEW ............................. 69 DOUBLE GLASS INSTRUCTIONS Power requirements ..............................70 TELEVISION MOUNTING ABOVE FIREPLACE ....................... 70 –...
  • Page 4 REPLACEMENT PARTS ............................... 98 MAINTENANCE ................................99 APPENDIX................................101 ................................101 MAINTENANCE LOG ................................102 WARRANTY POLICY P a g e...

  • Page 5: Safety Info And Warnings

    SAFETY INFO AND WARNINGS P a g e...
  • Page 6 P a g e...

  • Page 7: Flare Fireplaces - Frameless In Every Way

    FLARE FIREPLACES – FRAMELESS IN EVERY WAY Flare Fireplaces is where innovation, quality and luxury come together to form new ideas. By combining superior raw materials, contemporary design, creative technology and a frameless way of thinking, we have created a full line of direct-vent fireplaces that are luxurious, simple to operate, and efficient.

  • Page 8: Manual Model List & Information

    Flare Fireplaces should only be connected to M&G DuraVent or ICC 4x6 or 5x8 venting system . Refer to the specific appliance model and size to determine vent size (Gas specification table) and chimney pathway requirements (Chimney path installation &...

  • Page 9: Fireplace Operation

    FIREPLACE OPERATION REMOTE CONTROL INSTRUCTIONS P a g e...
  • Page 10 10 | P a g e...
  • Page 11 11 | P a g e...
  • Page 12 12 | P a g e...

  • Page 13: Receiver And Remote Batteries

    RECEIVER AND REMOTE BATTERIES Batteries – Remote 2 x AAA (alkaline recommended). • • Low battery indicator on handsets with display. • Battery replacement is recommended after 2 years. Batteries – Receiver • 4 x 1.5 V “AA” (alkaline ONLY). •...

  • Page 14: Wall Switch Optional

    WALL SWITCH – OPTIONAL The Wall Switch can be used to control your fireplace. Following operation can be done from the wall switch: • Turn On fireplace. • Turn Off fireplace. Increase the flame height. • • Decrease the flame height. Note that the thermostat and programming functions are not available with the wall switch.

  • Page 15: Media Arrangements

    MEDIA ARRANGEMENTS Flare Fireplace can be equipped with different media types. Follow the instruction below for information on how to add and arrange media in your Fireplace: • Do not place any type of media on the pilot or in front of the pilot. Keep 1” distance from the pilot to allow correct operation of the pilot.

  • Page 16: Safety Screen Removal

    SAFETY SCREEN REMOVAL Follow the instruction below for safety screen removal. The barrier is designed to reduce the risk of burns from the hot viewing glass and is provided with this appliance. It must remain installed for the protection of children and other at-risk individuals.

  • Page 17: External Glass First Time Removal Double Glass Fireplace

    EXTERNAL GLASS - FIRST TIME REMOVAL – DOUBLE GLASS FIREPLACE Note: Suction cups are needed to remove the glass. • This step is only applicable for first time external glass removal during installation, before the wall has been finished around the fireplace. •...

  • Page 18: External Glass Removal Double Glass Fireplace

    EXTERNAL GLASS REMOVAL – DOUBLE GLASS FIREPLACE Follow the procedure below to remove and install back the fireplace external glass (double glass fireplace configuration). Note: Suction cups are needed to remove the glass. Warning! Turn off the fireplace, and allow time for the unit to cool before proceeding. Caution: The glass is very fragile, and should be handled with care.

  • Page 19: Internal Glass Removal

    INTERNAL GLASS REMOVAL Follow the procedure below to remove and install back the fireplace internal ceramic glass (double glass fireplace configuration). Note: Suction cups are needed to remove the glass. Warning! Turn off the fireplace, and allow time for the unit to cool before attempting to remove the glass. : The ceramic glass is very fragile, and should be handled with care.
  • Page 20 Step 3 Step 4-1 Step 4-2 When putting back the glass, DO NOT overtighten the bolts or glass may break • Use step 4 – 1 for putting the glass back. • Glass trim screws should be closed hand-tight. DO NOT overtighten the bolts or glass may break. 20 | P a g e...

  • Page 21: Reflective Back Install

    REFLECTIVE BACK INSTALL The Flare Fireplace can be ordered with reflective ceramic glass at the back. The ceramic glass is tinted black to create a reflection when the fireplace is running. The ceramic glass will enhance and protect the fireplace look and is very easy to clean.

  • Page 22: Installation Steps

    INSTALLATION STEPS 1. Prior to starting the installation, make sure you read and understand all WARNING information in the manual. Do not start the installation if you are not clear about any of the installation related subjects. 2. Determine the following: The vent system configuration to be used based on the fireplace location.

  • Page 23: Installation Preparation

    INSTALLATION PREPARATION FIREPLACE UNPACKING Follow the instructions below for unpacking the unit: Check the packing and confirm there is no external damage. If damage exists, please notify Flare Fireplaces • immediately. • Remove the top wood studs and pull the external carton box up.

  • Page 24: Fireplace Telescopic Legs Setup

    FIREPLACE TELESCOPIC LEGS SETUP The fireplace legs will need to be set up once box is removed. The legs can be configured so that the bottom of the glass will be between 10”-19” above the floor. This means the bottom of the fireplace will be 4”-13” above the floor. Follow the steps below for telescopic legs setup prior to final positioning of the fireplace.

  • Page 25: Leg Setup For Front And See Through Units

    LEG SETUP FOR FRONT AND SEE THROUGH UNITS • Step 1 - Release the 3 screws from the leg. • Step 2 – Extend the telescopic leg to the desired length, minimum 4” (That will set the fireplace 10” from the bottom of the glass to the floor).

  • Page 26: Leg Setup For Corner Units

    LEG SETUP FOR CORNER UNITS Included are 4 screws, 2 adjustable legs, 1 foot for fine tuning, and 1 special wrench for adjusting the feet while the fireplace is standing. First, identify the correct order to connect the legs. The first adjustable leg that attaches to the fireplace has •...

  • Page 27: Unpacking Control Unit And Accessories

    UNPACKING CONTROL UNIT AND ACCESSORIES Unpack the gas valve, receiver, control module (for double glass units) and accessories (remote, power adapter & wall switch). • Place accessories (white bag) in a secure location. • The control unit (gas valve and receiver) is attached to the fireplace on an “umbilical cord”. Once fireplace is moved to its final location the control unit can be put close to the service access door.
  • Page 28 Gas valve and receiver: Control module for double glass units. Either: 28 | P a g e...

  • Page 29: Fireplace Positioning

    FIREPLACE POSITIONING Once Fireplace has been set to the upright position, it can be moved to its final installation location. Make sure the control unit is secure and not dragging on the floor during transport and positioning. • • Unit should remain on the pallet during transport inside the site location. •...

  • Page 30: Fireplace Electrical Connection

    FIREPLACE ELECTRICAL CONNECTION The Flare Fireplaces line uses electronic pilot ignition and requires a power source to operate with the following options: Safety screen units • Option 1 - Battery powered: 4 x AA Alkaline battery installed inside the fireplace receiver.
  • Page 31 Double glass unit Connect the Control Board as labeled on the side or as shown in the picture below. Connect items 1-5 on the Control Module with their corresponding plugs coming from the fans and receiver. • 1 – Fan Harness •...
  • Page 32 NOTE: • Double glass fireplace should not be installed with AA batteries inside the receiver. The electrical line to the fireplace must supply 120 Volts, 60 Hz, and 15 Amps (maximum draw). A dedicated • circuit for the fireplace is recommended. •...

  • Page 33: Led Lights

    LED LIGHTS The Flare Fireplaces can be ordered with optional multi-color interior RGB LED lighting or warm white LED. The lights allow perfect flames to be viewed across a bed of illuminated crushed glass. RGB LED – Multi color option controlled by a remote control for color selection. Once the color has been selected by the operator, next time LED is turn use, system will remember and maintain color selected.

  • Page 34: Led Light Install And Power

    LED LIGHT INSTALL AND POWER It is best if LED lights are connected and tested during the initial stages of installation in order to allow easy access under the unit (before the wall finishing material is done). Testing the LED light requires a 110V power source. Installation steps: 1.
  • Page 35 LED CONTROLLER AND REMOTE Product Specification The Flare high-performance RGB LED touch remote controller, adopting the most advanced PWM control technology, controlling all RGB LED products with 4 lines of circuits (COMMON ANODE), owning 640 thousand colors & 20 automatic changing modes to choose from. MATERIAL 110x52x20mm POWER...
  • Page 36 Mode selection and remote BRIGHTNESS NUMBER MODE STATE SPEED STATE STATIC WHITE ADJUSTABLE UNADJUSTABLE WHITE COLOR GRADUAL CHANGES ADJUSTABLE ADJUSTABLE ALL COLORS GRADUAL CHANGES ADJUSTABLE ADJUSTABLE RED/GREEN/BLUE 3 COLORS GRADUAL CHANGE ADJUSTABLE ADJUSTABLE 7 COLORS JUMP TO CHANGE ADJUSTABLE ADJUSTABLE 3 COLORS JUMP TO CHANGE ADJUSTABLE ADJUSTABLE...

  • Page 37: Vent Termination

    VENT TERMINATION Framing for vents in combustible walls and ceilings: When passing through combustible walls and ceilings, framing will depend on the type of vent installation -- horizontal or vertical. Ensure that the insulation is kept clear of the vent pipe using either a wall thimble or an attic insulation shield.

  • Page 38: Vent And Fireplace Size

    Install wall shield and ceiling firestops as specified. VENT AND FIREPLACE SIZE Size Vent Size Flare 25 Flare 30 Flare 45* 5x8 Or 4x6 * Flare 50 Flare 60 Flare 70 Flare 80 Flare 100 *Flare-RD-45 is shipped with 5x8 vent. All other Flare 45 are shipped out with 4x6 vent...
  • Page 39 VERTICAL TERMINATION See the table on the previous page for minimum cutout dimensions or frame openings around wall venting. Make sure clearances to combustible material are maintained based on vent part used. Note: size of vents depends upon specific fireplace and cutout sizes vary according to the DuraVent or ICC part number used. 39 | P a g e...
  • Page 40 Minimum height from roof lowest discharge opening Vertical Vent Termination Opening/Framing will depend on the part used. See table above or vent installation manual. • Minimum 24” horizontal clearance to any surface (such as an exterior wall) for vertical terminations 40 | P a g e...
  • Page 41 Multiple terminations HORIZONTAL TERMINATION A minimum distance of 18 inches should be kept between multiple horizontal terminations. See the table on page 32 for minimum cutout dimensions or frame openings around wall venting. Make sure clearances to combustible material are maintained based on vent part used. Note: size of vents depends upon specific fireplace and cutout sizes vary per the DuraVent part number used.
  • Page 42 Vent termination clearances *12 inches (30 cm) min. Clearances above grade, veranda, porch, deck, or balcony *12 inches (30 cm) min. Clearance to window or door that may be opened 12 inches (30 cm) min. Clearance to permanently closed window recommended to prevent condensation on window 30 inches (76 cm) min.
  • Page 43 *12 inches (30 cm) min. Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance *6 feet (1.8 m) min. Clearance to a mechanical air supply inlet *7 feet (2.1 m) min. ^ Clearance above paved side-walk or a paved driveway located on public property **30 inches (76 cm) min.

  • Page 44: Vent Restrictor Setup

    Vent restrictor should be closed if the flame has the following characteristics: • Flame height is low. • Flame has excessive movement Document any change to the restrictor setting. Contact Flare Fireplaces for support if needed. 44 | P a g e...

  • Page 45: Chimney Path Installation And Planning

    Two 45º elbows may be used in place of one 90º elbow. • The tables represent the manufacturer’s guideline based on testing and design. Additional external factors may affect the restrictor choice needed. If flame appears to be not typical, please contact Flare Fireplaces for restrictor size recommendations. •...

  • Page 46: Flare 25

    FLARE 25 Suitable for all Flare 25 appliances: Flare Front 25, Flare See-Through 25, Flare Double Corner 25, Flare Left Corner 25, Flare Right Corner 25. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 47 FLARE 25H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 48: Flare 30H

    FLARE 30H Suitable for all Flare 30 appliances: Flare Front 30, Flare See-Through 30, Flare Double Corner 30, Flare Left Corner 30, Flare Right Corner 30, Flare Room Definer 30. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 49 FLARE 30H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 50: Flare 45/45H

    FLARE 45/45H Suitable for all Flare 45/45H appliances: Flare Front 45/45H, Flare See-Through 45/45H, Flare Double Corner 45/45H, Flare Left Corner 45/45H, Flare Right Corner 45/45H, Flare Room Definer 45/45H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 51 FLARE 45/45H– CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 52: Flare 50/50H

    FLARE 50/50H Suitable for all Flare 50/50H appliances: Flare Front 50/50H, Flare See-Through 50/50H, Flare Double Corner 50/50H, Flare Left Corner 50/50H, Flare Right Corner 50/50H, Flare Room Definer 50/50H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 53 FLARE 50/50H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 54: Flare 60/60H

    FLARE 60/60H Suitable for all Flare 60/60H appliances: Flare Front 60/60H, Flare See-Through 60/60H, Flare Double Corner 60/60H, Flare Left Corner 60/60H, Flare Right Corner 60/60H, Flare Room Definer 60/60H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 55 FLARE 60/60H– CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 56: Flare 70/70H

    FLARE 70/70H Suitable for all Flare 70/70H appliances: Flare Front 70/70H, Flare See-Through 70/70H, Flare Double Corner 70/70H, Flare Left Corner 70/70H, Flare Right Corner 70/70H, Flare Room Definer 70/70H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 57 FLARE 70/70H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 58: Flare 80/80H

    FLARE 80/80H Suitable for all Flare 80/80H appliances: Flare Front 80/80H, Flare See-Through 80/80H, Flare Double Corner 80/80H, Flare Left Corner 80/80H, Flare Right Corner 80/80H, Flare Room Definer 80/80H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 59 FLARE 80/80H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 60: Flare 100/100H

    FLARE 100/100H Suitable for all Flare 100/100H appliances: Flare Front 100/100H, Flare See-Through 100/100H, Flare Double Corner 100/100H, Flare Left Corner 100/100H, Flare Right Corner 100/100H, Flare Room Definer 100/100H. Length X - Effective Horizontal Length Y - Effective Vertical Length Y Axis Parameters A –...
  • Page 61 FLARE 100/100H – CHIMNEY PATHS EXAMPLES Parameters Calculation X - Effective Horizontal Length 6.5m / 19.5ft. Y - Effective Vertical Length 7.6m / 23ft. Restrictor Level By Table 1: Level 1 Y Axis Parameters A – First Flue length (1 m / 3 ft. min) 1m / 3ft.

  • Page 62: Power Venting

    For unsupported vent routes (based on the gravity vent tables above) a power venting solution is required. The power venting solutions allow Flare Fireplaces to operate in vent conditions that would not be possible without the motor unit. See the Flare Power Vent Installation Manual for more specific instructions.
  • Page 63 Instructions: When using the power vent system, direction of flow through the vents can be up, down, horizontal or diagonal since the system is sealed and vacuumed. The vent restrictor level should be set based on length in feet, number of elbows and the vent termination.
  • Page 64 Electrical connection to the PV system • The PV system will need to be connected to an AC 110V 15A power outlet. The PV system is connected to the Fireplace control system with a low voltage (6V) 3 wire cable - labeled •...

  • Page 65: Gas Installation

    GAS INSTALLATION GENERAL WARNING! Risk of Fire or Explosion! All gas handling and installation should be performed by qualified service technician or installer. Gas build-up during line purge could ignite. Ensure adequate ventilation. Make sure there are no ignition sources/sparks or open flames. Do not change the gas valve setting! The fireplace gas valve has been preset at the factory.

  • Page 66: Orifice Size

    Have the gas supply line installed in accordance with local codes, if any. If not available, follow ANSI 223.1. Installation should be done by a qualified installer approved and/or licensed as required by the locality (in the Commonwealth of Massachusetts installation must be performed by a licensed plumber or gas fitter). ORIFICE SIZE Flare Fireplace appliances are tested and approved for installations at elevations of 0–4500 feet (0–1372 meters) above sea level using the standard burner orifice sizes.

  • Page 67: Gas Valve Access Door

    GAS VALVE ACCESS DOOR The Flare Fireplace gas valve and control system is on an “umbilical cord” that can be stretched up to 50” from the middle of the fireplace and be put next to the access door location. Do not place the gas valve or controls above the level of the burner. If the fireplace is to set low on the floor, the controls must be placed outside the non-combustible zone or insulated from the heat from the fireplace.

  • Page 68: Commonwealth Of Massachusetts

    COMMONWEALTH OF MASSACHUSETTS State of Massachusetts Carbon Monoxide Detector/Vent Terminal Signage Requirements for all side wall horizontally vented gas fuelled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied: INSTALLATION OF CARBON MONOXIDE DETECTORS.

  • Page 69: Flare Fireplaces - Double Glass

    OVERVIEW With an effort to make our fireplaces safer, Flare Fireplaces is offering our full line of products with a safety double glass technology. The Flare Fireplace double glass is built with two layers of glass. The design allows cool air to flow between the two layers, with the help of built-in blowers, which significantly lowers the temperature of the external glass making it safe for a brief touch.

  • Page 70: Power Requirements

    The following sizes MUST be maintained for the lower air intake: For fireplaces sized 60” / 150 cm and above - vent area must be at least 70 square inches. For fireplaces sized 50” / 125 cm and below - vent area must be at least 50 square inches. For See Through and Room Definer fireplaces, the air intake requirements are double.

  • Page 71: Tv Install - Flat Example

    TV INSTALL – FLAT EXAMPLE Maintain open Air flow between the fireplace and drywall. Make sure cables or any other Warning! – materials are not blocking hot air flow. 71 | P a g e...

  • Page 72: Tv Install - L Type Example

    TV INSTALL – L TYPE EXAMPLE Maintain Open Air flow between the fireplace and drywall. Make sure cables or any other Warning! – materials are not blocking hot air flow. 72 | P a g e...

  • Page 73: Tv Install Recess - 45 Dgree Elbow On Top Of The Unit

    TV INSTALL RECESS – 45 DGREE ELBOW ON TOP OF THE UNIT When planning a TV recess, clearance to the vent is critical and needs to be a minimum of 1” to the noncombustible recessed wall. This is to prevent heat from the vent radiating to the recessed wall and being transferred to the TV. Due to the central location and diameter of the vent (8 inches), one of the following solutions may be necessary to maintain the clearance requirement: 1.

  • Page 74: Tv Install Without Recess Mantel Requirements

    TV INSTALL WITHOUT RECESS – MANTEL REQUIREMENTS 74 | P a g e...

  • Page 75: Clearances

    CLEARANCES GENERAL INFORMATION AND STEPS 1. Floor clearance – The minimum clearance to floor is 1 inch, although the telescopic legs retract to 4 inches below the fireplace. This means the legs may be set into the floor a maximum of 3 inches while maintaining the minimum clearance to the floor.
  • Page 76 6. Fireplace shelf enclosure – The minimum height to the inside of a shelf above the fireplace is 6 inches (12 inches above the glass). The shelf must be built with non-combustible material at least 5/8” thick. Due to the low size of shelf enclosure, it is recommended to build the enclosure using a Skamol board.
  • Page 77 10. Minimum clearance to sides and back – Combustible – Clearance to combustible material at the back or sides of the fireplace, below the non-combustible line is 8” . Please note this does not include minimum clearance directly above the fireplace inside the chase. Please see items starting 12. 11.

  • Page 78: Clearances Specification

    13. Finishing around front of the fireplace Non-combustible finishing material (i.e. cement board, brick, stone, tile & 5/8-inch Type X fire rated drywall) MUST be used to finish around the front of the appliance (in the non-combustible area). Covered combustible material, below the non-combustible line, can be used to finish around the fireplace, fireplace if the proper distance from the fireplace is maintained.

  • Page 79: Mantel Clearance

    • James Hardie HardieBacker® 1/2” Cement Board • 5/8” Type X fire rated drywall. Type X gypsum board must comply with ASTM C1396 specification. Type X fire rated gypsum board can be used around the fireplace or at the back as a non-combustible material. Combustible Materials Specification Materials made of or surfaced with wood, compressed paper, plant fibers, plastics, or other material that can ignite and burn, whether flame-proofed or not, or plastered or unplastered shall be considered combustible materials.

  • Page 80: Heat Releases

    HEAT RELEASES All Flare Fireplaces (both safety screen and double glass units) require heat releases for warm air to flow back into the room. This controls the temperature of the surrounding walls, keeping them relatively cool. Top Hot Release - The release/ outlet for hot airflow from the wall enclosure MUST remain open. The outlet must be at the top part of the enclosure but not necessarily at the front, so long as the measurements below are maintained.

  • Page 81: Examples Of Heat Releases

    EXAMPLES OF HEAT RELEASES 81 | P a g e...

  • Page 82: Flare Front, See Through, And Corner Fireplace Clearance

    FLARE FRONT, SEE THROUGH, AND CORNER FIREPLACE CLEARANCE FLAT – SIDE AND ISOMETRIC VIEW – Maintain open Air flow between the fireplace and drywall. Make sure cables or any other materials are Warning! not blocking hot air flow. 82 | P a g e...
  • Page 83 A. Top Vent system - Hot Airflow outlet from the wall enclosure MUST remain open. The outlet must be at the top part of the enclosure but not necessarily at the front, as long as the measurements below are maintained. For fireplaces sized 60”...

  • Page 84: L Shape - Side And Isometric View

    L SHAPE – SIDE AND ISOMETRIC VIEW Maintain open Air flow between the fireplace and drywall. Make sure cables or any other Warning! – materials are not blocking hot air flow 84 | P a g e...
  • Page 85 A. Top Vent system - Hot Airflow outlet from the wall enclosure MUST remain open. For Flare See Through fireplace, open vent must exist in both sides of the glass. The outlet must be at the top part of the enclosure but not necessarily at the front, as long as the measurements below are maintained.

  • Page 86: Flare Room Definer Fireplace Clearance

    FLARE ROOM DEFINER FIREPLACE CLEARANCE FLAT – SIDE AND ISOMETRIC VIEW Maintain open Air flow between the fireplace and drywall. Make sure cables or any other materials are Warning! – not blocking hot air flow. 86 | P a g e...
  • Page 87 A. Top Vent system - Hot Airflow outlet from the wall enclosure MUST remain open. For Flare See Through fireplace, open vent must exist in both sides of the glass. The outlet must be at the top part of the enclosure but not necessarily at the front, as long as the measurements below are maintained.

  • Page 88: L Shape - Side And Isometric View

    L SHAPE – SIDE AND ISOMETRIC VIEW Maintain open Air flow between the fireplace and drywall. Make sure cables or any other Warning! – materials are not blocking hot air flow 88 | P a g e...
  • Page 89 A. Top Vent system - Hot Airflow outlet from the wall enclosure MUST remain open. For Flare See Through fireplace, open vent must exist in both sides of the glass. The outlet must be at the top part of the enclosure but not necessarily at the front, as long as the measurements below are maintained.

  • Page 90: Indoor/Ouutdoor Kit

    INDOOR/OUUTDOOR KIT Following installation information is used for the Flare Fireplace outdoor kit. The outdoor window kit can only be used with Flare Front and Flare See Through. The Flare outdoor kit is install like a window. The fireplace is then installed next to the outdoor window kit .
  • Page 91 Make sure the fireplace is fully turned off when attempting to clean the front of the fireplace (including pilot). • Use the Flare architechital guide for information on the window size and opening: • http://flarefireplaces.com/portfolio-items/flare-outdoor/ • 91 | P a g e...
  • Page 92 • All studs and surrounding should follow the fireplace clearances and non combustible requirements . • The outdoor window kit should be sealed with noncombustible tape prior to covering with brick or stucco 92 | P a g e...

  • Page 93: Product Dimensions & Specifications

    PRODUCT DIMENSIONS & SPECIFICATIONS For updated product dimensions and framing information please use our webpage product page at Flarefireplaces.com. BURNER DIMENSIONS Burner Type Size(Metric) Size(Imperial) 14” 21 11/16” 31 12/16” 1018 40 1/16” 1272 50 1/16” 1522 59 15/16” 1734 68 4/16”...

  • Page 94: Home Automation

    HOME AUTOMATION The Flare Fireplace can be operated through an external source such as a smart home (home automation) system by using the 5-pin connector on the receiver. The Flare Home Automation Cable (below) must be used between the Flare receiver and the home automation system.

  • Page 95: Electric And Control

    ELECTRIC AND CONTROL ELECTRIC DIAGRAM Optional 6V power supply and remote 95 | P a g e...

  • Page 96: Diagram - Double Glass And Pv

    DIAGRAM – DOUBLE GLASS AND PV NOTE: DSW1 and DSW2 contain bypass switches for each fan, the Power Vent fan, and a master bypass. In the example shown above, only 3 fans are connected and their bypasses are turned OFF. The main bypass is also turned off.

  • Page 97: Electric Diagram Pv System

    ELECTRIC DIAGRAM – PV SYSTEM Ports 49-47 are connected to J6 on fireplace main board 97 | P a g e...

  • Page 98: Replacement Parts

    REPLACEMENT PARTS See below for flare replacement part list. Please contact your fireplace dealer in order to purchase any replacement part. • • Please make sure to provide the description and part number. • Please make sure to use a certified installer for any service related to your fireplace. 98 | P a g e...

  • Page 99: Maintenance

    MAINTENANCE WARNING! • It is recommended that a qualified service technician perform a routine inspection at the beginning of each heating season. • Disconnect power before attempting maintenance or repair of the fireplace. • Installation and maintenance must be performed by an authorized qualified installer, service agency or gas supplier.
  • Page 100 Pilot Maintenance • Visually inspect the pilot flame. The pilot flame should be always present when the fireplace is in operation. • Make sure the pilot flame has two flame tips pointing to the flame sensor (thermocouple) and to the center of the burner.

  • Page 101: Appendix

    APPENDIX MAINTENANCE LOG Flare Fireplaces – Maintenance log Following document should be used by the service technician. A copy should be kept with the technician and owner for future reference Service Date: ___________________ Unit Information Model Type and Size: ____________________________________________________...

  • Page 102: Warranty Policy

    Warranty coverage begins on the date of original purchase. It is the responsibility of the installer to ensure the appliance is firing as per the rating plate. Any part that is found in our judgment to be defective shall be repaired, replaced or refunded at Flare Fireplaces option.
  • Page 103 Flare Fireplaces is not responsible for televisions, mantles, surrounds or finishing material around the fireplace. Flare Fireplaces may at its discretion discharge all obligations by refunding the wholesale price of the defective part. The Limited Warranty covers only parts and labor as provided above. Flare Fireplaces will not be responsible for materials, components or construction, which are not manufactured or supplied by Flare Fireplaces or for the labor necessary to install, repair or remove such materials, components or construction.

This manual is also suitable for:

Flare 25hFlare 30hFlare 45Flare 45hFlare 50hFlare 50 ... Show all

Table of Contents
