MAJORITY LITTLE SHELFORD Instruction Manual

Portable digital & fm radio
Hide thumbs Also See for LITTLE SHELFORD:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
MAJORITY
LITTLE SHELFORD
Portable Digital & FM Radio
LSH-DAB-DUK
Instructions Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LITTLE SHELFORD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MAJORITY LITTLE SHELFORD

Summary of Contents for MAJORITY LITTLE SHELFORD

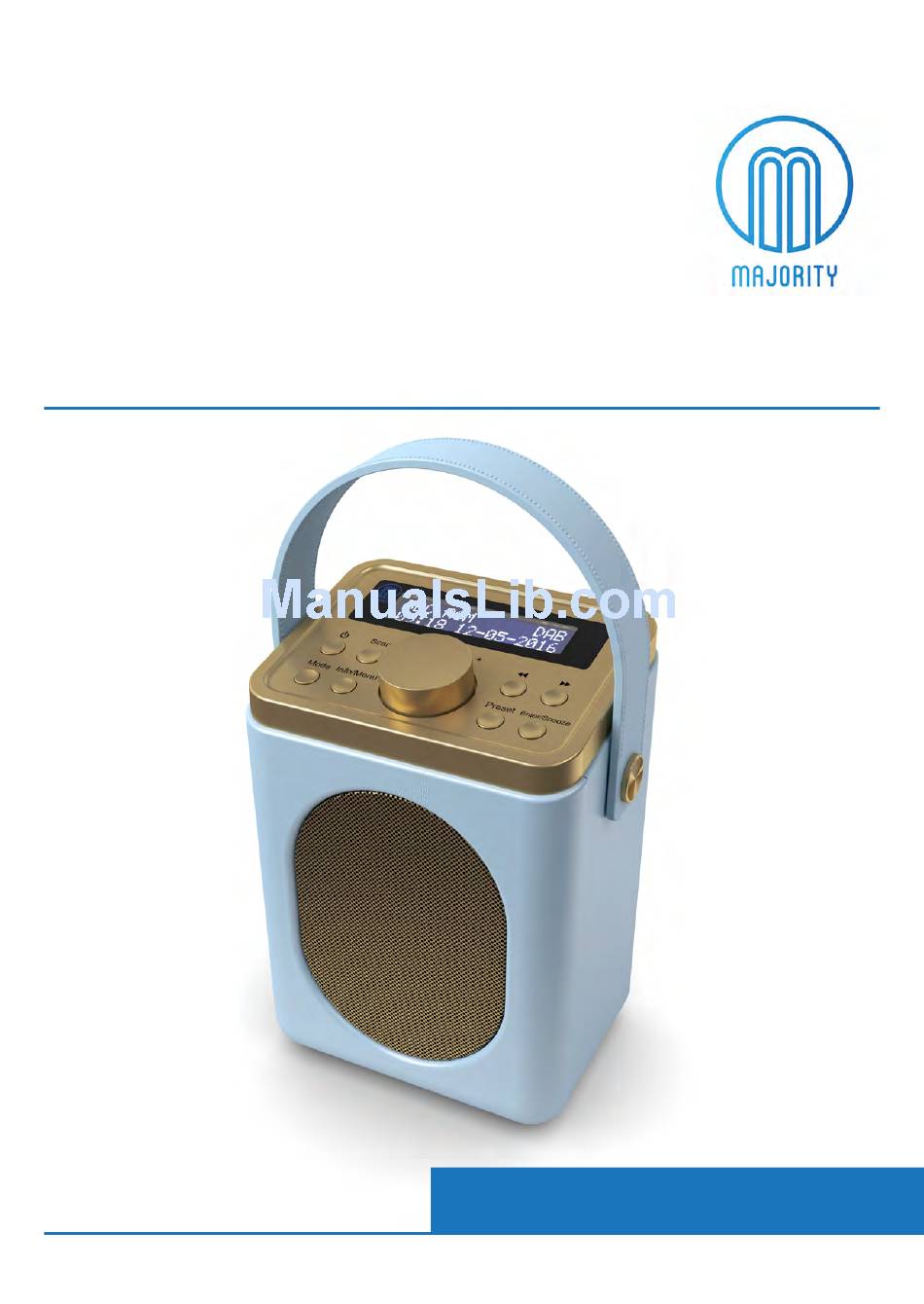

  • Page 1 MAJORITY LITTLE SHELFORD Portable Digital & FM Radio LSH-DAB-DUK Instructions Guide...

  • Page 2: Table Of Contents

    Contents Box Contents ������������������������������������������������������������� Controls And Functions ���������������������������������������������� Instructions Guide ���������������������������������������������������� Basic Operation �������������������������������������������������������� DAB/DAB+ Mode ������������������������������������������������������ Setting up DAB mode ������������������������������������������������ FM Radio ������������������������������������������������������������������� Bluetooth Mode ������������������������������������������������������� Clock and Date Setting ��������������������������������������������� Dual Alarm ��������������������������������������������������������������� Alarm Setting ����������������������������������������������������������� Alarm functions and Snooze ������������������������������������ Sleep Timer ��������������������������������������������������������������...

  • Page 3: Box Contents

    Box Contents What’s in the Box? Majority Little Shelford DAB/DAB+ Radio Clock UK Standard Plug Power Supply User Guide...

  • Page 4: Controls And Functions

    Controls And Functions Top View / Control Buttons Scan Mode Info/Menu Preset Enter/Snooze Power/Standby Info/Menu Scan Volume Dial -/+ Previous Preset Next Enter/Snooze Mode...
  • Page 5 Controls And Functions Back View / Connections 10. On/Off Power Switch 13. Battery compartment 11. DC Power Input 14. Aerial 12. 3.5mm Earphone Jack...

  • Page 6: Instructions Guide

    Instructions Guide Basic Operation Please note all (Ref.) refer to the Controls and Functions mapping guide on pages 1-3. Starting up your radio Plug the adaptor connector into the back of the system labelled ‘DC in’ and turn the power on from the mains (Ref.11). Alternatively, insert 4 x AA batteries rather than using the above process for mains power.

  • Page 7: Dab/Dab+ Mode

    Instructions Guide DAB/DAB+ Mode Setting up DAB mode From the ‘Welcome to Digital Radio’ screen, click the ‘Standby’ button (Ref.1) and your radio will automatically scan for DAB stations. Once the scan is complete, all digital stations found will be stored on your radio.
  • Page 8 Instructions Guide Storing DAB Stations You can store up to 10 DAB radio stations. To store a station that you are currently playing: Press and hold the “Preset” (Ref.8) button, the display will show “Preset Store<x:(Empty)>” Press the ‘<< ‘ or ‘>>’ button (Ref.3 ) to change the “<1”...
  • Page 9 Instructions Guide DAB Station Information When on DAB mode, press the ‘Info/Menu’ (Ref.6) repeatedly to scroll through and display different program information: Signal Strength: Displays a signal bar with the strength of the current station. Signal Error: Provides details of the signal error rate. Channel and Frequency: Displays the station’s transmission channel number and frequency.

  • Page 10: Fm Radio

    Instructions Guide FM Radio FM Scan Press the “Mode” (Ref.5) button to switch to FM radio. The first time you do this, the FM frequency “87.5MHz” will be displayed on the screen. Fully extend the antenna. To auto scan, press the “Scan” (Ref.2) button. This will then start scanning up the frequency band and play the first station it finds with good signal.
  • Page 11 Instructions Guide Storing FM Stations You can store up to 10 FM radio stations. To store a station that you are currently playing: Press and hold the “Preset” (Ref.8) button, the display will show “Preset Store<x:(Empty)>” Press the ‘<<’ or ‘>>’ button to change the “<1” to the number you want to store the station as.
  • Page 12 Instructions Guide FM Station Information When on FM mode, press the ‘Info/Menu’ (Ref.6) repeatedly to scroll through and display different program information: PTY (Program Type): Shows the type and description of the program provided by the DAB station. Signal Strength: Displays a signal bar with the strength of the current station.

  • Page 13: Bluetooth Mode

    Bluetooth mode is selected. Go to Bluetooth settings on your device and ensure that it is switched on. “Majority Little Shelford” should then display in available devices. Select this option to connect to it and it should display “Connected”.

  • Page 14: Clock And Date Setting

    Instructions Guide Clock and Date Setting Manually Setting the Time Ensure the unit is in working mode (i.e. listening to DAB/FM Radio). Press and hold the Info/Menu button (Ref.6) for 1-2 seconds to open the ‘Set Menu’ option. Use the ‘<<’ or ‘>>’ (Ref.3 ) buttons to choose your option and select Time/Date by pressing ‘Enter/Snooze’...

  • Page 15: Dual Alarm

    Instructions Guide Dual Alarm Alarm Setting Ensure the unit is in working mode (i.e. listening to DAB/FM Radio). Press and hold the Info/Menu button (Ref.6) for 1-2 seconds to open the ‘Set Menu’ option. Scroll through using the ‘<<’ or ‘>>’ buttons (Ref.3 ) to find the ‘Alarm 1 Set’...

  • Page 16: Alarm Functions And Snooze

    Instructions Guide Alarm functions and Snooze Turn off the Alarm when sounding To turn off the Alarm 1 or Alarm 2 when it sounds, press any of the buttons on the display screen except the ‘Enter/Snooze’ button. This will then cancel the alarm set. If the alarm is set to be “Weekday”, “Weekend”...

  • Page 17: Sleep Timer

    Instructions Guide Sleep Timer Ensure the unit is in working mode (i.e. listening to DAB/FM Radio). Press and hold the Info/Menu button (Ref.6) for 1-2 seconds to open the ‘Set Menu’ option. Scroll through using the ‘<<’ or ‘>>’ buttons (Ref.3 ) to find the ‘Sleep Set’...

  • Page 18: Additional Functions

    Instructions Guide Additional Functions When the radio is turned on, press and hold the Info/Menu (Ref.6) button. This will open ‘Set Menu’ and display these settings: Factory Reset: Press the ‘<<’ or ‘>>’ button (Ref.3 ) in the Set Menu screen to scroll through to the sub-option of ‘Factory Reset’...

  • Page 19: Specifications

    Specifications Specifications DC 5V 1A (100-240V) Power Supply DAB 174-240MHz Frequency range: FM 87.5 MHz to 108 MHz 1*3W RMS Output : Screen: LCD display black background with white word Support Bluetooth: 2.1 + EDR specification support Power Supply and Batteries The unit is powered and charged by UK Standard Plug USB 5V 1A and is also portable when powered by 4 x AA batteries (not supplied).

  • Page 20: Safety Information

    Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus.
  • Page 21 www.majorityradios.co.uk...

This manual is also suitable for:

Lsh-dab-duk
