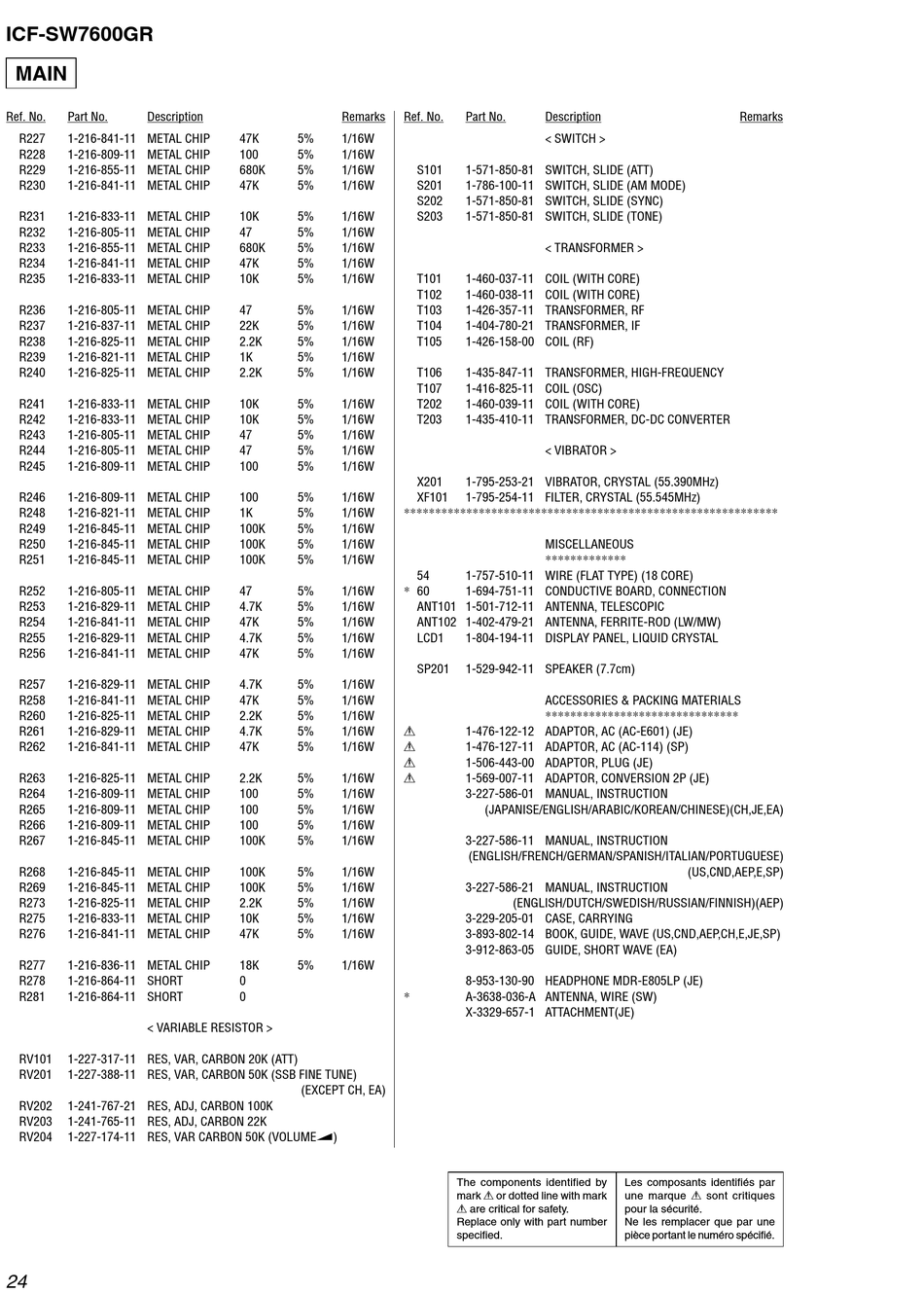

Sony ICF-SW7600GR Service Manual Page 24

Fm stereo/sw/mw/lw pll synthesized receiver.
Hide thumbs

Advertisement

ICF-SW7600GR
MAIN
Ref. No.
Part No.
R227
1-216-841-11 METAL CHIP
R228
1-216-809-11 METAL CHIP
R229
1-216-855-11 METAL CHIP
R230
1-216-841-11 METAL CHIP
R231
1-216-833-11 METAL CHIP
R232
1-216-805-11 METAL CHIP
R233
1-216-855-11 METAL CHIP
R234
1-216-841-11 METAL CHIP
R235
1-216-833-11 METAL CHIP
R236
1-216-805-11 METAL CHIP
R237
1-216-837-11 METAL CHIP
R238
1-216-825-11 METAL CHIP
R239
1-216-821-11 METAL CHIP
R240
1-216-825-11 METAL CHIP
R241
1-216-833-11 METAL CHIP
R242
1-216-833-11 METAL CHIP
R243
1-216-805-11 METAL CHIP
R244
1-216-805-11 METAL CHIP
R245
1-216-809-11 METAL CHIP
R246
1-216-809-11 METAL CHIP
R248
1-216-821-11 METAL CHIP
R249
1-216-845-11 METAL CHIP
R250
1-216-845-11 METAL CHIP
R251
1-216-845-11 METAL CHIP
R252
1-216-805-11 METAL CHIP
R253
1-216-829-11 METAL CHIP
R254
1-216-841-11 METAL CHIP
R255
1-216-829-11 METAL CHIP
R256
1-216-841-11 METAL CHIP
R257
1-216-829-11 METAL CHIP
R258
1-216-841-11 METAL CHIP
R260
1-216-825-11 METAL CHIP
R261
1-216-829-11 METAL CHIP
R262
1-216-841-11 METAL CHIP
R263
1-216-825-11 METAL CHIP
R264
1-216-809-11 METAL CHIP
R265
1-216-809-11 METAL CHIP
R266
1-216-809-11 METAL CHIP
R267
1-216-845-11 METAL CHIP
R268
1-216-845-11 METAL CHIP
R269
1-216-845-11 METAL CHIP
R273
1-216-825-11 METAL CHIP
R275
1-216-833-11 METAL CHIP
R276
1-216-841-11 METAL CHIP
R277
1-216-836-11 METAL CHIP
R278
1-216-864-11 SHORT
R281
1-216-864-11 SHORT
RV101
1-227-317-11 RES, VAR, CARBON 20K (ATT)
RV201
1-227-388-11 RES, VAR, CARBON 50K (SSB FINE TUNE)
RV202
1-241-767-21 RES, ADJ, CARBON 100K
RV203
1-241-765-11 RES, ADJ, CARBON 22K
RV204
1-227-174-11 RES, VAR CARBON 50K (VOLUMEw)
