Schematic Diagram - Main Board (1/2) - Sony ICF-SW7600GR Service Manual

Fm stereo/sw/mw/lw pll synthesized receiver.
Hide thumbs

Advertisement

ICF-SW7600GR

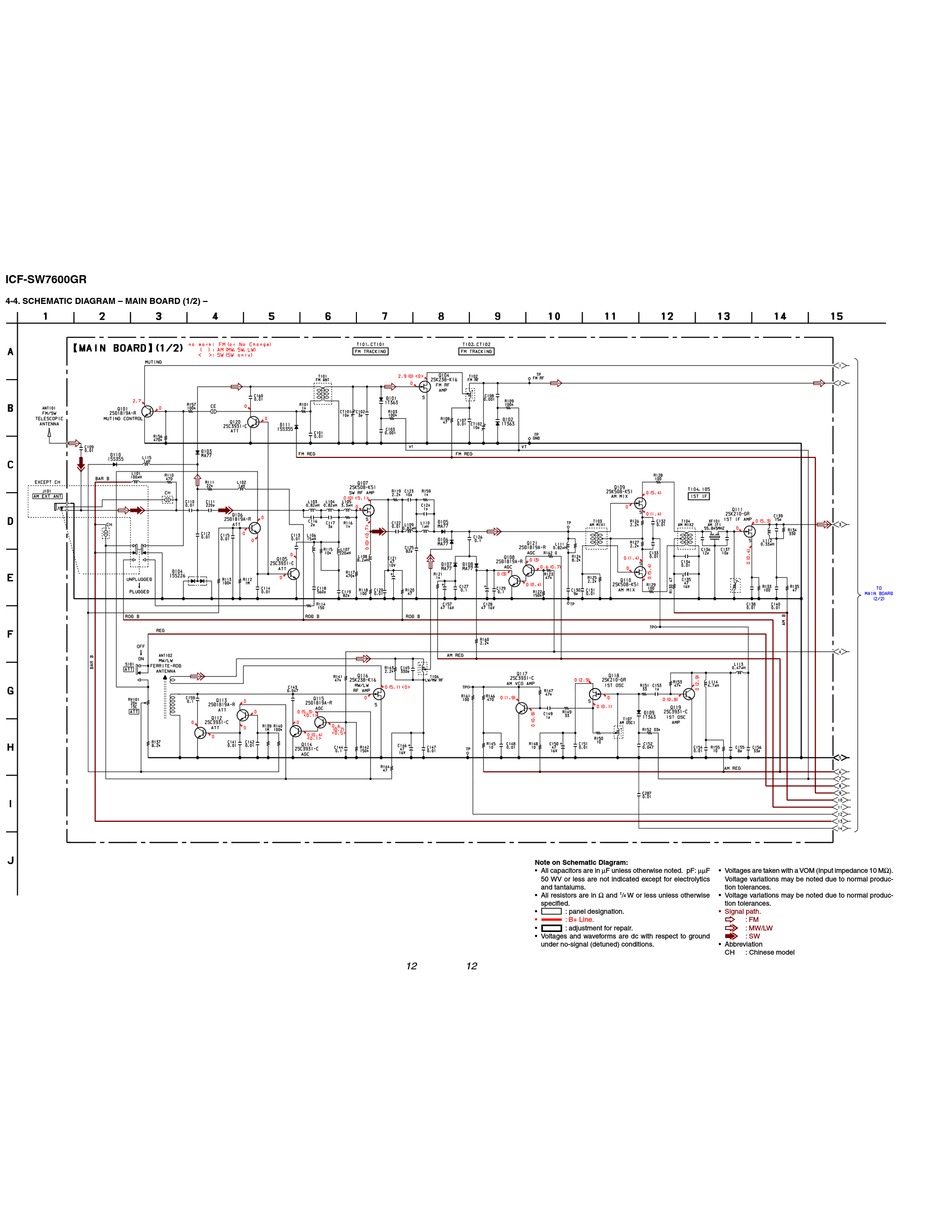

4-4. SCHEMATIC DIAGRAM – MAIN BOARD (1/2) –
Downloaded from
www.Manualslib.com
manuals search engine
Note on Schematic Diagram:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ω and
specified.
• C : panel designation.
• A : B+ Line.
• H : adjustment for repair.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
12
12
• Voltages are taken with a VOM (Input impedance 10 MΩ).
Voltage variations may be noted due to normal produc-
tion tolerances.
1
/
W or less unless otherwise
• Voltage variations may be noted due to normal produc-
4
tion tolerances.
• Signal path.
F
: FM
L : MW/LW
h : SW
• Abbreviation
CH
: Chinese model
