Configuration
Ethernet Configuration
To change the IP settings for a device, double-click on the entry in the main window or right-click
on it and select Configuration.

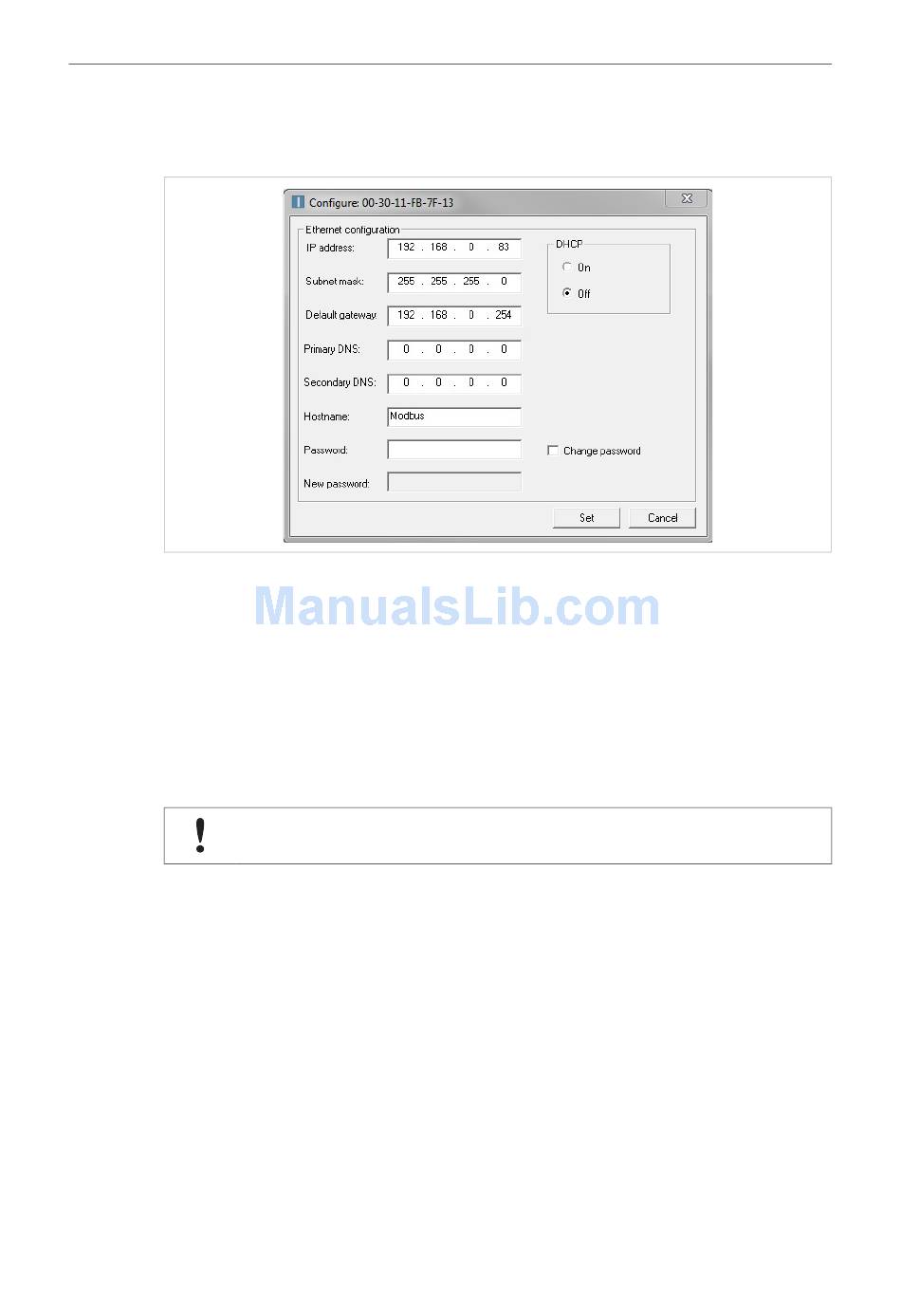

Fig. 14
Ethernet configuration
Notes
•
Do not enable DHCP if there is no DHCP server available on the network.
See also
•
You can add a name for the device in the Hostname field. Only characters a–z, A–Z, 0–9
and _ (underscore) are allowed.
•
The default password for authentication of the new settings is admin. To change the pass-
word, check the Change password box and enter the current password in the Password
field and the new password in the New password field.
Click Set to save the new settings. The device will be automatically restarted. The new settings
can be tested by opening a web browser and entering the IP address assigned to the device.
®
Anybus
Communicator
™
CAN PROFINET
IPconfig Settings, p. 21
For security reasons the default password should always be changed.
®
IRT (2.32) User Manual
20 (30)
SCM-1202-035 1.0
