T
h e Settling Time
M
eas urement procedu re req u ires the u se ο ! th e L eft
Plug-In mo de .
R
efer to Table 1-1
M
ainframe Com p atibility an d Table 1-
3 Plug-In Comp atib ility in Section 1, Gener al Info rmation to determine
w h et h e r modification is necessary .
R
efe r installation of modifications to qualified se r vice p e rso nnel .
Perfo rm
t
h e following
p
rocedure to
d
etermi ne the settling time . ( Refer to ti m e and
voltage
m easureme nt tech ni ques give n earlier.)
1 .
Provi de α signal f r om t he stepp er shaft enco der to CH 1 of the 5D10 and to t he
+ i nput of the 5Α 13 Ν Differential Compa rator. See F igure 3-9 fo r
5A13N
5D10
ρ
CO M PA RATO R Ι Ι
Ο Ι DIGITIZER
FR OM ST EPPER
SH AFT EN CODER
ΝΟΤΕ
Applications-5D10
5100 SER I E S
M
AI NFRAME
3696-72

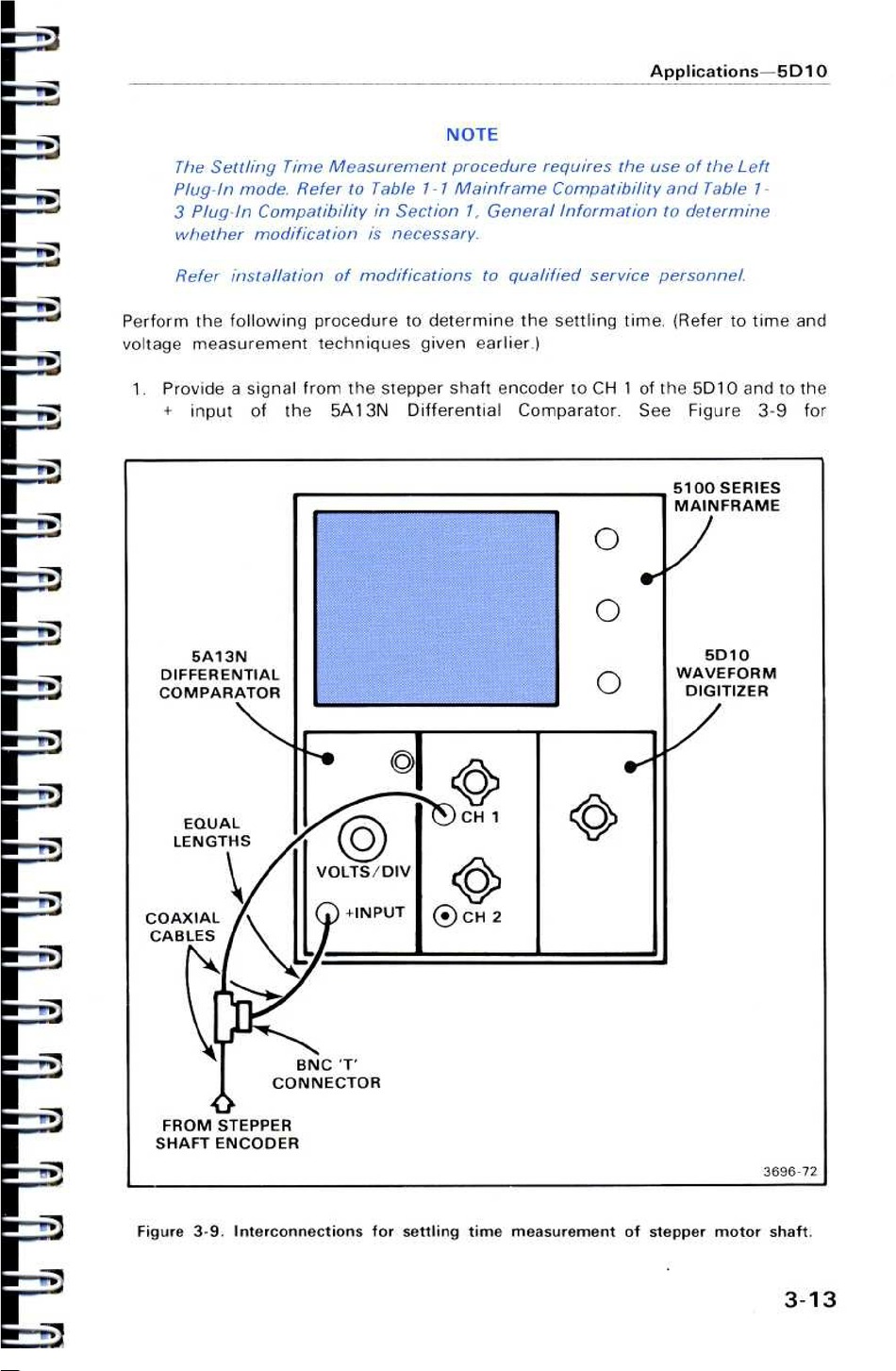

Figure 3-9 . I nte rco nnections for settli ng time measurement of steppe r motor sh aft.
