CAMTVI10
MULTI PROTOCOL CAMERA – HD-TVI / CVI / AHD / ANALOGUE
– OUTDOOR – DOME PTZ – ZOOM x18 – 1080P
USER MANUAL

Advertisement

Table of Contents
loading

Related Manuals for Velleman CAMTVI10

Summary of Contents for Velleman CAMTVI10

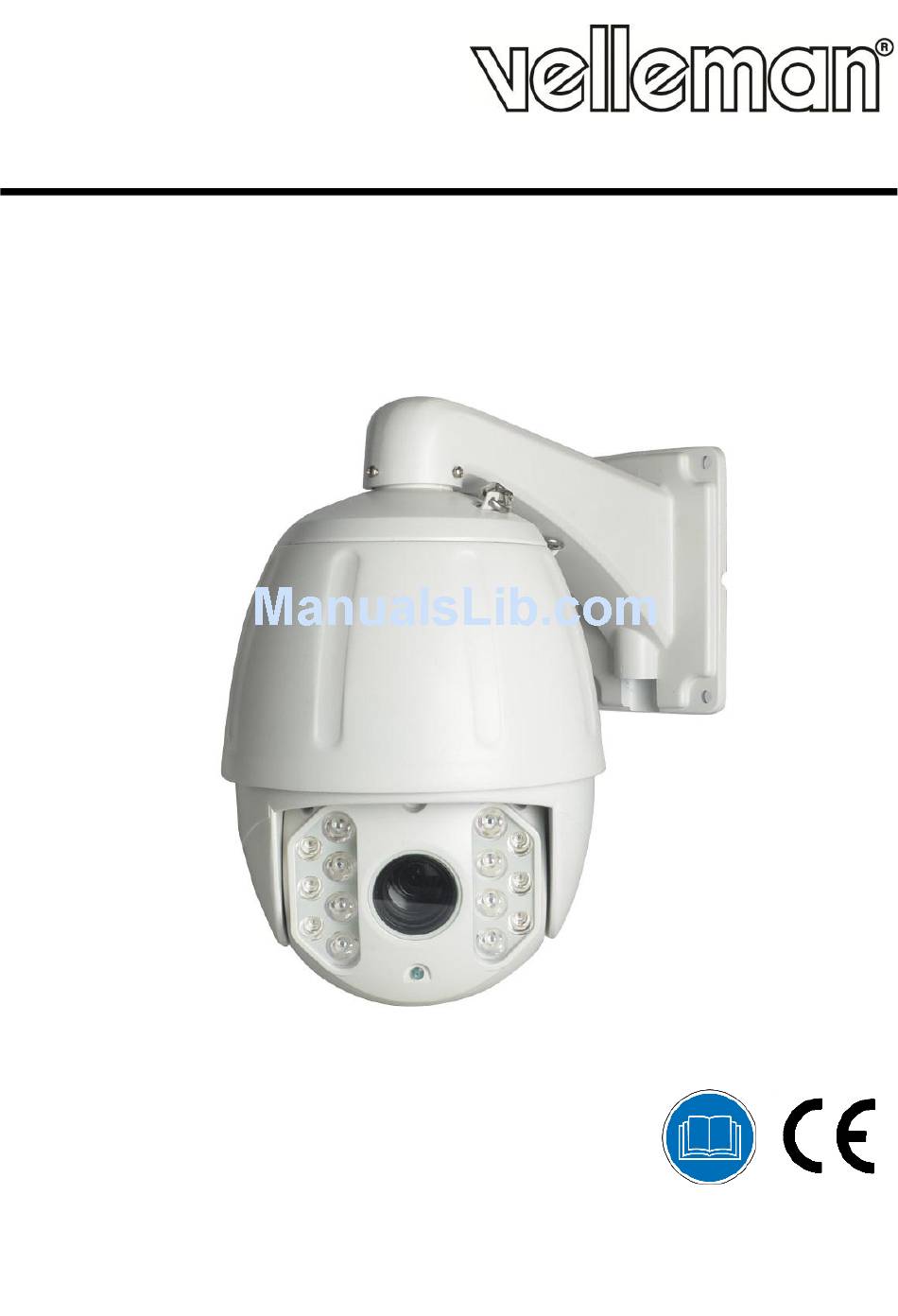

  • Page 1 CAMTVI10 MULTI PROTOCOL CAMERA – HD-TVI / CVI / AHD / ANALOGUE – OUTDOOR – DOME PTZ – ZOOM x18 – 1080P USER MANUAL...
  • Page 2 CAMTVI10 V. 02 – 18/07/2016 ©Velleman nv...

  • Page 3: Safety Instructions

    Respect the local environmental rules. If in doubt, contact your local waste disposal authorities. Thank you for choosing Velleman ® ! Please read the manual thoroughly before bringing this device into service.

  • Page 4: Installation

    CAMTVI10 Installation General Installation Guidelines Before proceeding to installing, make sure the mounting surface: is thick enough to securely install an expansion bolt can bear at least 4 times the weight of the dome and mounting bracket. Choose a location for the camera, keeping following guidelines in mind: do not install the camera in locations where extremely high or low temperatures or excessive vibrations may occur.
  • Page 5 CAMTVI10 Mounting Wall Mounting Use the mounting bracket to determine the position of the mounting holes. Drill the holes. Fix the mounting bracket onto the wall (mounting accessories not included). Proceed with the connection. Corner Mounting Use the corner bracket to determine the position of the mounting holes. Drill the holes.

  • Page 6: Operation

    CAMTVI10 Operation Glossary Alarm Linkage This dome camera supports four switch alarm inputs, one switch output and one digital output. The camera starts running a preset action as soon as it detects an alarm signal. Auto-Adaptive to Protocol and Module This dome camera will automatically adapt to the available protocol.

  • Page 7: Basic Operation

    CAMTVI10 Power-Off Memory The camera will automatically return to the status before the power interruption. Park Action The camera will automatically run a specific preset mode if it is not operated in the set time. Multilanguage OSD Menu The available on-screen languages are: English, German, Italian, French and Spanish.
  • Page 8 CAMTVI10 Menu V. 02 – 18/07/2016 ©Velleman nv...
  • Page 9 CAMTVI10 System <SYSTEM> ------------------------------------------------------- PROTOCOL AUTO DOME ID COMM 2400.N.8.1 VERSION TEMPERATURE EXIT  MFG: Max. 15 characters displayed.  PROTOCOL: Dome protocol.  DOME ID: Dome address.  COMM: In this example: 2400 (baud rate), N (check bit), 8 (data bit), 1 (start bit).

  • Page 10: Guard Tours

    CAMTVI10 8.2.2 IR Display <IR DISPLAY> ------------------------------------------------------- WORKING MODE AUTO TESTING TIME OUTPUT POWER 100% ILLUMINATION ON AMBIENT LIGHT IR SWITCH ZOOM EXIT  WORKING MODE: Select auto, black/white or color. Factory default is auto.  TESTING TIME: Set the night/day or day/bight switching time, ranging from 02 to 15.

  • Page 11: Park Action

    CAMTVI10 8.2.5 Pan Scan <PAN SCAN> <PAN SCAN> ------------------------------------------------ ------------------------------------------------ PAN SCAN SPEED RUNNING… INIT LEFT KEY TO EXIT RUNNING EXIT PAN: XXX TILT: XXX  PAN SCAN SPEED: Select the pan scan speed, ranging 1 to 64.  INIT: Re-initialisation. Scan speed and tilt degree will return to factory default settings.
  • Page 12 CAMTVI10  ALARM: Switch the alarm on or off.  PATROL TIME: Set the patrol time, ranging from 02 to 60.  ALARM LINKAGE: Switch the alarm linkage on or off.  ALARM 1-4: Run alarm 1-4. Available presets are 1-64.

  • Page 13: Auto Temperature Control

    CAMTVI10 Display <DISPLAY> ------------------------------------------------------- SYSTEM P AND T ACTION DOME ID COMM EXIT  SYSTEM: Select the video system between NTSC and PAL.  P AND T: Switch the pan and tilt degree display function on or off.  ACTION: Display the current action.

  • Page 14: Technical Specifications

    CAMTVI10 Technical Specifications IP rating ......................IP66 pick-up element ............1/2.8" SONY CMOS image sensor number of pixels ................1920 (H) x 1080 (V) resolution ....................1080P video min. illumination ..................0.001 lux IR LEDs ................ 8 x 22 mm + 6 x 16 mm LEDs IR-cut filter ......................

  • Page 15: Appendix I - Address Code Mapping

    CAMTVI10 Appendixes 12.1 Appendix I – Address Code Mapping Pelco-D switch settings address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 … … … … … … … … … V. 02 – 18/07/2016 ©Velleman nv...
  • Page 16 CAMTVI10 Pelco-P switch settings address SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8 … … … … … … … … … V. 02 – 18/07/2016 ©Velleman nv...

  • Page 17: Appendix Ii - Troubleshooting

    The information in this manual is subject to change without prior notice. © COPYRIGHT NOTICE The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
  • Page 18 • Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
