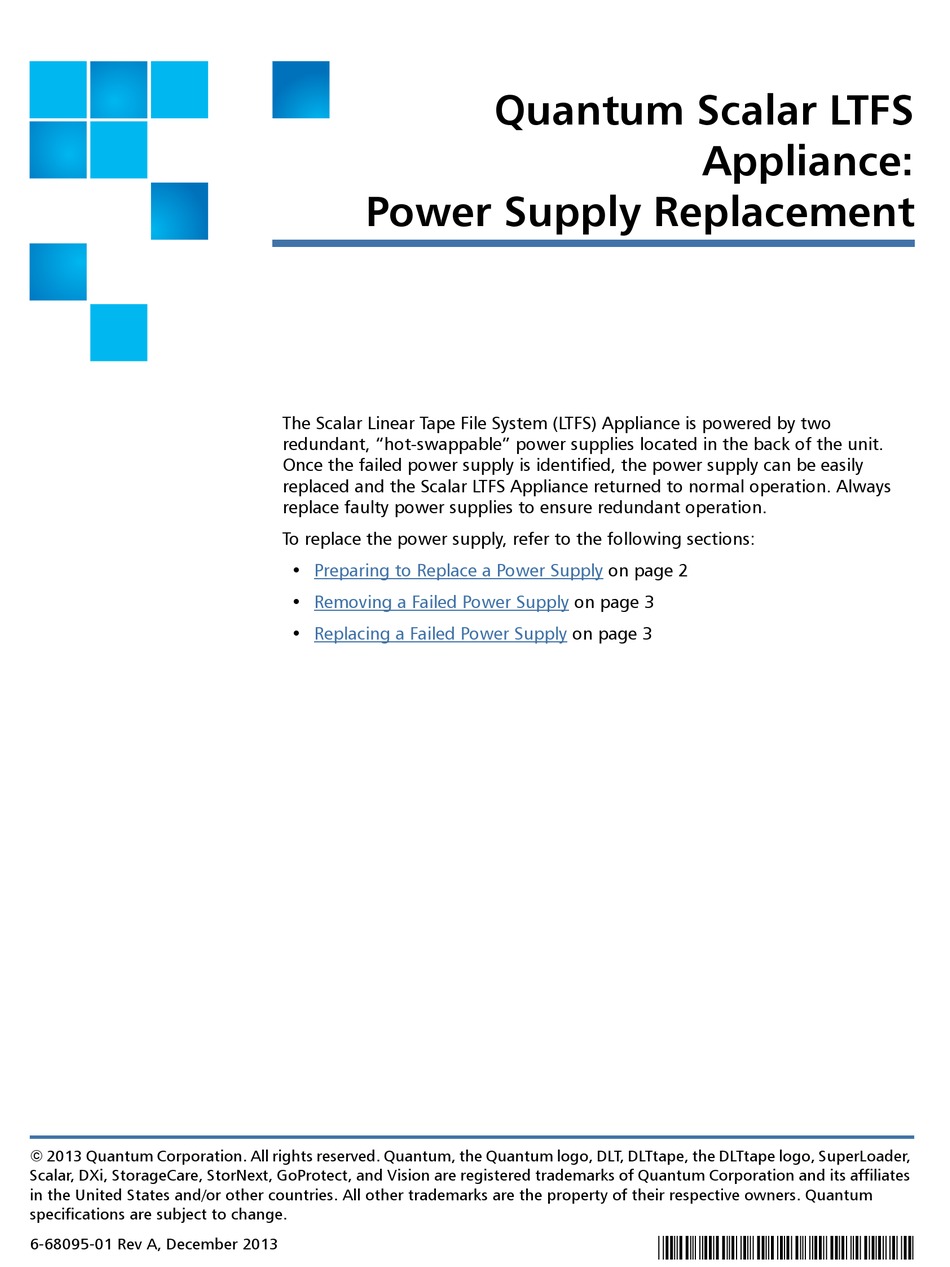

Quantum Scalar LTFS Power Supply Replacement

Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates

in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum

specifications are subject to change.

6-68095-01 Rev A, December 2013

Power Supply Replacement

The Scalar Linear Tape File System (LTFS) Appliance is powered by two

redundant, "hot-swappable" power supplies located in the back of the unit.

Once the failed power supply is identified, the power supply can be easily

replaced and the Scalar LTFS Appliance returned to normal operation. Always

replace faulty power supplies to ensure redundant operation.

To replace the power supply, refer to the following sections:

•

Preparing to Replace a Power Supply

•

Removing a Failed Power Supply

•

Replacing a Failed Power Supply

Quantum Scalar LTFS

on page 2

on page 3

*6-68095-01 A*

Appliance:

Table of Contents

Need help?

Do you have a question about the Scalar LTFS and is the answer not in the manual?

Page 1 © 2013 Quantum Corporation. All rights reserved. Quantum, the Quantum logo, DLT, DLTtape, the DLTtape logo, SuperLoader, Scalar, DXi, StorageCare, StorNext, GoProtect, and Vision are registered trademarks of Quantum Corporation and its affiliates in the United States and/or other countries. All other trademarks are the property of their respective owners. Quantum specifications are subject to change.
Page 2 Quantum Scalar LTFS Appliance: Power Supply Replacement 6-68095-01 Rev A December 2013 Preparing to Replace a Power Supply Before beginning the replacement procedure, make sure that you have the required replacement kit(s). Refer to the following table for the replacement kit...
Page 3: Power Supply
Replacing a Failed Power Supply To replace the power supply, complete the following steps: 1 In the empty bay of the Scalar LTFS Appliance, insert the replacement power supply until the release latch snaps into place. 2 Reattach the power cable to the power supply.
Page 4 LED indicators. A green light indicates that a valid AC source is connected to the power supply, and that the power supply is operational. When Scalar LTFS Appliance is on, a green light also indicates that the power supply is providing DC power to the appliance.
