USE AND INSTALLATION MANUAL
PELLET STOVE
FLAT
COMFORT AIR MADE OF CERAMICS
FLAIR
COMFORT AIR MADE OF STEATITE
Translation of original instructions
NuTech Renewables Ltd
unit 11, warrenpoint Enterprise centre,
Newry Road, Warrenpoint
Co.Down,. BT34 3LA
Tel; + 44 28 417 53031
Email: info@nutechrenewables.com
www.nutechrenewables,.com
EN

Advertisement

Table of Contents
loading

Related Manuals for MCZ FLAT

Summary of Contents for MCZ FLAT

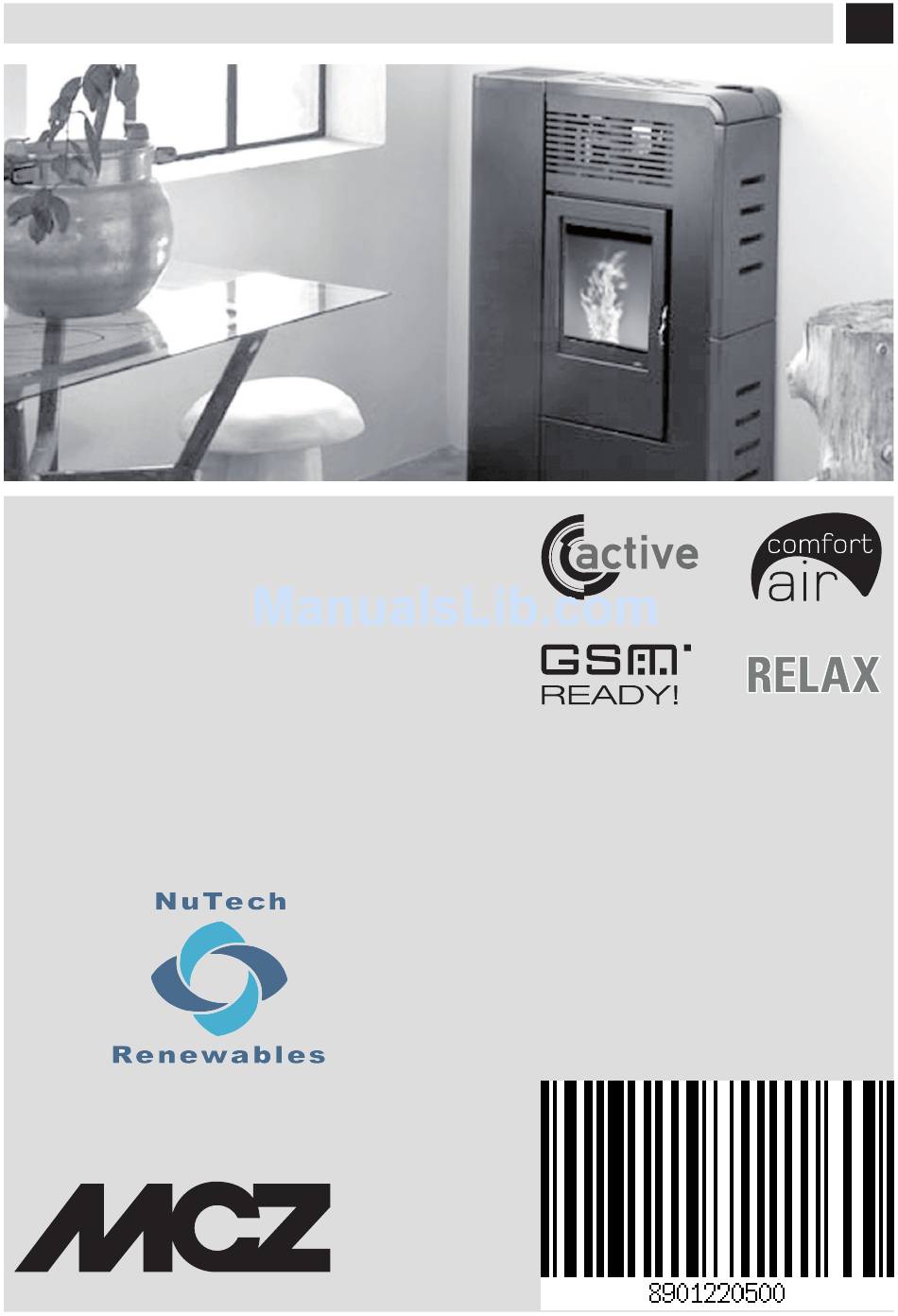

  • Page 1 USE AND INSTALLATION MANUAL PELLET STOVE FLAT COMFORT AIR MADE OF CERAMICS FLAIR COMFORT AIR MADE OF STEATITE NuTech Renewables Ltd unit 11, warrenpoint Enterprise centre, Newry Road, Warrenpoint Co.Down,. BT34 3LA Tel; + 44 28 417 53031 Email: info@nutechrenewables.com www.nutechrenewables,.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................II INTRODUCTION ......................1 1-WARNINGS AND WARRANTY CONDITIONS ..............2 2-FUEL ........................6 3-INSTALLATION ......................7 4-FLUE ........................8 5-DRAWINGS AND TECHNICAL FEATURES ..............15 6-INSTALLATION AND ASSEMBLY ................18 7-REMOTE CONTROL MAX ..................36 8-EMERGENCY PANEL ....................41 9-SAFETY DEVICES AND ALARMS ................44 10-MAINTENANCE AND CLEANING................48 11-PROBLEMS/CAUSES/SOLUTIONS ................52 12-WIRING DIAGRAMS ....................55...

  • Page 3: Introduction

    REVISIONS TO THE PUBLICATION The content of this manual is strictly technical and the property of MCZ Group Spa. No part of this manual may be translated into other languages and/or adapted and/or reproduced, even in part, in other mechanical or electronic forms, photocopies, recordings or other, without the prior written authorisation from MCZ Group Spa.

  • Page 4: 1-Warnings And Warranty Conditions

    1-WARNINGS AND WARRANTY CONDITIONS SAFETY PRECAUTIONS • Installation, electrical connection, function test and maintenance must only be carried out by authorised and qualified personnel. • Install the product in accordance with all local and national legislation and regulations in force in the region or state. • Only use the fuel recommended by the manufacturer.
  • Page 5 1-WARNINGS AND WARRANTY CONDITIONS INFORMATION: Please contact the retailer or qualified personnel authorised by the company to resolve a problem. • You must only use the fuel specified by the manufacturer. • When the product is switched on for the first time it is normal for it to emit smoke due to the paint overheating for the first time. Therefore make sure the room in which it is installed is well ventilated.
  • Page 6 1-WARNINGS AND WARRANTY CONDITIONS EXCLUSIONS The guarantee does not cover malfunctions and/or damage to the appliance that arise due to the following causes: • Damage caused during transportation and/or handling • all parts that develop faults due to negligence or improper use, incorrect maintenance, installation that does not comply with the manufacturer’s instructions (always refer to the installation and use manual provided with the appliance) •...
  • Page 7 1-WARNINGS AND WARRANTY CONDITIONS SPARE PARTS In the event of a malfunction, consult the retailer who will forward the call to the Technical Assistance Service. Only use original spare parts. The retailer or service centre can provide all necessary information regarding spare parts. We do not recommend waiting for the parts to get worn out before having them replaced.

  • Page 8: 2-Fuel

    2-FUEL The instructions in this chapter refer explicitly to the Italian installation regulation UNI 10683. In any case, always observe the regulations in force in the country of installation. PELLETS Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The compactness of the material is guaranteed by the lignin contained in the wood itself and allows pellets to be produced without glue or binders.

  • Page 9: 3-Installation

    If particularly delicate objects are present, such as furniture, curtains or sofas, increase the stove clearance accordingly. If the floor is made of wood, it is recommended to fit a floor protection sheet in compliance with the Standards in force in the country of installation. FLAT - FLAIR Non-flammable walls Flammable walls...

  • Page 10: 4-Flue

    4-FLUE FOREWORD The Chimney Flue chapter has been drawn up with reference to the provisions of European Standards (EN13384 - EN1443 - EN1856 - EN1457). The chapter provides instructions for installing a chimney flue efficiently and properly, but under no circumstances is it a substitute of the Standards in force, which the qualified technician must be in possession of.
  • Page 11 EN1443. The chimney opening must be in the same room as the appliance, or at most in the adjoining room, and have a soot and condensation collection chamber beneath the opening, and be accessible via a sealed metal hatch. FLAT ROOF A = 0.50 metres B = DISTANCE > 2 metres C = DISTANCE <...
  • Page 12 4-FLUE ROOF AT 60° ROOF AT 45° 45° 60° A = MIN. 2.60 metres A = MIN. 2.00 metres FIGURE 5 FIGURE 6 B = DISTANCE > 1.20 metres B = DISTANCE > 1.30 metres C = DISTANCE < 1.20 metres C = DISTANCE <...
  • Page 13 4-FLUE MAINTENANCE The flue must be kept clean, since the deposit of soot or unburned oils reduces the cross-section reducing the draft and thus compromising the efficient operation of the stove and, if large build-ups accumulate, can catch fire. The flue and chimney must be cleaned and checked by a qualified chimney sweep at least once a year.
  • Page 14 4-FLUE EXTERNAL AIR INLET It is mandatory to provide an adequate external air intake that supplies the combustion air required for the product to work properly. The flow of air between the outside and the installation room may be direct, through an inlet in an external wall of the room; or indirect, via air intake from adjoining rooms and connecting permanently with the installation room (see Figure 9 b).
  • Page 15 4-FLUE 1.5 m HORIZONTALLY Windows, doors, smoke outlets, cavities, ..0.3 m ABOVE Windows, doors, smoke outlets, cavities, ..1.5 m AWAY from smoke outlet CONNECTION TO THE FLUE The connection between the flue and the appliance must be via a smoke duct that complies with EN 1856-2. The connecting section must extend no more than 4 m horizontally, with a minimum slope of 3% and with a maximum of 3 90% bends (accessible for inspection - do not count the T fitting at the appliance outlet).
  • Page 16 4-FLUE EXAMPLES OF CORRECT INSTALLATION 1. Installation of Ø120mm flue with hole for the passage of the pipe increased by: minimum 100mm around the pipe if next to non flammable parts such as cement, brick, etc.; or minimum 300mm around the pipe (or as required by data tags) if next to flammable parts such as wood etc.

  • Page 17: 5-Drawings And Technical Features

    5-DRAWINGS AND TECHNICAL FEATURES DRAWINGS AND CHARACTERISTICS FLAT COMFORT AIR DIMENSIONS (in mm) 521.5 85.5 Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 18 5-DRAWINGS AND TECHNICAL FEATURES FLAIR COMFORT AIR DIMENSIONS (in mm) 523.3 85.1...
  • Page 19 5-DRAWINGS AND TECHNICAL FEATURES TECHNICAL CHARACTERISTICS FLAT-FLAIR COMFORT AIR (Max) nominal output power 8 kw (6880 kcal/h) Minimum output power 3,2 kw (2752 kcal/h) Efficiency at Max 87,8% Efficiency at Min 93,6% Temperature of exhaust smoke at Max 160°C Temperature of exhaust smoke at Min 90°C...

  • Page 20: 6-Installation And Assembly

    6-INSTALLATION AND ASSEMBLY PREPARATION AND UNPACKING The FLAT stove is delivered on a pallet with several packages (fig.1): • The first package contains the stove. • The second package contains the ceramic panels and is stacked on top of the structure package.
  • Page 21 6-INSTALLATION AND ASSEMBLY REMOVE THE TWO SCREWS FROM THE FOUR BRACKETS REMOVE THE BRACKETS FIGURE 3 - REMOVING THE PACKAGE SCREWS Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 22 6-INSTALLATION AND ASSEMBLY Position the product without its cladding and connect it to the chimney. Once the connections are complete, assemble the cladding (ceramic or serpentine sides). If the product must be connected to an exhaust pipe that goes through the rear wall (to enter the chimney), make sure not to force it in. Adjust the 4 feet (J) to level the stove for the smoke exhaust and the pipe to be coaxial.
  • Page 23 6-INSTALLATION AND ASSEMBLY CONNECTION OF THE SMOKE OUTLET PIPE You can choose whether to release the smoke on the rear part or upper part of the product. If you wish to connect the smoke outlet to the upper part, remove the cap with the three screws from under the top. Then insert the pipe until it engages with the smoke fitting.
  • Page 24 6-INSTALLATION AND ASSEMBLY If you wish to connect the smoke outlet to the rear part, turn the T-fitting towards the rear of the product. Then connect the pipes. TURN THE T-FITTING FOR THE REAR SMOKE OUTLET.
  • Page 25 6-INSTALLATION AND ASSEMBLY CONNECTING THE HOT AIR DUCTING The standard product has two fans installed for air distribution with the nozzle directed towards the front part of the stove. Therefore, the first important thing to decide is whether to channel the air or not. In line with this, turn the fan (2) for the air to be released towards the rear part.
  • Page 26 6-INSTALLATION AND ASSEMBLY FAN 2 TURNED FOR REAR AIR. FAN 2 ORIGINAL POS. The air can be channelled by fastening a flexible pipe on the rear part of the product with a clamp, in line with the hole on the upper part. The air can now be released from the front and rear, only from the front or only from the rear.
  • Page 27 6-INSTALLATION AND ASSEMBLY It is recommended to insulate the entire length of the pipe in order to reduce dispersion and increase heat output in the room. A - STOVE B - HOT AIR OUTLET PIPE C - INSULATION WALL D - INSULATION If the wall that is to be drilled through is made of flammable material, the INSTALLER MUST adequately insulate the pipe of the stove that passes through it, using suitable insulating material (1.3 - 5 cm thick with min.
  • Page 28 6-INSTALLATION AND ASSEMBLY ASSEMBLING THE CLADDING ASSEMBLING THE CERAMIC SIDE PANELS The product is supplied with the ceramic panels packaged separately, therefore unpack all the parts before proceeding with the assembly. Follow the sequence below to assemble the panels: • Flaps “b”...
  • Page 29 6-INSTALLATION AND ASSEMBLY Panel B can be fastened by following the procedures implemented to assemble panel A. The flaps on the lower part of the panel - • pos. d - must enter the holes in the structure, whereas two screws on the upper part of the panel, block it to the structure - pos. f. Panel B rests on the two adjustable screws “e”.
  • Page 30 6-INSTALLATION AND ASSEMBLY ASSEMBLING THE SERPENTINE SIDE PANELS The product is supplied with the serpentine panels packaged separately, therefore unpack all the parts before proceeding with the assembly. Follow the sequence below to assemble the panels: Flaps “b” on the lower part of the stone panel A must be fitted into the holes of the structure of the stove. Then fasten the panel to •...
  • Page 31 6-INSTALLATION AND ASSEMBLY • Panel B can be fastened by following the procedures implemented to assemble panel A. The flaps on the lower part of the panel - pos. d - must enter the holes in the structure, whereas two screws and two nuts on the upper part of the panel, block it to the structure - pos.
  • Page 32 6-INSTALLATION AND ASSEMBLY ASSEMBLING THE CERAMIC/SERPENTINE TOP The top does not require particular fastening as it is only placed on the structure of the product in line with the relative vibration dampers. Therefore, once panels A and B are fitted, parts C and D can be assembled with the hopper cover E. ASSEMBLY OF CERAMIC TOP GROOVE DIRECTION ASSEMBLY OF SERPENTINE TOP...
  • Page 33 6-INSTALLATION AND ASSEMBLY HOPPER COVER ORIENTATION Attention! Tank cover E must rest on component D with the groove placed horizontally compared to the stove. Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 34 ATTENTION! The door must be closed properly for the product to work correctly. The door of the Flat/Flair stove is opened by inserting the cold handle on the opening hook of the door, lifting and pulling. OPENING THE DOOR. ELECTRICAL CONNECTION First connect the power cable to the back of the product and then to a wall socket.
  • Page 35 6-INSTALLATION AND ASSEMBLY BEFORE START-UP GENERAL PRECAUTIONS Remove all components that could burn from the brazier and the glass (manual, various adhesive labels and any polystyrene). Check that the brazier is positioned correctly and rests properly on the base. After a long period of inactivity, remove any pellets left in the hopper (using a vacuum cleaner with a long pipe), as they could have absorbed moisture, thereby altering their original characteristics and no longer being suitable for combustion.
  • Page 36 6-INSTALLATION AND ASSEMBLY It is good practice to guarantee effective ventilation in the room during the initial start-up, as the stove will emit some smoke and smell of paint. Do not stand close to the stove and air the room. The smoke and smell of paint will disappear after about an hour of operation, however, remember they are not harmful in any case.
  • Page 37 6-INSTALLATION AND ASSEMBLY LOADING THE PELLETS Fuel is loaded by lifting the cover on the upper part of the product. Slowly pour the pellets into the hopper. Be careful as the cover could become very hot. LIFT THE COVER. INSERT THE PELLETS. No other type of fuel other then pellets, in compliance with above-mentioned specifications, is to be inserted into the hopper.

  • Page 38: 7-Remote Control Max

    The time must be set when the remote control is switched on. The remote control has a special icon on the display to indicate when the batteries are almost flat. If the flat battery icon appears, the batteries are almost flat and the remote control is about to go off.
  • Page 39 7-REMOTE CONTROL MAX LCD REMOTE CONTROL OPERATION GENERAL RULES Press key A for 1” to switch the product on and off. All changes are made with keys C. Key E is used to confirm the changes. Key B is used to select the product operating mode.
  • Page 40 7-REMOTE CONTROL MAX TIMER MODE (TIMER) Select this operating mode to switch the product on and off automatically, according to 6 customised time bands (P1 – P6). The following can be set for each time band: • Start-up time. • Shutdown time.
  • Page 41 7-REMOTE CONTROL MAX VARIOUS SETTINGS ROOM VENTILATION The room ventilation can be adjusted as desired in all 4 operating modes described earlier on. Simply follow the steps below: press key D on the initial display to access the VENTILATION setting. Then press key C to set the desired ventilation by selecting one of the 5 levels available.
  • Page 42 7-REMOTE CONTROL MAX TIMER SETTINGS DISPLAY THE TIMER TIME BANDS Simply press key D for 2” to display the time bands in TIMER mode. The 6 time bands can be scrolled through with key C, thereby verifying all the saved settings. Press key D or A to return to the initial display. MO TU WE TH FR SA SU 6:30 8:00...

  • Page 43: 8-Emergency Panel

    8-EMERGENCY PANEL EMERGENCY PANEL There is an emergency panel on the product side, designed for any malfunction to be detected and product control if the remote control should malfunction. Three-digit display that indicates a variety of product information besides the identification code of any malfunction. GREEN LED that indicates: •...
  • Page 44 EMERGENCY PANEL START-UP/SHUTDOWN If the remote control is faulty or the batteries are flat, the product can be operated in safe mode via the rear emergency panel. In this configuration, the product can only work in manual mode and one of 3 power levels can be selected.
  • Page 45 8-EMERGENCY PANEL LOAD THE FEED SCREW This function can only be activated when the stove is off and allows the pellets to be loaded into the feed screw (loading system). It can be used each time the pellets finish in the feed screw and hopper (see alarm A02). It is useful to prevent failed start-ups (alarm A01) due to the hopper being empty.

  • Page 46: 9-Safety Devices And Alarms

    9-SAFETY DEVICES AND ALARMS SAFETY DEVICES The product is supplied with the following safety devices: SMOKE TEMPERATURE PROBE Detects the temperature of the smoke, thereby enabling start-up or stopping the product when the temperature drops below the preset value. PELLET HOPPER SAFETY THERMOSTAT If the temperature exceeds the preset safety value, it immediately stops the product, which must cool down before being restarted.
  • Page 47 9-SAFETY DEVICES AND ALARMS ALARM ALERTS If an operating anomaly occurs, the product enters the shutdown phase due to an alarm and informs the user regarding the type of fault by means of a 3 digit code that remains displayed on the emergency panel. The alarm is indicated permanently by the relative 3 digit code, a flashing red LED that lights up on the emergency panel and an intermittent buzzer for the first 10 minutes.
  • Page 48 3 hours (or the batteries range (or change the batteries of the remote control if are flat). they are flat). The alarm alerts will disappear as soon NOTE: the appliance does not enter the as the appliance receives a new signal from the remote shutdown phase due to an alarm only in such a control.
  • Page 49 9-SAFETY DEVICES AND ALARMS BLOCKED PRODUCT The following may cause the product to be mechanically blocked: • The structure overheats (“A03”). • The smoke is overheated (“A04”). • During product operation, air that has not been controlled in the combustion chamber has entered or the chimney is clogged (“A05”). SOLUTIONS: If “A03”...

  • Page 50: 10-Maintenance And Cleaning

    10-MAINTENANCE AND CLEANING EXAMPLE OF A CLEAN BRAZIER EXAMPLE OF A DIRTY BRAZIER ATTENTION! All the cleaning operations of all parts must be performed with a completely cold product and the plug disconnected. The product requires little maintenance if used with certified good quality pellets. DAILY OR WEEKLY CLEANING PERFORMED BY THE USER BEFORE EACH START-UP Clean the ash and any deposits in the brazier that could clog the air passage holes.
  • Page 51 10-MAINTENANCE AND CLEANING CLEANING THE GLASS It is recommended to clean the ceramic glass with a dry brush, or if it is very dirty, spray a little specific detergent and clean with a cloth. ATTENTION! Do not use abrasive products and do not spray the glass spray cleaner on the painted parts or the door gaskets (ceramic fibre cord).
  • Page 52 The frequency with which the smoke exhaust must be cleaned depends on the use of the stove and the type of installation. The company recommends contacting an authorised service centre for end-of-season maintenance and cleaning as the above-mentioned operations will be performed together with a general inspection of the components. CLEANING THE FLAT STOVE EXCHANGER CLEANING THE FLAT STOVE T-FITTING...
  • Page 53 10-MAINTENANCE AND CLEANING END-OF-SEASON SHUTDOWN At the end of each season, before switching the product off, it is recommended to remove all the pellets from the hopper with a vacuum cleaner that has a long pipe. The appliance must be disconnected from the mains when it is not used. It is recommended to remove the power cable for additional safety, especially in the presence of children.

  • Page 54: 11-Problems/Causes/Solutions

    11-PROBLEMS/CAUSES/SOLUTIONS ATTENTION! All repairs must only be carried out by a specialised technician, with the product switched off and the plug disconnected. If the product is NOT used as described in this manual, the manufacturer declines all liability for any damage caused to persons and property.
  • Page 55 Faulty fan. Check the fan and replace it, if necessary. The remote control does not work. The remote control battery is flat. Replace the batteries. Faulty remote control. Replace the remote control. Technical Dept. - All rights reserved - Reproduction is prohibited...
  • Page 56 11-PROBLEMS/CAUSES/SOLUTIONS The product always runs at maximum The room thermostat is in the maximum Set the thermostat temperature. power when in automatic mode. position. Faulty temperature probe. Check the probe and replace it, if necessary. Faulty or malfunctioning control panel. Check the panel and replace it, if necessary.

  • Page 57: 12-Wiring Diagrams

    12-WIRING DIAGRAMS MOTHERBOARD WIRING KEY EMERGENCY PANEL GEAR MOTOR SMOKE PROBE CONTACT THERMOSTAT MODEM CONNECTION 10. AIR FAN SWITCH 11. SMOKE EXPULSION FAN REV CONTROL SPARK PLUG 12. AIR DOOR PROBE SMOKE EXPULSION FAN N.B. The wiring of the individual components is fitted with pre-wired connectors of different sizes. Technical Dept.
