SUMMIT 16
Operator's Manual
™
SUMMIT
Manuel d'utilisation
®
Pumper
Vacuum
Libro de Instrucciones
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read
this book prior to operating or attempting any service or maintenance procedure to your Clarke
machine could result in injury to you or to other personnel; damage to the machine or to other property
could occur as well. You must have training in the operation of this machine before using it. If you
or your operator(s) cannot read English, have this manual explained fully before attempting to
operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
®
For new books write to: Clarke
, 2100 Highway 265, Springdale, Arkansas 72764.
Clarke
®
Form No. 78560C
10/02
Printed in the U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summit Pumper and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke Summit Pumper

Summary of Contents for Clarke Summit Pumper

  • Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.

  • Page 2: Table Of Contents

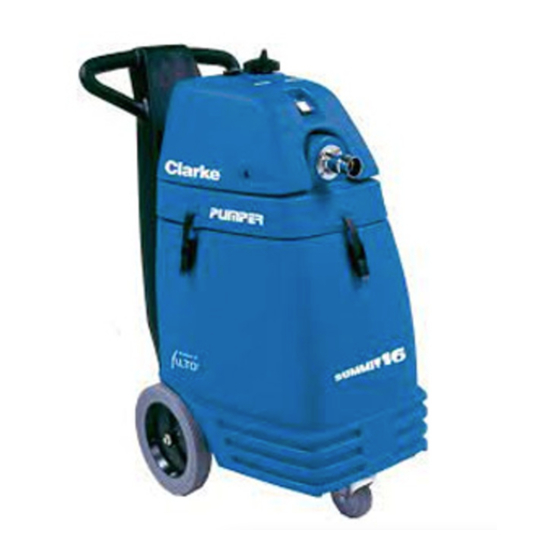

    INTRODUCTION The Summit Pumper Vacuum is available in 16 gallon capacity. The Summit Pumper models use a 2 stage vacuum motor rated at 97 C.F.M. flow rate and 82 inches of water lift. This wet vacuum is intended for commercial use only.
