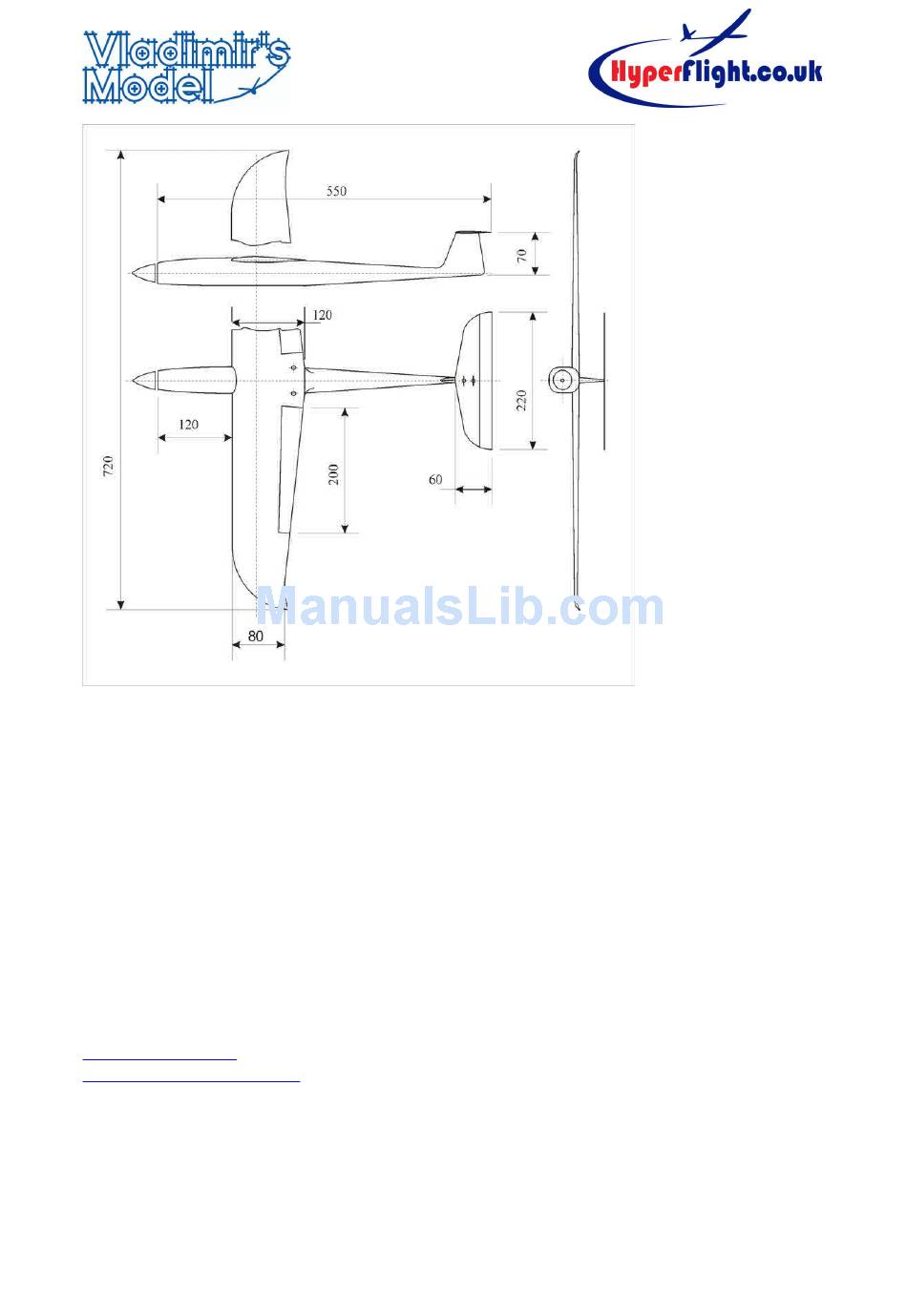

- Page 1 Sokol Assembly Guide from HyperFlight Drybank Farm Fosse Way Ettington Stratford-on-Avon Warwickshire UK CV37 7PD HyperFlight.co.uk sales@HyperFlight.co.uk © 2013 HyperFlight Revision 1.0 Sokol Assembly Guide 1.0.odt...
-
Page 2: Parts List
HyperFlight’s sole obligation shall be to replace those parts of the kit proven to be defective or missing. If you are not willing to agree to this binding condition of sale please return the model in as-received condition to Hyperflight for a refund. - Page 3 0.7 oz Motor 76 g 2.7 oz Prop & 11 g 0.4 oz spinner Battery 101 g 3.6 oz Glue etc 0.2 oz Flying weight 370 g 13.1 oz (c) 2013 HyperFlight Drybank Farm Fosse Way Ettington Stratford-on-Avon Warwickshire CV37 7PD...
- Page 4 Bend an L shape in the wire push rod, and attach it to the horn as shown. No keeper is needed. (c) 2013 HyperFlight Drybank Farm Fosse Way Ettington Stratford-on-Avon Warwickshire CV37 7PD...
- Page 5 Glue some Velcro (hook & loop) tape to the underside of the fuselage to allow the the battery to be safely secured in position, do it does not move during flight. Before flying mark the battery position to achieve the correct centre of gravity. (c) 2013 HyperFlight Drybank Farm Fosse Way Ettington Stratford-on-Avon Warwickshire CV37 7PD...
- Page 6 Epoxy this in position, and then epoxy the servo to the mount. Make up short pushrods from 18 SWG or 20 SWG piano wire with L bends at the ends. Use keepers or small tubes to hold the pushrods in position. (c) 2013 HyperFlight Drybank Farm Fosse Way Ettington Stratford-on-Avon Warwickshire CV37 7PD...
