Hyperflight blaster 3 Assembly Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

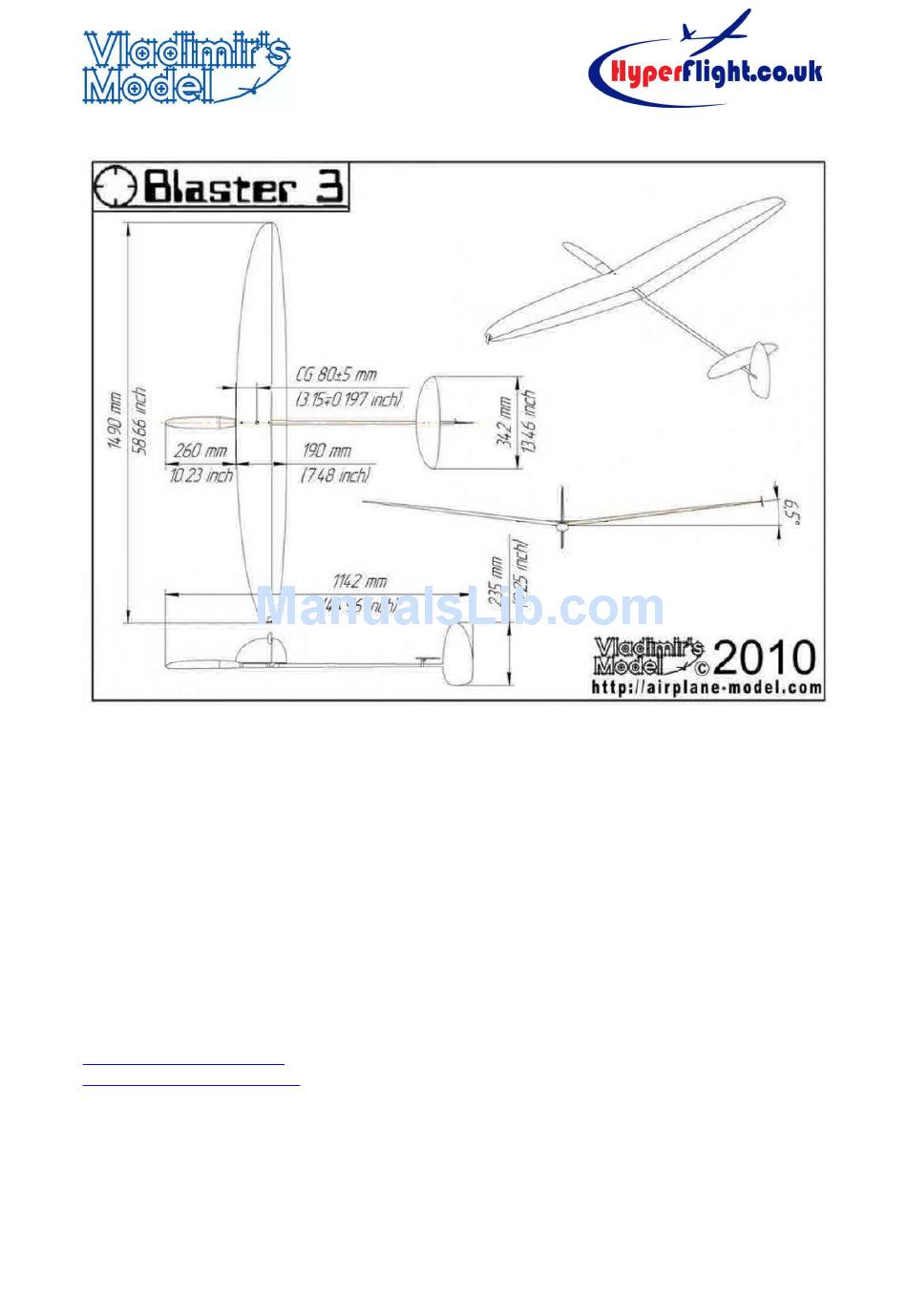

Blaster 3 Assembly Guide
