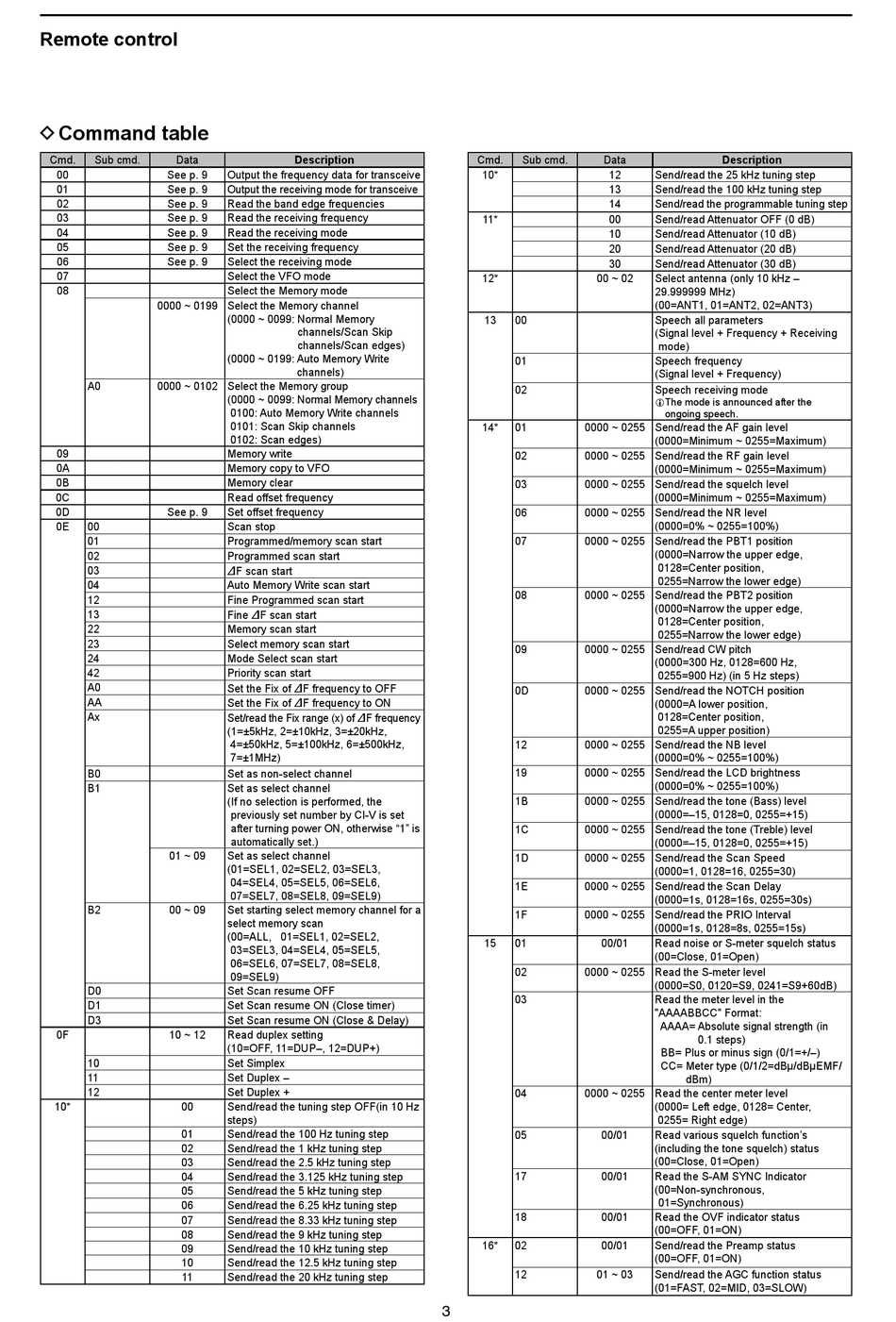

Remote control

D Command table

Cmd.
Sub cmd.
Data
00
See p. 9
01
See p. 9
02
See p. 9
03
See p. 9
04
See p. 9
05
See p. 9
06
See p. 9
07
08
0000 ~ 0199 Select the Memory channel
A0
0000 ~ 0102 Select the Memory group
09
0A
0B
0C
0D
See p. 9
0E
00
01
02
03
04
12
13
22
23
24
42
A0
AA
Ax
B0
B1
01 ~ 09
B2
00 ~ 09
D0
D1
D3
0F
10 ~ 12
10
11
12
10*
00
01
02
03
04
05
06
07
08
09
10
11
Description
Output the frequency data for transceive
Output the receiving mode for transceive
Read the band edge frequencies
Read the receiving frequency
Read the receiving mode
Set the receiving frequency
Select the receiving mode
Select the VFO mode
Select the Memory mode
( 0000 ~ 0099: Normal Memory
channels/Scan Skip
channels/Scan edges)
(000 0 ~ 0199: Auto Memory Write
channels)
( 0000 ~ 0099: Normal Memory channels
0100: Auto Memory Write channels
0101: Scan Skip channels
0102: Scan edges)
Memory write
Memory copy to VFO
Memory clear
Read offset frequency
Set offset frequency
Scan stop
Programmed/memory scan start
Programmed scan start
F scan start
Auto Memory Write scan start
Fine Programmed scan start
Fine
F scan start
Memory scan start
Select memory scan start
Mode Select scan start
Priority scan start
Set the Fix of
F frequency to OFF
Set the Fix of
F frequency to ON
Set/read the Fix range (x) of
F frequency
(1=±5kHz, 2=±10kHz, 3=±20kHz,
4=±50kHz, 5=±100kHz, 6=±500kHz,
7=±1MHz)
Set as non-select channel
Set as select channel
( If no selection is performed, the
previously set number by CI-V is set
after turning power ON, otherwise "1" is
automatically set.)
Set as select channel
(01=SEL1, 02=SEL2, 03=SEL3,
04=SEL4, 05=SEL5, 06=SEL6,
07=SEL7, 08=SEL8, 09=SEL9)
Set starting select memory channel for a
select memory scan
(00=ALL, 01=SEL1, 02=SEL2,
03=SEL3, 04=SEL4, 05=SEL5,
06=SEL6, 07=SEL7, 08=SEL8,
09=SEL9)
Set Scan resume OFF
Set Scan resume ON (Close timer)
Set Scan resume ON (Close & Delay)
Read duplex setting
(10=OFF, 11=DUP–, 12=DUP+)
Set Simplex
Set Duplex –
Set Duplex +
Send/read the tuning step OFF(in 10 Hz
steps)
Send/read the 100 Hz tuning step
Send/read the 1 kHz tuning step
Send/read the 2.5 kHz tuning step
Send/read the 3.125 kHz tuning step
Send/read the 5 kHz tuning step
Send/read the 6.25 kHz tuning step
Send/read the 8.33 kHz tuning step
Send/read the 9 kHz tuning step
Send/read the 10 kHz tuning step
Send/read the 12.5 kHz tuning step
Send/read the 20 kHz tuning step
Cmd.
Sub cmd.
Data
10*
12
13
14
11*
00
10
20
30
12*
00 ~ 02
13
00
01
02
14*
01
0000 ~ 0255 Send/read the AF gain level
02
0000 ~ 0255 Send/read the RF gain level
03
0000 ~ 0255 Send/read the squelch level
06
0000 ~ 0255 Send/read the NR level
07
0000 ~ 0255 Send/read the PBT1 position
08
0000 ~ 0255 Send/read the PBT2 position
09
0000 ~ 0255 Send/read CW pitch
0D
0000 ~ 0255 Send/read the NOTCH position
12
0000 ~ 0255 Send/read the NB level
19
0000 ~ 0255 Send/read the LCD brightness
1B
0000 ~ 0255 Send/read the tone (Bass) level
1C
0000 ~ 0255 Send/read the tone (Treble) level
1D
0000 ~ 0255 Send/read the Scan Speed
1E
0000 ~ 0255 Send/read the Scan Delay
1F
0000 ~ 0255 Send/read the PRIO Interval
15
01
00/01
02
0000 ~ 0255 Read the S-meter level
03
04
0000 ~ 0255 Read the center meter level
05
00/01
17
00/01
18
00/01
16*
02
00/01
12
01 ~ 03
3
Description
Send/read the 25 kHz tuning step
Send/read the 100 kHz tuning step
Send/read the programmable tuning step
Send/read Attenuator OFF (0 dB)
Send/read Attenuator (10 dB)
Send/read Attenuator (20 dB)
Send/read Attenuator (30 dB)
Select antenna (only 10 kHz –
29.999999 MHz)
(00=ANT1, 01=ANT2, 02=ANT3)
Speech all parameters
( Signal level + Frequency + Receiving
mode)
Speech frequency
(Signal level + Frequency)
Speech receiving mode
L The mode is announced after the
ongoing speech.
(0000=Minimum ~ 0255=Maximum)
(0000=Minimum ~ 0255=Maximum)
(0000=Minimum ~ 0255=Maximum)
(0000=0% ~ 0255=100%)
(0000=Narrow the upper edge,
0128=Center position,
0255=Narrow the lower edge)
(0000=Narrow the upper edge,
0128=Center position,
0255=Narrow the lower edge)
(0000=300 Hz, 0128=600 Hz,
0255=900 Hz) (in 5 Hz steps)
(0000=A lower position,
0128=Center position,
0255=A upper position)
(0000=0% ~ 0255=100%)
(0000=0% ~ 0255=100%)
(0000=–15, 0128=0, 0255=+15)
(0000=–15, 0128=0, 0255=+15)
(0000=1, 0128=16, 0255=30)
(0000=1s, 0128=16s, 0255=30s)
(0000=1s, 0128=8s, 0255=15s)
Read noise or S-meter squelch status
(00=Close, 01=Open)
(0000=S0, 0120=S9, 0241=S9+60dB)
Read the meter level in the
"AAAABBCC" Format:
AAAA= Absolute signal strength (in
0.1 steps)
BB= Plus or minus sign (0/1=+/–)
CC= Meter type (0/1/2=dBμ/dBμEMF/
dBm)
( 0000= Left edge, 0128= Center,
0255= Right edge)
Read various squelch function's
(including the tone squelch) status
(00=Close, 01=Open)
Read the S-AM SYNC Indicator
( 00=Non-synchronous,
01=Synchronous)
Read the OVF indicator status
(00=OFF, 01=ON)
Send/read the Preamp status
(00=OFF, 01=ON)
Send/read the AGC function status
( 01=FAST, 02=MID, 03=SLOW)
