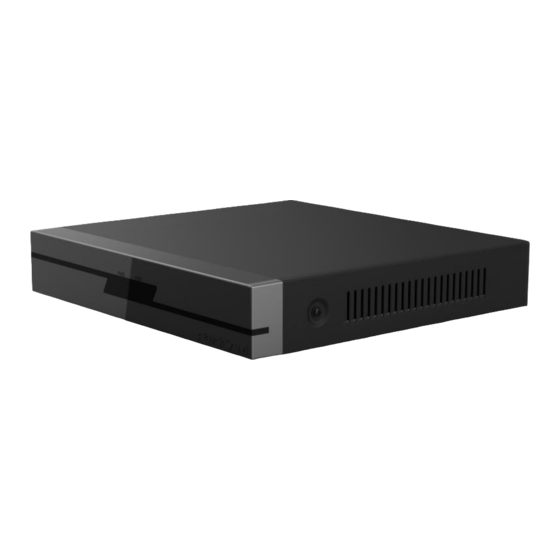

Network Video Recorder

User Manual

Model: FN3104H / FN3109H
Version: 1.6.2

Advertisement

Table of Contents
loading

Related Manuals for Foscam FN3104H

Summary of Contents for Foscam FN3104H

  • Page 1: User Manual

    Network Video Recorder User Manual Model: FN3104H / FN3109H Version: 1.6.2...

  • Page 2: Table Of Contents

    2.4 Device Connection.......................... 10 2.5 USB Mouse Operation........................11 3 GUI................................. 12 3.1 Login..............................12 3.2 Setup Wizard............................ 12 3.3 Shortcut Menu..........................12 3.4 Menu..............................15 3.4.1 Adding Devices........................16 3.4.2 Playback..........................19 3.4.3 Schedule..........................22 3.4.4 Device Information........................23 3.4.5 Settings...........................26 3.4.6 System............................ 43 www.foscam.com...
  • Page 3 5 Appendix................................85 5.1 HDD Capacity Calculation......................85 5.2 Common Operations........................87 5.3 Specifications........................... 92 5.4 List of Third-party List........................97 5.5 FAQ..............................98 5.6 Glossary............................100 5.7 CE & FCC............................101 5.8 WARRANTY........................... 102 5.9 Statement............................106 5.10 Obtaining Technical Support..................... 108 www.foscam.com...

  • Page 4: Security Warning

    NVR User Manual Security Warning Foscam cameras and NVRs require good security practices to safeguard your privacy. You should regularly change your camera or NVR password which is the combination of numbers, letters and symbols. You should update your camera or NVR regularly. Make sure your camera or NVR has the latest firmware installed for your specific model and better experience.

  • Page 5: Preface

    GUI, and practical industrial designs. This series NVR is suitable for civil applications such as homes, stores, internet cafes, and small businesses in addition to mainstream security and surveillance applications. Model This manual is applicable to the models listed in the following information. NVR FN3104H  NVR FN3109H  Default Settings The NVR default administrator &...

  • Page 6: Important Safety Instructions

     Please press power button to shut down the NVR instead cutting off the power directly to avoid to damaged the storage device.  Do not take the device apart when it is operating (or connecting to power).  Ensure power cable corresponds to the model of the NVR which produced by Foscam. www.foscam.com...

  • Page 7: Overview

    You can manual enable recording in the corresponding channel. Alarm Recording  Alarm recording is classified into I/O alarm recording and motion detection recording. - I/O Alarm Recording After the external alarm function is enabled and the linkage recording channel is selected, I/O www.foscam.com...

  • Page 8: Ipc Management

    FTP server. IPC Management You can search for IPC devices in the LAN through the NVR and add IPC devices to the NVR channel. Through the NVR, you can also manage IPC devices. HDD Management www.foscam.com...

  • Page 9: Relevant Version

    You are recommended to equip a 7200 rpm or higher HDD. You are recommended to equip a 16:9 monitor with the resolution higher than Monitor 1280 * 720. You are recommended to equip Foscam IPC or IPC supporting ONVIF protocol. Network 10/100M Ethernet or above.

  • Page 10: Common Operations

    You can reset the NVR device to restore the factory settings. You can choose any one of the following methods operate. Reset button: Press and hold it for 3 seconds to reset all parameters to factory defaults on the  www.foscam.com...
  • Page 11 NVR. Local GUI: Choose Menu > System in the Menu interface, then click Factory Reset in the System  interface. (Parameter Configuration) > System Management > Factory Reset. Web GUI: Choose  The Factory Reset page is displayed. www.foscam.com...

  • Page 12: Device

    7200 RPM. But Do not buy a HDD with automatic sleep function, so as to maintain reliable and stable running of the disks. It is highly recommended to use FOSCAM IPC, or the other IPC which supports ONVIF protocol. ...
  • Page 13 Connect one end of the data cable and power cable to the motherboard of NVR and the other end to the HDD. Place the HDD on the bottom of the device using the provided screws and then fasten the screws on the bottom to fix the HDD. Re-install the cover of the NVR and fasten screws. www.foscam.com...

  • Page 14: Device Structure

    The red LED is on: The HDD is not installed or cannot be detected. Blinks green: The HDD is writing, the NVR is recording. The green LED is on: The HDD is in the normal status and the NVR does not record. www.foscam.com...

  • Page 15: Rear Panel

    1 matches channel 1. When an external power supply is used to power the alarm input device, the alarm input device needs to share the ground with the NVR. Ground terminal for alarm input. www.foscam.com...

  • Page 16: Device Connection

    And then connect the power adapter to power input interface of NVR, the power indicator on the front panel will light on, indicating the power is connected right. Note Please use the power adapter included in the package to avoid any damage to the equipment. Network Access www.foscam.com...

  • Page 17: Usb Mouse Operation

    Time or Area box: Select the time or zone range. Drag Time bar: Drag time bar. Right-Click Single-Click Live view: Show menu. Menu: Exit current menu to upper level menu. Note: The Single-Click mentioned in this article is refer to the left mouse click. www.foscam.com...

  • Page 18: Gui

    Wizard can walk you through some important settings of the NVR. If you don't want to use the Setup Wizard at that moment, right click the mouse to quit. For the operation, please refer to the Quick Installation Guide. 3.3 Shortcut Menu After login, right-click the mouse, you will enter the shortcut menu. www.foscam.com...

  • Page 19: Color Settings

    Click Color Settings to choose a channel to alter the color, then adjust the parameters of hue, brightness, contrast, saturation and sharpness. Playback You can display the video of every a channel for playback. For details, please refer to 3.4.2 www.foscam.com...

  • Page 20: Manual Record

    Playback Manual Record Click Manual Record to set manual record for single channel or all channels. Note: Only FN3109H supports 9 channels, but FN3104H supports 4 channels. Enable Manual Record Check the Channel checkbox, Click OK button to take effect.

  • Page 21: Menu

    : Stop cruise. Shutdown Click Shutdown to enter the Shutdown page. You can log out, reboot or shut down the NVR system. 3.4 Menu Right-click in live view mode and select Menu from the Shortcut Menu, the Menu interface is displayed. www.foscam.com...

  • Page 22: Adding Devices

    IP Camera List, and you can configure the basic setting of the IP cameras. Note Before adding the IP Camera, make sure that the IP Camera supports FOSCMA or ONIVF protocol. And you have the user name, password and port number of the IP camera. www.foscam.com...
  • Page 23 NVR's. Select the protocol for the different IPC.  FOSCAM protocol: The High Definition (HD) IP Camera of foscam brand.  MJ protocol: The Standard Definition (SD) IP Camera of foscam brand.

  • Page 24: Manually Adding Ip Cameras

    5．Right-Click to return the previous interface. Manually Adding IP Cameras Click Manually Add button in the Camera Parameter Setting interface. You can select the Channel and Protocol. Input the IP Address, User name, Password, HTTP Port and Media Port. www.foscam.com...

  • Page 25: Playback

    And the camera and its information will be added in the list of cameras. Click OK button to take effect. 3.4.2 Playback Right-click in live view mode and select Playback from the Shortcut Menu, or choose "Menu > Playback" in the Menu interface. The Playback interface is displayed. It supports single-screen or four screens. www.foscam.com...
  • Page 26 Fast backward. The fast backward speed can be 4 times, 8 times, 16 times or 32 times of the normal playing speed. Click this button. The multiple of normal playing speed is displayed in the upper right corner of the playback page. For www.foscam.com...
  • Page 27 Backup the recording Click the Backup button to view the video record. Please make sure that the USB Flash Disk has been plugged in the NVR. Select some records in the list, then click the Backup button to save the www.foscam.com...

  • Page 28: Schedule

    If you want to see the video of this record, double click a record,. 3.4.3 Schedule Choose Menu > Schedule in the Menu interface. The Schedule interface is displayed. You can enable or disable schedule record for the every channel. www.foscam.com...

  • Page 29: Device Information

    3．Click Save button to take effect for one certain channel. 3.4.4 Device Information Choose Menu > Device Information in the Menu interface. The Device Information interface is displayed. You can view the firmware version, manage HDD Info and system log. www.foscam.com...

  • Page 30: Firmware Version

    You can view the Device Type, Device Name, Firmware Version and Application Version. HDD Info Choose Menu > About > HDD Info in the Menu interface. The HDD Info interface is displayed. You can see, refresh, format backup disk and format record disk. www.foscam.com...
  • Page 31 Choose Menu > About > System Log in the Menu interface. The System Log interface is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time. Searching Log www.foscam.com...

  • Page 32: Settings

    When searching for the log information, you can also select "backup page" or "backup all" to achieve bulk backup. 3.4.5 Settings Choose Menu > Settings in the Menu interface. The Settings interface is displayed. You can configure the general, video, network, display, Alarm Settings and OSD. www.foscam.com...
  • Page 33 NVR. NOTE Please do not modify the NVR system time when recording. Parameter Description Device Name You can modify your device name to help you identify it. Language Configure the language of the NVR interface. www.foscam.com...
  • Page 34 Click Save button to take effect. Stream Choose Menu > Settings > Stream in the Menu interface. The Stream interface is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. www.foscam.com...
  • Page 35 Network Choose Menu > Settings > Network in the Menu interface. The Network interface is displayed.You can configure the information of Network, DDNS, E-Mail, FTP. [Network] Select the Network page, you can configure the network information of the NVR. www.foscam.com...
  • Page 36 LAN. Subnet Mask The subnet mask of the NVR system. Gateway The gateway of the NVR system. Primary DNS The primary DNS server of the NVR system. Server Alternative The secondary DNS server of the NVR system. DNS Server www.foscam.com...
  • Page 37 Check the DDNS checkbox, you can configure the DDNS information of the NVR. The FOSCAM NVR has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name.
  • Page 38 The SMTP port is usually set as 25. Some SMTP servers have their own SMTP Port port, such as 587 or 465. Transport Layer Security usually is None. Enable SSH If you use Gmail, Transport Layer Security must be set to TLS or www.foscam.com...
  • Page 39 If the test success, you can see the success information, at the same time the receivers will receive a test mail. Check the FTP checkbox, you can configure the FTP information of the NVR. The system can be configured to send an picture to the FTP server if an alarm or motion event is detected etc.. www.foscam.com...
  • Page 40 If the test success, you can see the success information. Display Choose Menu > Settings > Display in the Menu interface. The Display interface is displayed.You can configure the display mode, Resolution, Transparency, Mouse Sensitivity and Interval for the NVR. www.foscam.com...

  • Page 41: Alarm Settings

    NVR system transmits the alarm information to an external alarm output device, which makes corresponding response. In the live view mode, there are icons at the right bottom of the screen for each channel.  The Icon indicate alarm was triggered. www.foscam.com...
  • Page 42 You can choose a week, one day of a week, the certain time period for the motion detection alarm. 2．Check Select checkbox to select the area. 3．Drag and draw the area for motion detection by left mouse. Note: Check Clear checkbox and If you clear the area, then drag and draw the area by mouse. www.foscam.com...
  • Page 43 Note: Make sure you have set Email. When the IO Alarm is triggered, you can choose whether to upload detection picture to FTP server. Note: Make sure you have set FTP. Linkage Record Channel Check the checkbox to start recording for the certain channel. www.foscam.com...

  • Page 44: Motion Detection

    Detection interface is displayed. Select channel from drop-down box list. Step1 Check the checkbox to enable motion detection function. Step2 Check the checkbox to select the linkage method. You may refer to follow table for details of Step3 linkage methods. www.foscam.com...
  • Page 45 Set up arming schedule of the channel for the motion detection. You can choose a week, one day of a week, the certain time period for the motion detection alarm. 2．Check Select checkbox to select the area. 3．Drag and draw the area for motion detection by left mouse. www.foscam.com...
  • Page 46 Note: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime. -------End Other Alarm Choose Menu > Settings > Alarm Settings > Other Alarm in the Menu interface. The Other Alarm interface is displayed. www.foscam.com...
  • Page 47 NVR User Manual Click Save button to take effect. Choose Menu > Settings > OSD in the Menu interface. The OSD interface is displayed. You can configure the OSD(On Screen Display) information. www.foscam.com...
  • Page 48 1．Click Select Shelter Area button and it pop up a window. 2．Drag and draw the area for privacy zone by left mouse. Note: To clear the privacy area, double click the mouse. 3．Right-click with your mouse to save and quit. Click Save button to take effect. www.foscam.com...

  • Page 49: System

    The administrator has the permission to add and delete all users and configure user parameters. You can add, modify, delete user name / password or distribute authority for users. The valid value range of User name and Password is 1 ~ 20 characters, it contains the English letter, numeric and symbol. www.foscam.com...
  • Page 50 Click the Remote Upgrade button, the system will check the software version. If your software is not latest, you can upgrade it by remote upgrading. NOTE: Don't shut down the power during upgrade. After upgrading, you can see the upgrade result. www.foscam.com...
  • Page 51 You can configure the Date and Time. The NVR will maintain system at the setting time. Log Out After logging out, the monitor turns to the live view mode and if you want to do some operation, you www.foscam.com...
  • Page 52 Choose Menu > System in the Menu interface, then click Shutdown in the System interface. Click OK button in the pop-up message box, the NVR system will shut down. It is recommended that cut off the power after shut down. www.foscam.com...

  • Page 53: Web

    Log in to the Web client of the NVR. You can directly enter the IP address and port in the Step1 browser or search out the NVR by using the FOSCAM search tool. Here we take FOSCAM search tool as an example.
  • Page 54 It will pop up the message below the page, as shown in the following figure. Click Install button to install the add-on. Please follow the installation instructions. (Please close the browser during installation.) After installing the add-on, refresh the browser and enter the login interface. Step5 www.foscam.com...
  • Page 55 When you log in for the first time, it will come to the operating of modify the user name and Step7 password automatically.Enter the New User name, New password and Confirm the password. Click Modify button, you will see the Live View interface of the NVR client. Step8 -------End www.foscam.com...

  • Page 56: Live Video

    NVR User Manual 4.3 Live Video After login, the live view interface will display. You can configure the play/stop the live view, manual recording, manual capturing, preset, cruise, led, color and so on. www.foscam.com...
  • Page 57 You can configure the preset and cruise of the IP Camera. IR LED You can configure the LED of the IP Camera. There are two modes: Manual and Auto. Color You can configure the color of the IP Camera. www.foscam.com...
  • Page 58 Press Esc to exit full screen mode. Setting Cruise The default cruise tracks have two types: Vertical and Horizontal. Vertical: The IP camera will rotate from up to down. Horizontal: The IP camera will rotate from left to right. : Start cruise. : Stop cruise. www.foscam.com...
  • Page 59 If you want to see one preset position you have set, only select the preset position name from Step3 the preset drop-down list, and click button, the IP camera will go to the preset position. www.foscam.com...

  • Page 60: Parameter Configuration

    LAN with NVR, you may add it in one button with IP Camera's user name, password and port number. (Parameter Configuration) > IP Camera Setup. The IP Camera Setup page is Choose displayed. After select any one of the channels, input information of the IPC. Then click Add button to finish adding. www.foscam.com...

  • Page 61: Schedule Record

    Step2 Choose the Protocol from the drop list. Input the User name and Password of the IPC. Select the FS protocol for Foscam brand IPC, and select the ONVIF protocol for other brands IPC. Click Add button to finish adding.

  • Page 62: Alarm

     The Icon indicate the IPC is recording. You can follow the steps to schedule a record which triggered by the detected motion. (Parameter Configuration) > Alarm > Motion Detection. The Motion Detection Choose page is displayed. www.foscam.com...
  • Page 63 The higher the sensitivity, the NVR will be more easily alarmed. The Detection Interval time between two motion detection. Check the checkbox to select the linkage method. You may refer to follow table for details of Step4 linkage methods. www.foscam.com...
  • Page 64 If you select this checkbox, when the Motion detection is triggered, the people IPC Buzz around the camera will hear beep alarm sound of the IPC. Set Detection Area Step5 1．Click Set Detection Area button and it pop up a window. www.foscam.com...
  • Page 65 Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the NVR will alarm. Click here Choose one day  Click the week day words, the corresponding column will be selected. www.foscam.com...
  • Page 66 When an external alarm input device triggers an alarm, the NVR system transmits the alarm information to an external alarm output device, which NVR User Manual www.foscam.com 84 makes corresponding www.foscam.com...
  • Page 67 Step5 Check the checkbox to select the linkage method. You may refer to follow table for details of linkage methods. Parameter Description When the IO Alarm is triggered, you can choose Buzzer whether to enable buzzing sound of the NVR device. When the IO Alarm is triggered, you can choose Send E-mail whether to send e-mail. www.foscam.com...
  • Page 68 (Parameter Configuration) > Alarm > Other Alarm, The Other Alarm page Step1 is displayed. Select Type form drop-down box list. Step2 Check the Buzzer checkbox if you want to enable buzzing sound of the NVR device. Step3 Click Save button to take effect. Step4 -------End www.foscam.com...

  • Page 69: Device Information

    Display the plug-in version of your NVR. Click Save button to take effect. Hard Disk Information You can configure the Disk Saturation, Pre-record Time for HDD information. (Parameter Configuration) > Device Information > Hard Disk Information. Choose Step1 The Hard Disk Information page is displayed. www.foscam.com...
  • Page 70 Choose page is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be searched and viewed at any time. The Log Type contains Alarm log, System log and Operation log. www.foscam.com...

  • Page 71: Basic Settings

    4.4.5 Basic Settings System Time You can configure the date and time of the NVR. Choose (Parameter Configuration) > Basic Settings > System Time. The System Step1 Time page is displayed. Configure the system time of the NVR. Step2 www.foscam.com...
  • Page 72 Click Sync with PC button to synchronize the date and time of the  NVR system with your computer. Date Format Select the date format from the drop-down list. Time Format Select the time format from the drop-down list. Click Save button to take effect. Step6 -------End www.foscam.com...
  • Page 73 NVR User Manual Network You can configure the network information of the NVR. Choose (Parameter Configuration) > Basic Settings > Network.The Network page Step1 is displayed. www.foscam.com...
  • Page 74 UPnP function of the router to which your NVR is connected. How to configure the IP Address, Subnet Mask, Gateway, Primary DNS Server, Secondary DNS Server, please refer to 5.2 Common Operations > 2. Configure the IP Parameters. Click Save button to take effect. Step3 -------End Email www.foscam.com...
  • Page 75 SMTP mail server. The network must also be connected to either an intranet or the Internet depending on the location of the e-mail accounts to which you want to send notification. Choose (Parameter Configuration) > Basic Settings > Email. The Email page is Step1 displayed. Configure the Email parameter. Step2 www.foscam.com...

  • Page 76: Ftp Settings

    FTP Settings The system can be configured to send an picture to the FTP server if an alarm or motion event is detected etc.. Choose (Parameter Configuration) > Basic Settings > FTP Settings. The FTP Step1 Settings page is displayed. www.foscam.com...
  • Page 77 If the test success, you can see the success information. -------End DDNS The Foscam NVR has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. Choose (Parameter Configuration) >...
  • Page 78 5.2 Common Operations > 1.Third Party Domain Name Settings. You can configure the OSD (On Screen Display) information of the NVR. Choose (Parameter Configuration) > Basic Settings > OSD,The OSD page is Step1 displayed. You can configure the follow parameters. Step2 www.foscam.com...
  • Page 79 Video Encode Choose (Parameter Configuration) > Basic Settings > Video Encode. The Video Encode page is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. www.foscam.com...
  • Page 80 Normally, when the frame rate above 15, you can achieve fluently video. Click save button to take effect. Storage Location You can configure the storage location for snap picture and backup record file. (Parameter Configuration) > Basic Settings > Storage Location. The Storage Choose Location page is displayed. www.foscam.com...
  • Page 81 There are five PT speed types very fast, fast, normal, slow and very slow. Step4 Click Save button to take effect. -------End Cruise Settings If the IP Camera has the PTZ function, you can manage the cruise of the IP camera. www.foscam.com...
  • Page 82 Add button, you can see the preset point has been added to the cruise track on the cruise track page. You need to add two or more preset points to the cruise track. How to customize the preset, please refer to 4.3 Live Video > Preset settings. www.foscam.com...
  • Page 83 4．Click OK button and the cruise track will take effect. You can add other cruise track as the same method. After add the cruise track, back to the surveillance window of IP Camera, select Cruise, here you can see all cruise tracks you have added. www.foscam.com...

  • Page 84: System Management

    You can see the cruise track which you want to query. Note: The default cruise track cann't be deleted. 4.4.6 System Management User Account User levels by permission from low to high are visitor, operator, administrator. Different user levels www.foscam.com...
  • Page 85 2．Click Save button to take effect. Import / Export Configurations You can import or export a configuration file for NVR system. (Parameter Configuration) > System Management > Import / Export Choose Configuration. The Import / Export Configurations page is displayed. www.foscam.com...
  • Page 86 (Parameter Configuration) > System Management > Upgrade. The Upgrade Choose page is displayed. Upgrading NVR Check the NVR Upgrade, then click the Browse... button to choose the upgrade file of the NVR. Click the Upgrade button to upgrade the NVR. www.foscam.com...
  • Page 87 Click Factory Reset button, then click OK button in the pop-up message box and all parameters will return to factory settings. The NVR device will reboot automatically. Reboot Choose (Parameter Configuration) > System Management > Reboot. The Reboot page is www.foscam.com...

  • Page 88: Playback

    (Playback), you can play the recording file of the NVR. 1. Select a date with recording in calendar. 2. Select the Record Type, and check the checkbox from the Channels. 3. Click Search button to search the matched recorded files. If there are search results, then they www.foscam.com...
  • Page 89 Click this button to enabled / disabled the audio. Full screen. Make the playing video maximized. After the video is maximized, press ESC to exit full screen. 5. Playback time You can move the mouse to a specific time axis and click to watch the playback. www.foscam.com...
  • Page 90 NVR User Manual Icon Description Zoom-in time axis. Zoom-out time axis. www.foscam.com...

  • Page 91: Appendix

    If you select 4M for the bit rate and select four channels for recording and one week of recording is needed, you can calculate the HDD capacity by using the following formula: Recording time (hour) = 7days * 24 hours=168 hour Mbit  3600 Spent of HDD Capacity per hour (M/hour)= =1800M/hour www.foscam.com...
  • Page 92 NVR User Manual Whole HDD Capacity(M)=4*168(hour)*1800 (M/hour),=1209600M, 1209600M 1209600M= =1181.25G 1024 According to the preceding calculation result, you are advised to buy a HDD of 1.5 TB or above. www.foscam.com...

  • Page 93: Common Operations

    User can also use third part DDNS, such as www.no-ip.com, www. 3322.com Here take for example: www.no-ip.com Step 1, Go to the website to create a free hostname www.no-ip.com Firstly: Login on www.no-ip.com and click No-IP Free to register. www.foscam.com...
  • Page 94 After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email. Secondly: Login the link with the registered user name and password to create your domain name. www.foscam.com...
  • Page 95 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
  • Page 96 The IP address of the NVR must be in the range of the router address pool.  Log in to the router client through the browser and select DHCP server > DHCP service. On the DHCP page, you can view the start address and end address of the address pool. www.foscam.com...
  • Page 97 The subnet mask of the NVR must be the same as the subnet mask in LAN port status. The default  gateway of the NVR is the same as the IP address in LAN port status. The primary DNS and secondary DNS can be the same as the DNS in WAN port status. www.foscam.com...

  • Page 98: Specifications

    4-ch 720P / 960P HD IP Camera Compatible Camera Foscam HD IP Cameras and other brand ONVIF-embedded cameras supported Foscam MJPEG cameras to be added by firmware upgrade Video Output Decoding Resolution (1080P) 1920 * 1080, (960P) 1280 * 960, 720P...
  • Page 99 Disk Management Set the video coverage strategy, format disk Motion Detection Alarm area and schedule settings User Accounts User account management System Operating System Microsoft Windows XP, 7, 8 Requirements Browser Microsoft IE8 and above version or compatible browser www.foscam.com...
  • Page 100 ITEMS FN3109H IP Video Input 9-ch HD IP camera input Video Input Foscam H.264 / MJPEG IP Cameras and other Compatible Camera brand ONVIF cameras supported 1080P (1920 * 720), 960P (1280 * 960), 720P Decoding Resolution (1280 * 720), VGA (640 * 480), VGA (640 * 360),...
  • Page 101 Rewind / Slow Play Supports Pan / Tilt / Zoom control, Optical Zoom Camera Search / Search cameras in LAN, add camera, and Management manage a camera list Remote configuration, video browse, local record, Application support local and remote playback, remote upgrade www.foscam.com...
  • Page 102 Net Weight 750g / 1.7lb Physical and Operating -20ºC ~ 55ºC (-4ºF ~ 131ºF) Environmental Temperature Operating Humidity 20% ~ 85% non-condensing Storage Temperature -20ºC ~ 60ºC (-4ºF ~ 140ºF) Storage Humidity 0% ~ 90% non-condensing Certification CE, FCC, RoHS www.foscam.com...

  • Page 103: List Of Third-Party List

    1TB, Mobile Hard Disk 5400RPM 8MB Cache USB3.0 TOSHIBA HDTB105AK3AA 500GB, Mobile Hard Disk 5400RPM 8MB Cache USB3.0 Western Digital WDBUZG0010BBK-01 1TB, Mobile Hard Disk 5400RPM USB3.0 DS11-201312-0043 2TB, Mobile Hard Disk 5400RPM USB3.0 Seagate STBV4000300 New Seagate Expansion 4TB, Mobile Hard Disk 5400RPM USB3.0 www.foscam.com...

  • Page 104: Faq

    In this case, log out of the Web client and log in to it again. In similar cases, for example, changing the IP address and HTTP port of the NVR, you need to log in to the client again. www.foscam.com...
  • Page 105 12. Why does the Web client prompt the message "Plugins are not found, Click me to download" or "Find a new Plugins, click me to download" after installing plug-in? You need to close the current browser after installing the plug-in, and then open the browser to access the login page. www.foscam.com...

  • Page 106: Glossary

    Network Time Protocol A protocol designed to synchronize the clocks of computers over a network. Network Video A NVR can be a PC-based or embedded system used for Recorder centralized management and storage for IP cameras. www.foscam.com...

  • Page 107: Ce & Fcc

    CE Mark Warning This is a Class A product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. CE Certicate Website: http://www.foscam.com/company/ce-certificate.html www.foscam.com...

  • Page 108: Warranty

    No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.
  • Page 109 Warranty is void if damaged by the use of parts not manufactured or sold by FOSCAM. ...

  • Page 110: Limitation Of Liability

    FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.
  • Page 111 NVR User Manual All rights reserved. FOSCAM and the FOSCAM logo are trademarks of ShenZhen FOSCAM Intelligent Technology Limited., registered in the U.S. and other countries. www.foscam.com...

  • Page 112: Statement

    Our company makes no warranty, implied or otherwise, that this product is suitable for any particular purpose or use. You need to abide by the relevant laws and regulations of the use restrictions when using Foscam cameras. Our company takes no responsibility of illegal activities by using our products.
  • Page 113 Without the prior written permission of Foscam company, all the contents of relevant operating instructions manual affiliated to the product must not be reproduced, transmitted, transcribed or stored in a retrieval system, or translated into other languages.

  • Page 114: Obtaining Technical Support

    While we hope your experience with the NVR is enjoyable and easy to use, you may experience some issues or have questions that this User's Guide has not answered. If you have problem with FOSCAM device, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, please contact our service department: tech@foscam.com...
