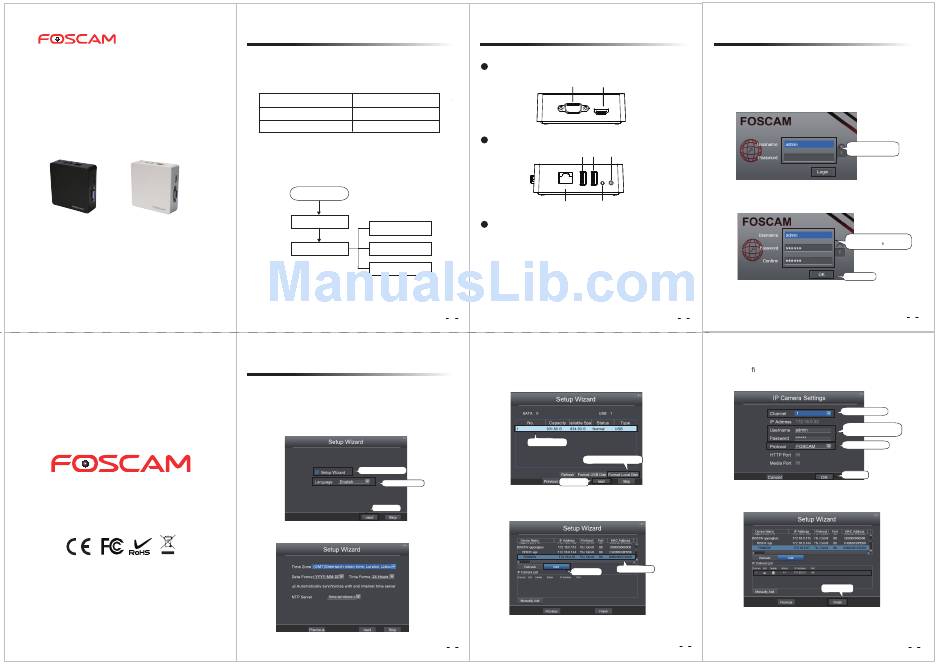

Foscam FN3004H Quick Installation Manual

Quick Installation Guide

Network Video Recorder
Model: FN3004H Model: FN3004H
Colour: Black Colour: White
EQ300404
ShenZhen Foscam Intelligent Technology Co., Ltd
www.foscam.com
1

Before You Start

Package Contents
NVR ×1
CD× 1
DC Power Adapter ×1 Warranty Card ×1
Quick Installation Guide ×1
Installation Process
Prepare

Device Connection

Setup Wizard

Login Manual Record
Remote Access
V1.2
4
Setup Wizard
The Setup Wizard can walk you through some important settings of
the NVR.
1. Select the Language. If you don't want to use the Setup Wizard
next time, uncheck the Setup Wizard checkbox.
1. Uncheck the checkbox
2. Select the Language
3. Click next
After the time settings, click next button.
2.
2
Device Connection
Side Panel
VGA Video Output HDMI Video Output
VGA HDMI
Rear Panel
USB Interfaces Power Supply
LAN USB1 USB2 POWER
POWER Status Indicators
LAN Interface
Interface Connection
Connect a display device to the video output interface.
1.
2. Connect a router to the LAN interface. In addition, connect the router
to a IPC device and a computer so that they are in the same LAN.
Connect a mobile storage device, for example, USB drive or mobile
3.
hard drive, to the USB interface.
4. Connect a mouse to the USB interface.
5. Connect the power adapter to the power input interface.
1
3. Select the mobile storage device, then click the Format Local Disk
button to initialize the mobile storage device for recording.
1. Select here
2. Click Format Local Disk
3. Click next
4. You can add the online IPC device for your NVR.
1. Select the IPC
2.Click Add
4
3
Login
1. After the NVR starts up successfully, the Power indicator LED
should be green. The startup page is displayed on the screen.
2. Login page.
Enter Username and Password, then click Login button.
Default username is admin with no password.
Default username is
admin with no password.
For the initial log in, the system will pop up a message for modifying
3.
the username/password. Click OK button.
1. Input the new username , new
password and con rm password.
2. Click OK
After modifying the username/password, enter the Setup Wizard
4.
interface.
2
You can con gure the following information of the IP Camera. Click
OK button which to go back to the Setup Wizard page.
3. Select the Channel
4. Input the Username and
Password of the IPC.
5. Select the Protocol
6. Click OK
Find the IP Camera in the IP Camera List, then click Finish button
5.
to complete the setup wizard.
Click Finish
The live view interface will show you the video image getting from
each IP Camera.
5
