Page 1: User Manual

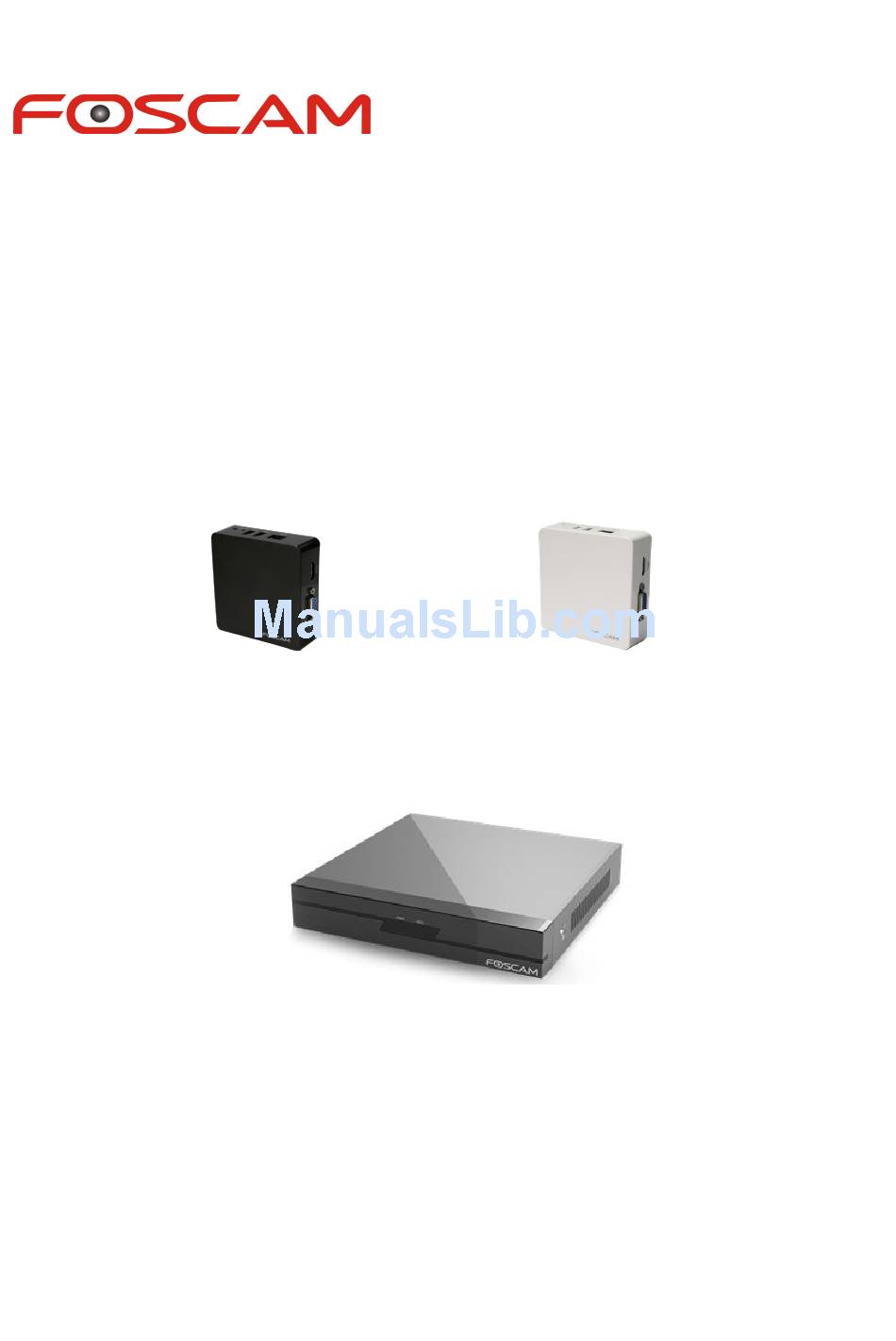

Network Video Recorder User Manual Model: FN3004H Model: FN3004H Color: Black Color: White Model: FN3104H Version:V1.2...
Page 2: Table Of Contents
2.1 FN3104H............................11 2.1.1 Package Contents........................11 2.1.2 Installing the HDD........................ 12 2.1.3 Device Structure........................13 2.1.4 IR Remote Control Description..................15 2.1.5 Device Connection.......................17 2.2 FN3004H............................18 2.2.1 Package Contents........................18 2.2.2 Device Structure........................19 2.2.3 Device Connection.......................20 2.3 USB Mouse Operation........................21 3 GUI................................23 3.1 Login..............................23 3.2 Setup Wizard............................24...
Page 3 4.4.5 System Management......................102 4.5 Playback............................104 5 Appendix..............................107 5.1 HDD Capacity Calculation......................107 5.2 Common operations........................108 5.3 Specifications............................114 5.4 List of Third-party list........................117 5.5 FAQ..............................119 5.6 Glossary............................122 5.7 CE & FCC............................123 5.8 WARRANTY............................124 5.9 Obtaining Technical Support......................127 www.foscam.com...
Page 4: Preface
 Because the actual environment may be discrepant, the actual values of some data may be different from the values provided in the manual. If there are any question or dispute, the final interpretation of FOSCAM prevails.  If you do not follow the manual during operation, you will bear any loss caused thereof.
Page 5: Important Safety Instructions
 Please press power button to shut down the NVR instead cutting off the power directly to avoid to damaged the storage device.  Do not take the device apart when it is operating(or connecting to power).  Ensure power cable corresponds to the model of the NVR which produced by Foscam. www.foscam.com...
Page 6: Overview
Recording can be classified into schedule recording, manual recording, and alarm recording from low priority to high priority. The three types of recording cannot exist at the same time. If recording of any two types is enabled at the same time, only the recording of www.foscam.com...
Page 7  Alarm recording is classified into I/O alarm recording and motion detection recording. - I/O Alarm Recording(FN3004H does not supports this function) After the external alarm function is enabled and the linkage recording channel is selected, I/O alarm recording is enabled when an external alarm is triggered in the trigger time segment.
Page 8: Ipc Management
When an object moves in the detection time segment and detection area, an alarm is triggered, the NVR system enables motion detection recording, and the alarm output device outputs the alarm(FN3004H does not supports this function), sends pictures to your mailbox, and uploads pictures to your FTP server.
Page 9: Relevant Version
 Support local GUI output and perform shortcut operations through the mouse.  The NVR may also be controlled with the included IR remote control.(FN3004H does not  supports this function) Three roles can access the NVR, which are respectively visitor, operator, and ...
Page 10: Common Operations
There are two proper ways to shut down the NVR. To shut down the NVR:  Shutting down the NVR by the IR Remote Control(Except for FN3004H). Press and hold the POWER button for 3 seconds by the IR Remote Control, and the device will enter power-off process.
Page 11 NVR.  Local GUI: Choose “Menu > System” in the Menu interface, then click Factory Reset in the System interface.  Web GUI: Choose “ (Parameter Configuration) > System Management > Factory Reset”. The Factory Reset page is displayed. www.foscam.com...
Page 12: Device
7200 RPM for FN3104H. But Do not buy a HDD with automatic sleep function, so as to maintain reliable and stable running of the disks.  It is highly recommended to use FOSCAM IPC, or the third-party IPC which support ONVIF protocol. www.foscam.com...
Page 13: Installing The Hdd
Connect one end of the data cable and power cable to the motherboard of NVR and the other end to the HDD. Place the HDD on the bottom of the device using the provided screws and then fasten the screws on the bottom to fix the HDD. www.foscam.com...
Page 14: Device Structure
NVR User Manual Re-install the cover of the NVR and fasten screws. 2.1.3 Device Structure Front Panel Icon Name Description POWER Status Indicators The Power LED on the front panel will light in green after complete the wiring. www.foscam.com...
Page 15: Rear Panel
The red LED is on: The HDD is not installed or cannot be detected. Blinks green: The HDD is writing, the NVR is recording. The green LED is on: The HDD is in the normal status and the NVR does not record. Rear Panel www.foscam.com...
Page 16: Ir Remote Control Description
NO: alarm output end that is always on. C: common alarm output end. 2.1.4 IR Remote Control Description The NVR may also be controlled with the included IR remote control. Note: Make sure you have installed batteries properly in the remote control. And you have www.foscam.com...
Page 17 Play/Pause key. Next key Play the next video file. Fast Multiple fast forward speeds and normal forward key playback. Play/Pause During pause, press the key to play. During play, press the key to pause. www.foscam.com...
Page 18: Device Connection
NVR, the power indicator on the front panel will light on, indicating the power is connected right. Note Please use the power adapter included in the package to avoid any damage to the equipment. Network Access During the network connection, you should provide sufficient bandwidth to ensure the www.foscam.com...
Page 19: Fn3004H
Plug USB mouse into one of the USB interfaces of the NVR. Connect to the Storage device Plug USB Storage device into one of the USB interfaces of the NVR. FN3004H 2.2.1 Package Contents When you receive the NVR, please open the box and check whether there is any visible damage to the NVR appearance.
Page 20: Device Structure
NVR User Manual ● Warranty Card×1 The package contents list does not contain a mobile hard disk, IPC and mouse for FN3004H. It is highly recommended that the Mobile Hard Disk should be used with Seagate and  Westeam Digital and over 5400 RPM for FN3004H.
Page 21: Device Connection
The Power LED on the front panel will light in green Indicators after complete the wiring. Power Supply 5VDC power supply. 2.2.3 Device Connection Connect to the Power Supply You should first make sure that the AC voltage connected with the NVR power adapter www.foscam.com...
Page 22: Usb Mouse Operation
Plug USB mouse into one of the USB interfaces on the rear panel of the NVR. The mouse should automatically be detected. The operation of the mouse: Name Action Description Left-Click Single-Click Menu or window: select and enter. Double-Click Preview mode or Playback mode: Switch between single-screen and multi-screen. www.foscam.com...
Page 23 Time or Area box: Select the time or zone range. Drag Time bar: Drag time bar. Right-Click Single-Click Live view: Show menu. Menu: Exit current menu to upper level menu. Note The Single-Click mentioned in this article is refer to the left mouse click. www.foscam.com...
Page 24: Gui
Step1 Turn on the power switch on the rear panel, the Power LED indicator turns on. Note For FN3004H, When you connect the power adapter to power input interface of NVR, the NVR begin starting up. Step2 After start up, the login window will pop up.
Page 25: Setup Wizard
The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the Setup Wizard at that moment, right click the mouse to quit. Procedure Step1 Select Language, If you don’t want to use the Setup Wizard at next time, uncheck the Setup Wizard checkbox. www.foscam.com...
Page 26 Time Zone: Select the time zone for your region from the drop-down menu. There are two method about setting time. - If you select the Automatically synchronize with and Internet time server, you need configure the NTP Server information。 www.foscam.com...
Page 27 Select the HDD and initialize the HDD, click the Format Local Disk button to format the disk for recording. Click the Format USB Disk button to format the disk for backup. Initialization removes all the data saved in the HDD. Step4 Click next button, you can add the IPC device for your NVR. www.foscam.com...
Page 28 After completing the input the username/password on the input keyboard, click the right mouse button (or click the Enter button on the input keyboard) to save and exit the input keyboard. Click OK button to exit the IP Camera Setting window. You can find the IP Camera in the IP Camera List. www.foscam.com...
Page 29: Shortcut Menu
Live view shows you the video image getting from each IP camera in real time. The NVR automatically inputs Live View mode when powered on. It is also at the very top of the menu hierarchy, thus pressing the ESC many times brings you to the Live View mode. www.foscam.com...
Page 30: Color Settings
Click Color Settings to choose a channel to alter the color, then adjust the parameters of hue, brightness, contrast, saturation and sharpness. Playback You can display the video of every a channel for playback. For details, see "0 3.4.2 www.foscam.com...
Page 31: Manual Record
IP camera. For details, see "03.4.1 IPC Manage". If a channel is connected to IPC which have the PTZ function, you can control the PTZ(Pan, Tilt, Zoom) of the IP Camera. In PTZ control settings, select the channel from the drop-down list. www.foscam.com...
Page 32 The Sequential interval is 3s by default. You can also choose “Menu > Settings > Display” and set the “Interval” parameter for sequential interval. Shutdown Click Shutdown to enter the Shutdown page. You can log out, reboot or shut down the www.foscam.com...
Page 33: Menu
You can search and add the online IP cameras by following the operation. After the adding of the IP cameras, the basic information of the camera lists in the IP Camera List, and you can configure the basic setting of the IP cameras. www.foscam.com...
Page 34 IP Camera name and password to connect. If you did not find the online IP Camera which you want to connect, please click Refresh button to find the online IP Camera. Adding IP Camera 1． Select the IP Camera in the IPC Manager list. www.foscam.com...
Page 35 2.Input the Username and Password of the IPC. 3.Select the Protocol fo the IPC 3． Click OK button to finish adding. And the camera and its information will be added in the IP Camera list. 4． Click Save button to take effect. www.foscam.com...
Page 36 You can select the Channel and Protocol. Input the IP Address, Username, Password, HTTP Port and Media Port. Then click OK button to finish adding. And the camera and its information will be added in the list of cameras. Click OK button to take effect. www.foscam.com...
Page 37: Playback
2: Select the Record Type, and check the checkbox from the Channel01, Channel02, Channel03 and Channel04. 3: Click Search button to search the matched recorded files. If there are search results, then they will be shown in the time bar area. 4: Manage the recording. Button Description www.foscam.com...
Page 38 5:Playback time and maximized video playback Button Description Zoom-in time axis. Left moving time axis. Right moving time axis. Zoom-out time axis. Make the playing video maximized. After the video is maximized, right-click to exit the currently maximized video. www.foscam.com...
Page 39: Backup
Record will change from No to Yes. After the USB-flash disk connect to the NVR by the USB interface. Select the Object from drop-down list. Select the backup select from drop-down list. Click Backup button and start backup. www.foscam.com...
Page 40: About
When searching for the recording information, you can also select "backup page" or "backup all" to achieve bulk backup. 3.4.4 About Choose ”Menu > About” in the Menu interface. The About interface is displayed. You can view the firmware version, manage HDD Info and system log. www.foscam.com...
Page 41: Firmware Version
You can view the Device Type, Device Name and Firmware Version. HDD Info Choose ”Menu > About > HDD Info” in the Menu interface. The HDD Info interface is displayed. You can see, refresh, format backup disk and format record disk. www.foscam.com...
Page 42: System Log
Choose ”Menu > About > System Log” in the Menu interface. The System Log interface is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be viewed and exported at any time. www.foscam.com...
Page 43 The system saves the log to the mobile storage device. For example, 20140320-134022_01.log indicates that a log is generated at 2014-3-20 13:40:22. When searching for the log information, you can also select "backup page" or "backup all"to achieve bulk backup. www.foscam.com...
Page 44: Settings
Choose ”Menu > Settings” in the Menu interface. The Settings interface is displayed. You can configure the general, video, schedule, network, display, Alarm Settings and OSD. General Choose ”Menu > Settings > General” in the Menu interface. The General interface is displayed. You can configure the basic information of the NVR. www.foscam.com...
Page 45 Click Save button to take effect. Video Choose ”Menu > Settings > Video” in the Menu interface. The Video interface is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. www.foscam.com...
Page 46 The time between last key frame and next key frame. The shorter Key Frame the duration, the more likely you will get a better video quality, but Interval at the cost of higher network bandwidth consumption. Click save button to take effect. www.foscam.com...
Page 47 4． Click and drag the mouse in the relative positions. The selected area is red. 5． Click Save button to take effect for one certain channel. The Icon indicate starts schedule recording at the right bottom of the screen for certain channel. 【 Disable Schedule Recording】 1． Select channel from drop-down box list. www.foscam.com...
Page 48 Choose ”Menu > Settings > Network” in the Menu interface. The Network interface is displayed.You can configure the information of Network, DDNS, E-Mail, FTP. 【 Network】 Check the Network checkbox, you can configure the network information of the NVR. www.foscam.com...
Page 49 How to configure the IP Address, Subnet Mask, Gateway, Primary DNS Server, Secondary DNS Server, please refer to “ Appendix II Common operations > 2. Configure the IP Parameters”. 【 DDNS】 Check the DDNS checkbox, you can configure the DDNS information of the NVR. www.foscam.com...
Page 50 NVR User Manual The FOSCAM NVR has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. Note Here take a6747.myfoscam.org for example. Enable DDNS： Check the DDNS checkbox to enable this feature.
Page 51 The user account of sender ’s Email for SMTP server SMTP Username authentication. The password of sender ’s Email for SMTP server SMTP Password authentication. Sender The Email address of sender. The Email address of user to be notified. you can set 4 Receiver receivers www.foscam.com...
Page 52 Default port is 21.You can also change this port manually FTP Port through FTP server. FTP Mode Here supports two modes: PORT and PASV. FTP Username The user account of FTP server. FTP Password The user password of FTP server. www.foscam.com...
Page 53 If the test success, you can see the success information. Display Choose ”Menu > Settings > Display” in the Menu interface. The Display interface is displayed.You can configure the display mode, Resolution, Transparency, Mouse Sensitivity and Interval for the NVR. www.foscam.com...
Page 54: Alarm Settings
Cyclically display the interval of channel preview pages. Alarm Settings 【 IO Alarm】 Note:FN3004H do not support the IO Alarm function. Choose ”Menu > Settings > Alarm Settings > IO Alarm” in the Menu interface. The IO Alarm interface is displayed.
Page 55 2． Check Select checkbox to select the area. 3． Drag and draw the area for motion detection by left mouse. Note:Check Clear checkbox and If you clear the area, then drag and draw the area by mouse. www.foscam.com...
Page 56 When the IO Alarm is triggered, you can choose whether to upload detection picture to FTP server. Note: Make sure you have set FTP. Linkage Record Channel Check the checkbox to start recording for the certain channel. Step6 Click Save button to take effect. -------End www.foscam.com...
Page 57: Motion Detection
In this chapter, you can follow the steps to schedule a record which triggered by the detected motion. Choose ”Menu > Settings > Alarm Settings > Motion Detection” in the Menu interface. The Motion Detection interface is displayed. Step1 Select channel from drop-down box list. Step2 Check the checkbox to enable motion detection function. www.foscam.com...
Page 58 Alarm Output Note: Make sure you have installed the alarm output device. FN3004H do not support Alarm Output function. When the Motion detection is triggered, you can choose whether to send e-mail. Send E-Mail Note: Make sure you have set Email.
Page 59 2． Check Select checkbox to select the area. 3． Drag and draw the area for motion detection by left mouse. Note:Check Clear checkbox and If you clear the area, then drag and draw the area for motion detection by mouse. www.foscam.com...
Page 60: Other Alarm
When the motion has been detected during the detection time in the detection area, the NVR will alarm and adopt the corresponding alarm linkage. Note: You must set the detection area and detection schedule, or else there is no alarm anywhere and anytime. -------End 【 Other Alarm】 www.foscam.com...
Page 61 Check the Buzzer checkbox if you want to enable buzzing Buzzer sound of the NVR device. Click Save button to take effect. Choose ”Menu > Settings > OSD” in the Menu interface. The OSD interface is displayed. You can configure the OSD(On Screen Display) information. www.foscam.com...
Page 62 Check the Enable OSD checkbox to enable OSD function. 【Set Shelter Area】 If the IPC device type is MJ or IPC protocol type is ONVIF, the feature is invalid. 1． Click Select Shelter Area button and it pop up a window. www.foscam.com...
Page 63: System
Click Save button to take effect. 3.4.6 System Choose ”Menu > System” in the Menu interface. The System interface is displayed. You can manage the NVR device about User Account, Upgrade, Factory Reset, Para export, Auto Restore, Log Out, Reboot, Shutdown. www.foscam.com...
Page 64: User Account
The administrator has the permission to add and delete all users and configure user parameters. You can add, modify, delete username/password or distribute authority for users. The valid value range of Username and Password is 1 ~ 64 characters, it contains the English letter, numeric and symbol. www.foscam.com...
Page 65 Don’t shut down the power during upgrade. After upgrading, you can see the upgrade result. Your current system version will be displayed on your screen. You may go to the “Menu > About > Firmware Version” Page to check for the latest firmware versions available. www.foscam.com...
Page 66: Factory Reset
NVR device will reboot automatically. Note  Do not disturb the update process by turning off the power.  All current settings will be overwritten when importing a configuration file. If a bad configuration file is uploaded the NVR may not work. www.foscam.com...
Page 67: Log Out
Choose ”Menu > System” in the Menu interface, then click Shutdown in the System interface. Click OK button in the pop-up message box, the NVR system will shut down. It is recommended that cut off the power after shut down. You can start up/shut down the NVR by the IR Remote Control. www.foscam.com...
Page 68: Web
Step2 Find the folder “Search Tool” in the Foscam CD, then go to the the folder”For windows OS” or “For Mac OS”. Copy and paste the search tool file to your computer, or drag it onto your desktop.
Page 69 Click Run button, it will pop up the message below the page, as shown in the following figure. Click Run button to install the add-on. Please follow the installation instructions. (Please close the browser during installation.） Step5 After installing the add-on, refresh the browser and enter the login interface. www.foscam.com...
Page 70 When you log in for the first time, it will come to the operating of modify the username and password automatically.Enter the New Username, New password and Confirm the password. Step9 Click Modify button, you will see the Live View interface of the NVR client. -------End www.foscam.com...
Page 71: Live Video
Disconnect the link between the client page of the current browser and the NVR server. Channel In channels of the NVR, you can add IPC devices. 01/02/03/04 At present, up to four channels can be monitored, that is, up to four IPC devices can be added. www.foscam.com...
Page 72 You can configure the color of the IP Camera. Play all Play monitoring videos in all channels. All off Close monitoring videos in all channels. 1 way Click this button, It will display one channel in the live view interface. www.foscam.com...
Page 73 Horizontal: The IP camera will rotate from left to right. : Start cruise. : Stop cruise. If you want to define or change the cruise trace, please go to “Parameter Configuration > Service configuration > Preset Settings”. 【 How to do cruise?】 www.foscam.com...
Page 74 You can do all the preset positions with this method. Step3 If you want to see one preset position you have set, only select the preset position name from the preset drop-down list, and click button, the IP camera will go to the preset position. www.foscam.com...
Page 75: Parameter Configuration
Firmware Version You can view the NVR system information, or modify the Device Name. Choose ” (Parameter Configuration) > Local settings > Firmware Version”. The Firmware Version page is displayed. Parameter Description Device Type The product type of NVR. www.foscam.com...
Page 76: System Time
Time Protocol (NTP) Server can be configured on your NVR to ensure the accuracy of system date/time. Choose the one that is closest to your NVR.  If you uncheck the Automatically Synchronize With Internet Time Server checkbox, configure www.foscam.com...
Page 77 Select the time format from the drop-down list. Step6 Click Save button to take effect. -------End Network You can configure the network information of the NVR. Step1 Choose ” (Parameter Configuration) > Local settings > Network”.The Network page is displayed. Step2 Configure the network parameter. www.foscam.com...
Page 78 The system can be configured to send an email to the designated users if an alarm or motion event is detected etc.. Before you configure the Email settings, the NVR must be connected to a local area network (LAN) that maintains an SMTP mail server. The network must also be connected www.foscam.com...
Page 79 Internet depending on the location of the e-mail accounts to which you want to send notification. Step1 Choose ” (Parameter Configuration) > Local settings > Email”. The Email page is displayed. Step2 Configure the Email parameter. www.foscam.com...
Page 80: Ftp Settings
The system can be configured to send an picture to the FTP server if an alarm or motion event is detected etc.. Step1 Choose ” (Parameter Configuration) > Local settings > FTP Settings”. The FTP Settings page is displayed. www.foscam.com...
Page 81 If the test success, you can see the success information. -------End DDNS The FOSCAM NVR has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name. Choose ”...
Page 82 Video Encode Choose ” (Parameter Configuration) > Local settings > Video Encode”. The Video Encode page is displayed. You can configure the encoding scheme parameters of the IP Camera, the NVR system will synchronize your IP camera with encoding scheme. www.foscam.com...
Page 83 Choose ” (Parameter Configuration) > Local settings > System Log”. The System Log page is displayed. The operation, alarm, exception and information of the NVR can be stored in log files, which can be searched and viewed at any time. www.foscam.com...
Page 84: Device Management
LAN with NVR, you may add it in one button with IP Camera’s user name, password and port number. 【Auto Adding IPC】 Choose ” (Parameter Configuration) > Device Management > IP Camera Setup”. The IP Camera Setup page is displayed. www.foscam.com...
Page 85 Choose the IP Camera added in the list of cameras. Step4 Input the Username and Password of the IPC. Step5 Click Add button to finish adding. -------End 【 Manually Adding IPC】 Step1 Select any one of the four channels. www.foscam.com...
Page 86: Hard Disk Information
 log. Format Local Disk:Click the Format Local Disk button to initialize the disk for recording.  Note: Initializing the HDD will erase all the data saved on it, please backup the data before formatting hard disk if necessary. www.foscam.com...
Page 87: Service Configuration
NVR can analyze it and perform many actions to handle it. Enable motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, output alarm, send Email, upload FTP, buzzer alarm and so on. www.foscam.com...
Page 88 Motion Detection page is displayed. Step1 Select channel from drop-down box list. Step2 Check the Enable checkbox to enable motion detection function. Step3 Select the Sensitivity and Detection Interval. The higher the sensitivity, the NVR will be more easily alarmed. www.foscam.com...
Page 89 When the IO Alarm is triggered, you can choose whether to alarm via the alarm output device. Notes: Alarm output FN3004H do not support Alarm output function. Make sure you have installed the alarm output device. When the Motion detection is triggered, you can choose whether to send e-mail.
Page 90 You can choose a week, one day of a week, the certain time period for the motion detection alarm. Choose all Time Period  Click the black button up the MON, you will see all time range turn red. When something moving in the detection area at anytime, the NVR will alarm. www.foscam.com...
Page 91 For example, click TUE, the all column of TUE turns to red, that means during Tuesday whole day, when something moving in the detection area, the camera will alarm. Click here  Choose the Certain Time Period Press the left mouse and drag it on the time boxes, you can select the serial area. www.foscam.com...
Page 92 The recording files will be save to the HDD or mobile store device. The Icon indicate starts schedule recording at the right bottom of the screen for certain channel. Step1 Choose ” (Parameter Configuration) > Service Configuration > Record Plans”. The Record Plans page is displayed. www.foscam.com...
Page 93 Click Save button to take effect. -------End IO Alarm Note:FN3004H do not support the IO Alarm function. External alarm input devices (such as door status sensor, infrared sensor, and smoke sensor) are connected through the alarm input interface and external alarm output devices (such has local audible alarm and visual alarm) are connected through the alarm output interface.
Page 94 Select the Alarm Input from drop-down box list. Step3 Check the Enable checkbox to enable IO Alarm function. Step4 Set the Duration from drop-down box list. Step6 Check the checkbox to select the linkage method. You may refer to follow table for details of linkage methods. www.foscam.com...
Page 95 Step1 Choose “ (Parameter Configuration) > Service Configuration > Other Alarm”,The Other Alarm page is displayed. Step2 Select Type form drop-down box list. Step3 (Option)Check the Buzzer checkbox if you want to enable buzzing sound of the NVR device. www.foscam.com...
Page 96 Click Save button to take effect. -------End You can configure the OSD (On screen Display) information of the NVR. Step1 Choose ” (Parameter Configuration) > Service Configuration > OSD”,The OSD page is displayed. Step2 You can configure the follow parameters. www.foscam.com...
Page 97 Click Save button to finish the mask area setting. The mask area will be marked with black. -------End Pan & Tilt Speed If the IP Camera has the PTZ function, you can configure the pan and tilt speed of the IP www.foscam.com...
Page 98 (Parameter Configuration) > Service Configuration > Cruise Settings”. The Cruise Settings page is displayed. There are two default cruise tracks: Vertical and Horizontal.  Vertical: The IP Camera will rotate from up to down  Horizontal: The IP Camera will rotate form left to right. www.foscam.com...
Page 99 Add button, you can see the preset point has been added to the cruise track on the cruise track page. You need to add two or more preset points to the cruise track. How to customize the preset, please refer to “4.3 Live Video > Preset settings”. www.foscam.com...
Page 100 4．Click OK button and the cruise track will take effect. You can add other cruise track as the same method. After add the cruise track, back to the surveillance window of IP Camera, select Cruise, here you can see all cruise tracks you have added. www.foscam.com...
Page 101: User Management
You can see the cruise track which you want to query. Note:The default cruise track cann’t be deleted. 4.4.4 User Management User Account User levels by permission from low to high are visitor, operator, administrator. Different user levels have different operating permission.The default user name of device www.foscam.com...
Page 102 4． Click Save button to save the settings and the added new user will be displayed on the list. 【 Changing Password of Admin】 1． In the Password text field, delete the old password, input the new password. 2．Click Save button to take effect. www.foscam.com...
Page 103: System Management
Import button. The loading process takes about 50 seconds, After having finished the import of configuration files, the NVR device will reboot automatically. Note  Do not disturb the update process by turning off the power.  All current settings will be overwritten when importing a configuration file. If a bad www.foscam.com...
Page 104 (Parameter Configuration) > System Management > Factory Reset”. The Factory Reset page is displayed. Click Factory Reset button, then click OK button in the pop-up message box and all parameters will return to factory settings. The NVR device will reboot automatically. www.foscam.com...
Page 105: Playback
(Parameter Configuration) > System Management > Auto Restore”. The Auto Restore page is displayed. You can configure the Date and Time. The NVR system will be maintained at the setting time. Playback Choose “ (Playback)”, you can play the recording file of the NVR. www.foscam.com...
Page 106 Fast forward. The fast forward speed can be twice, 4 times, 8 times, 16 times or 32 times of the normal playing speed. Click this button. The multiple of normal playing speed is displayed in the upper right corner of the playback page. For example, “>> X2” indicates the current playing www.foscam.com...
Page 107 Full screen. Make the playing video maximized. After the video is maximized, press ESC to exit full screen. 4： Playback time You can move the mouse to a specific time axis and click to watch the playback. Icon Description Zoom-in time axis. Zoom-out time axis. www.foscam.com...
Page 108: Appendix
- In the Web interface, choose”Parameter Configuration > Local settings > Encoding Scheme”, view the value of the Bit Rate. 【 Example】 If you select 4M for the bit rate and select four channels for recording and one week of www.foscam.com...
Page 109: Common Operations
User can also use third part DDNS, such as www.no-ip.com, www. 3322.com Here take www.no-ip.com for example: ① Step 1, Go to the website www.no-ip.com to create a free hostname Firstly: Login on www.no-ip.com and click No-IP Free to register. www.foscam.com...
Page 110 NVR User Manual Click here to register . Figure 4.27 Please register an account step by step according to instructions on www.no-ip.com. After registration, please login your email which used to register. You will receive an email from website, www.foscam.com...
Page 111 ACCOUNT as indicated in email. Secondly: Login the link with the registered username and password to create your domain name. Figure 4.28 Please create the domain name step by step according to instructions on www.no-ip.com www.foscam.com...
Page 112 NOTE : If you have set Third Party DDNS successfully ,the Foscam Domain Name will be invalid. The Third Party DDNS and the Foscam Domain Name cannot work at the same time, the last time you configured will take effect.
Page 113 The IP address of the NVR must be in the range of the router address pool. Log in to the router client through the browser and select “DHCP server > DHCP service”. On the DHCP page, you can view the start address and end address of the address pool. www.foscam.com...
Page 114 The subnet mask of the NVR must be the same as the subnet mask in LAN port status. The default gateway of the NVR is the same as the IP address in LAN port status. The primary DNS and secondary DNS can be the same as the DNS in WAN port status. www.foscam.com...
Page 115: Specifications
4-ch 720P/960P HD IP Camera Capitable Camera Foscam HD IP Cameras and other brand ONVIF-embedded cameras supported Foscam MJPEG cameras to be added by firmware upgrade Video Output Decoding Resolution (1080P)1920 x 1080, (960P)1280 x 960, 720P(1280 x 720), VGA(640 x 480), VGA(640 x 360), QVGA(320 x 240),...
Page 116 ITEMS FN3104H Video Input IP Video Input 4-ch 720P/960P HD IP Camera Capitable Camera Foscam HD IP Cameras and other brand ONVIF-embedded cameras supported Foscam MJPEG cameras to be added by firmware upgrade Video Output Decoding (1080P)1920 x 1080, (960P)1280 x 960, 720P(1280 x 720),...
Page 117 Disk Management Set the video coverage strategy, format disk Motion Detection Alarm area and schedule settings User Accounts User account management Operating System Microsoft Windows XP, 7, 8 System Requirements Microsoft IE8 and above version or compatible browser; Browser www.foscam.com...
Page 118: List Of Third-Party List
500GB 7200RPM 16MB SATA3（ Blue） WD10EZEX 1TB 7200RPM 64MB SATA3（ Blue） WD10EURX 1TB 7200RPM 64MB SATA3（ Green） WesternDigital WD20EZRX 2TB 5400RPM 64MB SATA3 （ Green） WD4001FAEX 4TB 7200RPM 64MB SATA3（ Black） WD40EURX 4TB 7200RPM 64MB SATA3 Seagate ST500DM002 500GB 7200RPM 16MB SATA3 www.foscam.com...
Page 119 STBV4000300 New Seagate Expansion 4TB, Mobile Hard Disk 5400RPM USB3.0 List of Third-party IP Cameras The FOSCAM NVR supports its private protocol and ONVIF protocol. It is suggested that using the third party brand IP Camera as follows: Brand Model...
Page 120: Faq
Choose “Menu > About > HDD Info” in the GUI interface, view the HDD status. 3. Why recording is not performed after motion detection is enabled? On the “Motion Detection” page, check whether the following are correctly set:  Check whether the motion detection channel is correct. www.foscam.com...
Page 121 8. Why can’t video files be downloaded during video playback or downloaded files cannot be played back properly? To save consumed resources, the server limits concurrency of video playback and file download. In this case, stop video playback and then download files or play back videos after www.foscam.com...
Page 122 4 * 960P, the IPC display mode can not be 1080P. 12. Why does the Web client prompt the message”Plugins are not found, Click me to download” or “Find a new Plugins, Click me to download” after installing plug-in? www.foscam.com...
Page 123: Glossary
Network Time A protocol designed to synchronize the clocks of Protocol computers over a network. Network Video An NVR can be a PC-based or embedded system used for Recorder centralized management and storage for IP cameras. www.foscam.com...
Page 124: Ce & Fcc
Any changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. CE Mark Warning This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. www.foscam.com...
Page 125: Warranty
No warranty service is provided unless the product is returned to an authorized return center in the region where the product was first shipped by FOSCAM or to the point-of-purchase, which may have regional specific warranty implications.
Page 126 Replaced products are warranted from the balance of the former warranty period. Warranty Forfeiture  Warranty is void if purchase from unauthorized distributor or reseller.  Warranty is void if trade-mark, serial tags, product stickers have been removed, altered or tampered with. www.foscam.com...
Page 127 Repair Service Out Of Warranty  FOSCAM provide extra repair service for product that out of warranty, it is chargeable. The total fee contains device cost and service fee. Device cost (including accessories) is the standard uniform price provide by FOSCAM.
Page 128: Obtaining Technical Support
FOSCAM, shall be the repair or replacement of defective parts. If FOSCAM lists a product on its website specification in error or that is no longer available for any reason, FOSCAM reserves the right to explain it without incurring any liability.
