JabloCom JabloPhone GDP-04i User Manual

Gsm desktop phone
Hide thumbs Also See for JabloPhone GDP-04i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

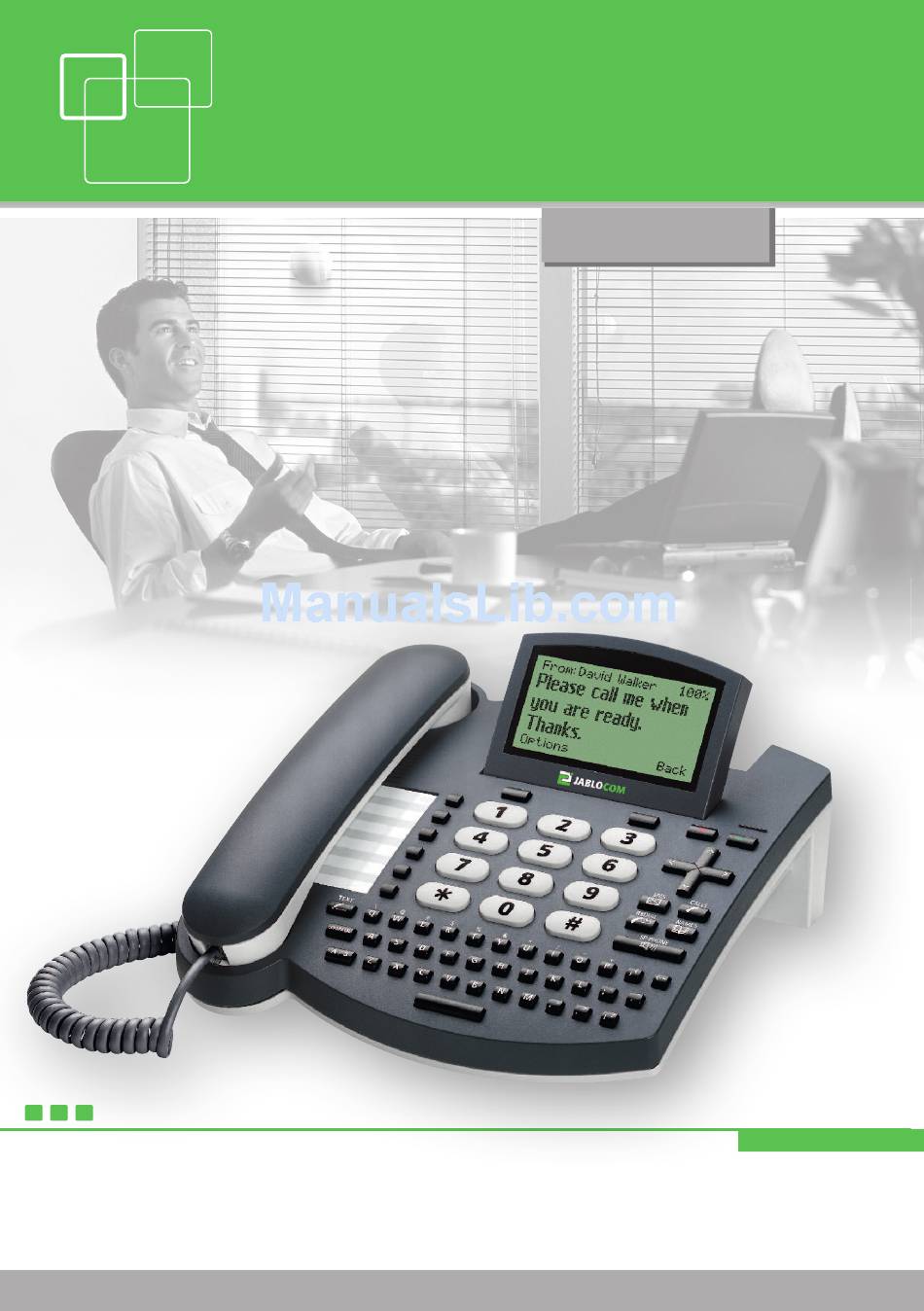

User's Guide
GDP-04i
GSM
Desktop Phone

Advertisement

Table of Contents
loading

Related Manuals for JabloCom JabloPhone GDP-04i

Summary of Contents for JabloCom JabloPhone GDP-04i

  • Page 1 User’s Guide GDP-04i Desktop Phone...

  • Page 2: Table Of Contents

    INDEX INDEX ................1 Mute ................. 7 Headset Mode ..............7 Getting Started – first using ........1 Phonebook ..............7 Check the contents of the package ........ 1 Insert the SIM card ............1 Settings ..............8 Install the backup battery ..........2 Phone settings ..............

  • Page 3: Install The Backup Battery

    Install the backup battery Connect the receiver cord Connect the power adaptor – switch the phone ON Phone is s t ar tin g… The message “ ” appears on the LCD after con- necting the power adaptor. If your SIM card is protected by a PIN code, the phone will require it. Enter the PIN code and confirm it by pressing the green key or selection key.

  • Page 4: Your Phone

    Your Phone Time and date New text message indicator Battery charging status Strength of the cellular network signal Missed calls indicator Name of the GSM network Selection keys – the current function is shown on the LCD Speed dial buttons CALL key CANCEL key Navigation key...

  • Page 5: Basic Call Functions And Phone Book

    BASIC call functions and phone book Making a call D ial Pick up the receiver, enter the phone number as on a regular fixed line phone and press the selection key below on the LCD. If you wait, without pushing any button, the number will then be dialed automatically. You may also press for hands free calling.

  • Page 6: Opening An Incoming Message

    For entering special symbols shown above the top line of the QWERTY keys (#, $, %, &, etc.), press together with a key from the top line of the QWERTY character keys. To enter a phone number from the phonebook into the text message, press button, find the desired contact and select the number to enter.

  • Page 7: Options

    If you want to enter a DTMF command only, it must be iniciated by a “P” character. Example: P*2121481#. Options O p tions Some special functions are selectable under the menu in the normal operating mode.  Silent mode / Normal mode This function allows switching to the silent mode where all sound alerts and rings are disabled.

  • Page 8: Call Transfer

    O p tions Pri - • To have a private conversation with one of the participants, press the selection key and select vate # S elec t . Scroll to the desired participant and press the selection key. Once you have finished the private O p tions Join c all s conversation, re-establish the conference by pressing the...

  • Page 9: Settings

    Up to 32 ASCII characters can be used for a First Name or Last Name. The total length of a Name should not exceed 44 charters. Since UTF-8 coding is used for name storage, usage of NON-ASCII specific characters will shorten the maxim length of the name. Up to 32 characters (+,0,1,2,3,4,5,6,7,8,9,A,B,C,D,X,P,*,#) can be stored in each phone number memory position.

  • Page 10: Message Settings

    You can find additional information and set advanced parameters in the menu. Find authorized service centre at www.jablocom.com/service.php  Firmware Version Displays information about hardware and software versions of your phone and its IMEI number. You may be asked by a service center or a hot-line service provider for this information.

  • Page 11: Pc Interface

    You can connect the GDP-04i to a PC equipped with MS Windows XP SP3 (32-bit or 64-bit edition) or MS Windows Vista SP2 (32-bit or 64-bit edition). Latest version of JabloTool can be downloaded from http://www.jablocom.com/download. Some extended Microsoft software components are required for JabloTool running: Microsoft .NET 2.0 All the above-mentioned programs are available on the JabloTool installation CD or can be downloaded for free from Microsoft web site before installation.

  • Page 12: Connecting Pc

    Warning: Be sure you have the administration rights to your computer before the start of the installation. Insert the CD delivered with the phone into your PC. If the installation program does not start automatically, run the Ins t all “Install.exe”...

  • Page 13: Firmware Update

    Firmware update GDP-04i offers an opportunity to upgrade the phone firmware through the Internet from JABLOCOM update server. Availability of a new firmware may be checked by JabloTool automatically or user can perform a manual check. If there is a new firmware available, you can update your phone using the Update Tool, an integrated part of JabloTool.

  • Page 14: Gdp-04I Rf - Wireless Control Guide

    Problem / Error message Solution Sending failed Your text message was not sent to the network correctly. Check the phone number and try again. If the error repeats, contact your service provider. Analogue line error - deactivated Possible problem on the attached analogue phone. Unplug the GDP-04i power adaptor, check your analog phone and its cable and reconnect power adaptor to the GDP-04i.

  • Page 15: Technical Specifications

    Limited warranty: Subject to the conditions of this Limited warranty JABLOCOM s.r.o. warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a customer and for a subsequent minimal warranty period under the national legislation in force. Should your product need warranty service, please return it to the dealer from whom it was purchased.

  • Page 16: Safety Instructions

    Battery and Charger Handling & Safety Use only JABLOCOM approved accessories and batteries. Do not connect incompatible products or accessories. Take care not to touch or allow metal objects, such as coins or key rings, to contact or short-circuit the battery terminals.
  • Page 17 When connecting to any other device, read its users guide for detailed safety instructions. When making an emergency call, ensure the phone is switched on and in service. Enter the emergency number, then press the green key. Give your location. Do not end the call until told to do so. This phone, like any wireless phone, operates using radio signals, which cannot guarantee connection in all conditions.
  • Page 18 Producer: JABLOCOM s.r.o. , Czech Republic www.jablocom.com © Copyright JABLOCOM s.r.o., 2008...
