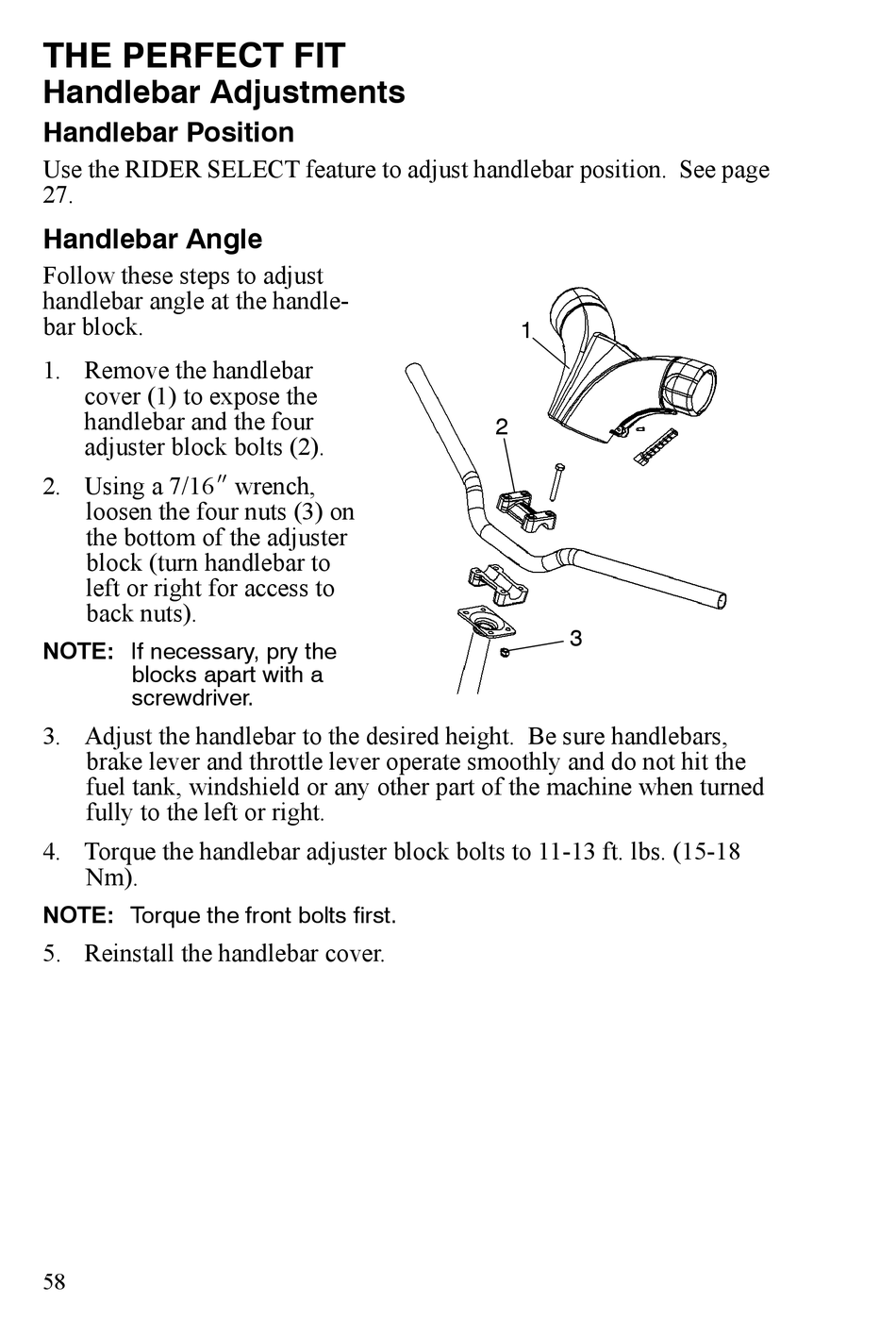

THE PERFECT FIT

Handlebar Adjustments

Handlebar Position

Use the RIDER SELECT feature to adjust handlebar position. See page
27.

Handlebar Angle

Follow these steps to adjust
handlebar angle at the handle-
bar block.
1. Remove the handlebar
cover (1) to expose the
handlebar and the four
adjuster block bolts (2).
2. Using a 7/16I wrench,
loosen the four nuts (3) on
the bottom of the adjuster
block (turn handlebar to
left or right for access to
back nuts).
NOTE: If necessary, pry the
blocks apart with a
screwdriver.
3. Adjust the handlebar to the desired height. Be sure handlebars,
brake lever and throttle lever operate smoothly and do not hit the
fuel tank, windshield or any other part of the machine when turned
fully to the left or right.
4. Torque the handlebar adjuster block bolts to 11-13 ft. lbs. (15-18
Nm).
NOTE: Torque the front bolts first.
5. Reinstall the handlebar cover.
58
1
2
3
