General Maintenance

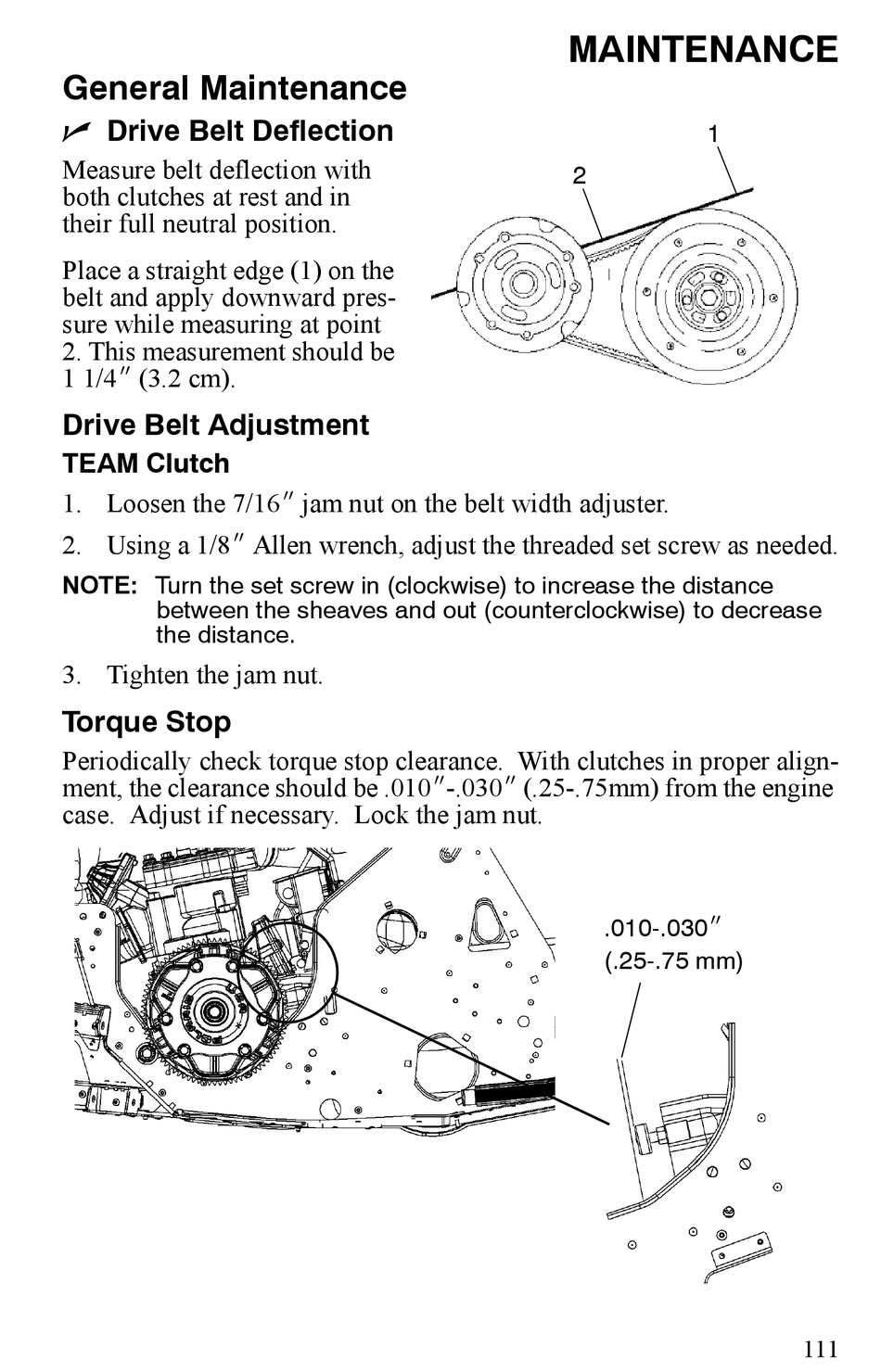

n Drive Belt Deflection
Measure belt deflection with
both clutches at rest and in
their full neutral position.
Place a straight edge (1) on the
belt and apply downward pres-
sure while measuring at point
2. This measurement should be
1 1/4I (3.2 cm).

Drive Belt Adjustment

TEAM Clutch
1. Loosen the 7/16I jam nut on the belt width adjuster.
2. Using a 1/8I Allen wrench, adjust the threaded set screw as needed.
NOTE: Turn the set screw in (clockwise) to increase the distance
between the sheaves and out (counterclockwise) to decrease
the distance.
3. Tighten the jam nut.

Torque Stop

Periodically check torque stop clearance. With clutches in proper align-
ment, the clearance should be .010I-.030I (.25-.75mm) from the engine
case. Adjust if necessary. Lock the jam nut.
MAINTENANCE
1
2
.010-.030
I
(.25-.75 mm)
111
