4 About the units and options

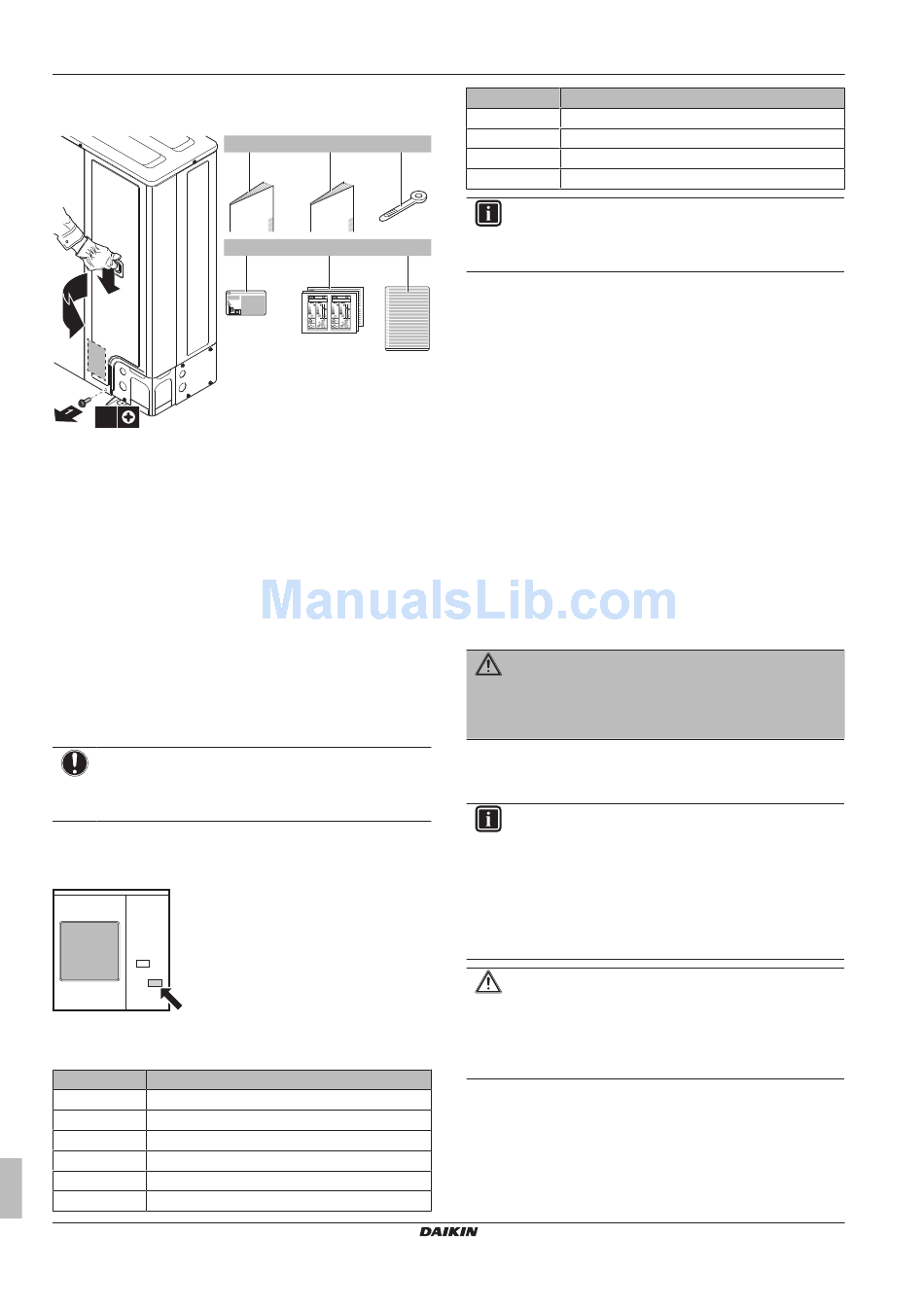

3.2.3 To remove the accessories from the
outdoor unit
2
3
1×
a General safety precautions
b Outdoor unit installation manual
c Cable tie
d Fluorinated greenhouse gases label
e Energy label
f Multilingual fluorinated greenhouse gases label (only for
AZAS71)
4 About the units and options
4.1 Overview: About the units and
options
This chapter contains information about:
▪ Identifying the outdoor unit
4.2

Identification

NOTICE
When installing or servicing several units at the same time,
make sure NOT to switch the service panels between
different models.
4.2.1

Identification label: Outdoor unit

Location
Model identification
Example: A Z A S 140 C7 V1 B [*]
Code
A Outdoor unit for pair use
Z Inverter
A Refrigerant R32
S Low-end series
71~140 Capacity class
M7 Model series
Installer reference guide
8
a b c
1× 1× 2×
d e f
1× 1×
1×
ENERG Y IJA ENERG Y IJA
IE IA IE IA
Explanation
Code
V1 Power supply: 1~, 220~240 V, 50 Hz
Y1 Power supply: 3N~, 380~415 V, 50 Hz
B European market
[*] Minor model change indication
INFORMATION
This unit is not intended for use in high humidity, low
ambient temperature regions. For these regions the RZAG
model is recommended.
5

Preparation

5.1

Overview: Preparation

This chapter describes what you have to do and know before going
on-site.
It contains information about:

▪ Preparing the installation site

▪ Preparing the refrigerant piping
▪ Preparing the electrical wiring
5.2 Preparing the installation site
Do NOT install the unit in places often used as work place. In case
of construction works (e.g. grinding works) where a lot of dust is
created, the unit must be covered.
Choose the installation location with sufficient place for carrying the
unit in and out of the site.
WARNING
The appliance shall be stored in a room without
continuously operating ignition sources (example: open
flames, an operating gas appliance or an operating electric
heater).
5.2.1 Installation site requirements of the
outdoor unit
INFORMATION
Also read the following requirements:
▪ General installation
"General safety precautions" chapter.
▪ Service space requirements. See the "Technical data"
chapter.
▪ Refrigerant piping
difference). See further in this "Preparation" chapter.
CAUTION
Appliance not accessible to the general public, install it in a
secured area, protected from easy access.
This unit, both indoor and outdoor, is suitable for
installation in a commercial
environment.
Explanation
site requirements. See the
requirements (length, height
and light industrial
AZAS71~140M_V1+Y1
Sky Air Active-series
4P486048-1A – 2017.08
