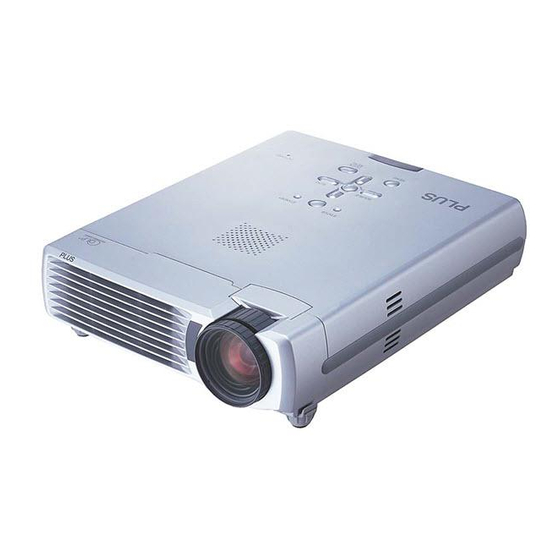

DATA PROJECTOR
U4-232
User's Manual
* DLP™ (Digital Light Processing) and DMD (Digital Micromirror Device) are registered trademarks of Texas Instru-
ments Incorporated (U.S.A.).
* VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.).
* S-VGA is a registered trademark of Video Electronics Standards Association.
* Microsoft, Windows, and PowerPoint are registered trademarks of Microsoft Corporation (U.S.A. and other countries).
* Macintosh is a trademark of Apple Computer Inc. (U.S.A.).
* TMDS is a trademark of Silicon Image, Inc.
Note that even in the absence of explanatory notes, serious attention is paid to the trademarks of the various companies
and to the product trademarks.
IMPORTANT
Advertisement
Table of Contents
Related Manuals for Plus U4-232h
Summary of Contents for Plus U4-232h
- Page 1 DATA PROJECTOR U4-232 User’s Manual * DLP™ (Digital Light Processing) and DMD (Digital Micromirror Device) are registered trademarks of Texas Instru- ments Incorporated (U.S.A.). * VGA and XGA are trademarks or registered trademarks of International Business Machines Corporation (U.S.A.). * S-VGA is a registered trademark of Video Electronics Standards Association.
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION Precautions Please read this manual carefully before using your PLUS Data Projector and keep the manual handy for future reference. TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PLUS SERVICE PERSONNEL. -
Page 3: Important Safeguards
Do not insert any metal objects such as a wire or screwdriver into the unit. If something should fall into the unit, immediately disconnect the power cable from the unit and have the object removed by a qualified PLUS service person. • Do not place any liquids on top of the unit. -
Page 4: Major Features
Great moving image playback capabilities using the same principles as DLP Cinema technology Plus DLP type projectors have the same makings as the DLP Cinema technology used in movie theaters. Because of their extremely fast response, even images with much movement – sports, movies – play smoothly without blurring. -
Page 5: Table Of Contents
Lamp Mode ... E-28 Keystone ... E-29 Adjustment of the Volume ... E-29 Enlargement of the Image and Video Movement ... E-30 Using the Presentation Timer ... E-31 Protecting the Projector with the Security Lock ... E-32 Using the Quick Menu ... E-34... -
Page 6: Table Of Contents
Table of Contents Menu Operations Menu Operation Method ... E-35 Names and Functions of Buttons Used for Menu Operations ... E-35 Menu Screen Names and Functions ... E-36 Performing Menu Operations ... E-37 Selecting Another Menu Name with Remote Control Operation ... E-39 List of Item Names Offering Input Selection and Adjustments/Settings ... -
Page 7: Checking The Supplied Accessories
Remove the main unit and the accessories from the box and check that the following items are included. Remote control (includes one button battery) [1] This controls the projector. Please remove the transportation insulation sheet at time of purchase. (See Page E-11.) DVI / Mini D-sub 15-pin conversion cable (2 m / 6.6 feet) [1]... - Page 8 Checking the Supplied Accessories Carrying case (for projector and accessories) [1] This is a case designed for storing the projector and its acces- sories. Use this carrying case when storing or moving the projector. User’s Manual (CD-ROM Edition) [1] User’s Manual (Simplified Edition) [1]...
-
Page 9: Names Of The Main Unit Parts
Names of the Main Unit Parts Exhaust vents Focus ring [E-25] Remote control sensor [E-12] Lens Front adjusters [E-25] Zoom ring [E-24] Front adjuster button [E-25] (There is also one on the right side.) Lens cap Remove before use. Attach the lens cap after use to protect the lens. - Page 10 Names of the Main Unit Parts STATUS indicator [E-21, 55] Buttons used in menu and quick menu operations SOURCE button [E-26] MENU button [E-35] Speaker MOUSE connector A separately sold “VR-100 Remote Mouse Set” (ordering code: 28-052) is required to use the MOUSE connector.
-
Page 11: Names Of The Remote Control Parts
Names of the Remote Control Parts STANDBY button [E-21, 23] This button is used to switch ON the power and set the unit to the STANDBY mode. Buttons used for input selection [E-26] RGB button and VIDEO button (VIDEO / S-VIDEO) MUTE button [E-28] (Temporarily cancels the video and audio) -
Page 12: Preparing The Remote Control
Preparing the Remote Control Button Battery Replacement Using the remote control for the first time The battery compartment is fitted with a transportation insulation sheet at the time of shipping. Pull out the sheet and remove it. The remote control is now ready for use. Replacement Method (A) With the knob pressed to the right side, (B) draw out the... -
Page 13: The Procedure Up To Projecting To The Screen
When making connections with the video equipment’s YCbCr connector or YPbPr connector, see “Connections with Component Signals” on Page E-19. When playing the audio through the built-in speaker of the projector, see “Connections with Audio Connectors” on Page E-20. Opening the lens shutter or lens cap Connecting the power cable and switching on the power See “Operating”... -
Page 14: Placement Guide
Placement Guide • Use this information as a guide to find out about the screen size when the projector is placed at a certain location, or to find out the approximate size of a screen that will be required. • The projection distance over which focussing is adjustable is 1.20 m (3.9 feet) to 13.84 m (45.41 feet). The projector should be placed within this range. -
Page 15: Connecting Personal Computers And Video Equipment
• The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Digital” using the menu sequence of [Setup] → [Input Format] → [PC]. -
Page 16: Personal Computers With A Mini D-Sub 15-Pin Connector
When making connections with the DVI connector of the projector, please make the connection via the supplied DVI/mini D- Sub 15-pin conversion cable. The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “RGB” using the menu sequence of [Setup] → [Input Format] → [PC]. -
Page 17: To Output The External Output Signal Of A Notebook Computer
Should a sign not be output from the notebook computer, please try the operation described below. For an IBM PC/AT, DOS/V computer, press the [Fn] key plus any one of the [F1] to [F10] keys. (See the table below.) Manufacturer... -
Page 18: Connections With Composite Signals
• Make the connection to the VIDEO connector of the projector using the supplied Video cable. • The input setting of the VIDEO connector has been set to “Auto” at the factory; however, if the projector does not project, please change the input setting to “Your Country’s Television Broadcast System”... -
Page 19: Connections With Component Signals
When the Video Equipment Has a YCbCr Connector or YPbPr Connector • The projector has been set to “Auto” at the factory; however, if it does not project, please change the input setting to “Compo- nent” using the menu sequence of [Setup] → [Input Format] → [PC]. -
Page 20: Connections With Audio Connectors
Connections with Audio Connectors * Make the connection to the projector’s AUDIO connector using the supplied audio cable. When the audio jack of the equipment that is to be connected is of the RCA phono type, make connection via the supplied audio conversion cable. -
Page 21: Power Cable Connections And Switching The Power On/Off
Switch on the power of the connected equipment Note: • When the power plug will be unplugged from the power outlet, please place the projector near the power outlet so that it may be reached easily. • Press the STANDBY button after the STANDBY indicator is lit in amber. - Page 22 The first time the power is switched on after purchase, [Menu Lan- guage Select] will be displayed. Follow the procedure described be- low and select the display language of the projector. If the image is blurred, turn the focus ring counterclockwise or clock- wise to focus it.
-
Page 23: Finishing
ASPECT The [Power Off] display appears. When the level gauge reaches maximum, the projection screen will go off (in about 5 seconds) and the projector will enter the power-off op- eration. Note * The operation can be cancelled by pressing a button other than the STANDBY button. -
Page 24: Adjustment Of The Projection Screen
Adjustment of the Projection Screen Turn the zoom ring to adjust the screen size of the projection image. Adjust the image to match the desired screen size. When outside of the adjustment range, move the projector to the rear or forward. -
Page 25: Making Adjustments With The Adjusters
Make adjustments so that there is no rattling. Note: When the projector has a suspended or rear installation is used, the orientation of the projection will need to be changed. Please see “Vertical Flip/Horizontal Flip” on Page E-48. ( 1 ) -
Page 26: General Operation
Note * When you do not operate source selection, the projector will assume the input selection condition that was previously used. * See "Auto Source" on Page E-49 for information about the Auto Source on and off conditions. -
Page 27: Selection Of Aspect Ratio
The “Real” setting under “Aspect” for digital RGB signals can only be adjusted when the input signal is of XGA size or smaller. Note: When selection has been made for the “Real” setting of the personal computer signal (i.e., when the input signal and the projector display resolution are high) and the “Zoom” setting of the video signal, pressing the SELECT movement of the display position. -
Page 28: Freezing A Moving Picture
General Operation Freezing a Moving Picture This function is used to stop and view a moving picture. Note that the input image continues to advance even though the picture there is a still picture condition. A press of the FREEZE button changes the screen to a still picture. A further press returns the screen to a moving picture. -
Page 29: Keystone
General Operation Keystone Use this to adjust for trapezoidal (keystone) distortion of the pro- jected image. Adjustment Method (1) Press the KSTN button to make the left and right sides parallel. The keystone adjustment display appears when one of the buttons is pressed. -
Page 30: Enlargement Of The Image And Video Movement
The image can also be moved in the following circumstances. • When “Aspect” is set to “Real” by the signal of the Analog RGB, and the input resolution is higher than the display resolution of the projector. • When “Aspect” is set to “Zoom” by the video signal. -
Page 31: Using The Presentation Timer
General Operation Using the Presentation Timer The presentation is given while checking the timer displayed on the screen. The gauge display allows the remaining time to be known at a glance. (1) Press the TIMER button to show the settings display. The display will close when an operation has not been made for about 10 seconds. -
Page 32: Protecting The Projector With The Security Lock
General Operation Protecting the Projector with the Security Lock A password can be registered and the security lock set in order to protect the projector from unauthorized use. Registering the password The password is registered using the menus. For instructions on operating the menus, see “Menu Operation Method” on E-35. - Page 33 When a password has been registered, the “Password” input window appears on the projected image when the power is turned on. The projector continues projecting this image until the correct password is input. At this time, only the STANDBY button (power off) works.
-
Page 34: Using The Quick Menu
General Operation Using the Quick Menu This function permits frequently used adjustments to be performed quickly. Note that the Quick Menu will not be displayed unless the signal of the con- nected equipment is input. Please select the input that you wish to adjust. Main unit operation (1) Press the QUICK MENU button to display the quick adjustment display. -
Page 35: Menu Operation Method
• Adjustments and settings are made by projecting an image and adjusting to an optimum condition. • The remote control should be pointed toward the remote control sensor of the projector and operated. • To return the various items that have been changed via the menu to their standard values (i.e., default values at time of shipping from the factory), see “Factory Default”... -
Page 36: Menu Screen Names And Functions
Menu Operation Method Menu Screen Names and Functions Menu Name This is the title of the menu. There is a change to the title screen when the menu is selected. The cursor moves to the selected menu name. Item Name This is the name of the ad- justment or setting. -
Page 37: Performing Menu Operations
Preparation Switch on the power of the connected equipment, start the play operation or another operation, and input the signal to the projector. Select the input that you wish to adjust. The menu display of the description diagram depicts an example in which the “Keystone” item name is selected. - Page 38 Menu Operation Method Displaying the Cursor Press the SELECT button to display the item name selection cursor. STANDBY MENU ENTER CANCEL QUICK VIDEO FREEZE MUTE AUTO ASPECT KSTN ZOOM TIMER Selection of the Item Name Press the SELECT STANDBY MENU ENTER CANCEL QUICK...
-
Page 39: Selecting Another Menu Name With Remote Control Operation
Menu Operation Method Closing the Menu Press the MENU button and close the menu display STANDBY MENU ENTER VIDEO CANCEL QUICK FREEZE AUTO MUTE ASPECT KSTN ZOOM TIMER Selecting Another Menu Name with Remote Control Operation When a sub menu is displayed, press the CANCEL but- ton and close the sub menu. -
Page 40: List Of Item Names Offering Input Selection And Adjustments/Settings
Menu Operation Method List of Item Names Offering Input Selection and Adjustments/Settings The item names that can be adjusted/set will differ depending on the input signal. [Example of Menu Display Items at the Time of Input Signal RGB Selection] Menu name Item Name Image Brightness... - Page 41 Menu Operation Method Menu name Item Name Setup Auto Source Auto Power Off Menu Position Lamp Mode Input Format Presentation Timer Option Language On Screen Background Startup Screen Security Lock Info. Status Factory Default Lamp Timer Reset Resolution Frequency Lamp Timer Sub Menu Item Name Video...
-
Page 42: Image
Image • Perform this operation while projecting the picture for which the adjustment/setting will be made. • Select the menu name “Image”. See “Menu Operation Method” on Page E-35 for information about performing menu operations. The item name display will differ depending on the input signal. -
Page 43: Fine Picture
Image Fine Picture Adjust this when the picture shows a lack of color fidelity or flickering. Select the “Fine Picture” item name and adjust with the SELECT so that the lack of color fidelity or the flickering disappears. H Position Adjust this when the picture is shifted to the left or right. -
Page 44: Color
Color • Do the following operation while displaying the image you want to adjust or set. • Select the menu name “Color”. See “Menu Operation Method” on Page E-35 for information about performing menu operations. The item name display will differ depending on the input signal. -
Page 45: Color Temp
Note: * When the component signal undergoes conversion processing to red, green, and blue which express the image of the projector, the correct color cannot be reproduced unless a system compliant with the color difference conversion sys- tem of the input signal is used. Color Space serves to make this selection. -
Page 46: White Balance
Color White Balance This function automatically adjusts the black level and the white level of the analog RGB input signal to suit the personal computer. Select the item name [White Balance] and press the ENTER button. The display will change to [Input Black Signal]. The screen background color of the connected personal computer will be set to black. -
Page 47: View
Filter This function sets the sharpness when the input signal is adjusted to the resolution of the projector and enlarged or reduced. Select the item name “Filter” and select the setting contents with the SELECT buttons. -
Page 48: Vertical Flip/Horizontal Flip
“Vertical Flip” Off “Horizontal Flip” Off Keystone Keystone distortion will occur when the projector and screen are on an angle (in the vertical orientation). This function is used to correct this distortion. Select the item name “Keystone” and correct the keystone distortion using the SELECT buttons. -
Page 49: Setup
Note: Some video decks and other equipment output a blue background or other video when playback ends. When this happens, a signal is being input to the projector and Auto Power Off is not activated. Menu Position This function sets the display position of the menu. -
Page 50: Lamp Mode
Setup Lamp Mode Use this if the picture is projected on a small screen and the picture is too bright or when projecting images in dark rooms. Select the item name “Lamp Mode” and select the setting contents with the SELECT buttons. -
Page 51: Language
Option • Select menu name “Option”. See “Menu Operation Method” on Page E-35 for information about performing menu operations. The item name display will differ depending on the input signal. See “List of Item Names Offering Input Selection and Adjustments/Settings” on Page E-40. Language This function sets the language that is displayed on screen in the messages and menu displays. -
Page 52: Startup Screen
Logo ... Displays the logo. Blank ... Does not display the logo. Note: When “Logo” is selected at the startup screen, the “PLUS” logo is dis- played. Security Lock A password can be registered and the security lock set in order to prevent unauthorized use of the projector. -
Page 53: Info
There is a change to the status display. Press the CANCEL button to return to the menu. Display Contents: Projector model, firmware version, and the internet home page ad- dress of PLUS Vision Corp. Factory Default This function returns the adjustments and settings of all the in- put sources to the standard factory default values. -
Page 54: Resolution / Frequency
This function displays the resolution and frequency of the detected in- put signal. Lamp Timer This displays the lamp timer. This projector has an Eco mode function. The lamp life will differ between Normal mode and Eco mode. Lamp Life Use only in Normal mode: approx.1500 hours Use only in Eco mode: approx.2000 hours... -
Page 55: When An Indicator Is Lit Or Blinking
2. Check the following matters and take the required measures. When the projector is being used in a location that has a high ambient temperature, set it up again in a cool location. Check the outflow and intake holes and clean them if they are obstructed. -
Page 56: Troubleshooting
• Does the projection distance exceed the focusing range? • Is there condensation on the lens, etc.? If the projector is moved from a cool storage area to a warm place and the power is turned on, condensation may form on the lens or internal optical parts. -
Page 57: Cleaning
Cleaning the Inside of the Projector Cleaning of the inside of the projector is required about once a year. Failure to clean over a long period while dust has collected inside the projector could cause a fire or breakdown. Do not clean the inside of the projector by yourself. Please be sure to contact your dealer. -
Page 58: Replacing The Lamp Cartridge
Replacing the Lamp Cartridge • The lamp that is used as a light source in the projector has a limited service life. The rated service life of the lamp is about 1500 hours (when used in normal mode only). This could be shortened depending on conditions of use and other factors. - Page 59 Replacing the Lamp Cartridge Preparations: Turning the projector upside-down on top of a soft cloth, etc., so that it does not get scratched makes it easier to replace the lamp cartridge. Turn the projector right-side up after replacing the lamp cartridge.
- Page 60 After reaching the lamp service life, if the lamp is used for more than another 100 hours, it will not be possible to switch on the power. Should this happen, while the projector is in the standby mode, simultaneously holding down the projector’s SOURCE button and AUTO button for more than 5 seconds will clear the lamp timer.
-
Page 61: Specifications
7.5 in.(W) 2.1 in.(H) 9.5 in.(D) Weight Approximately 1.5 kg / 3.3 lbs Operational Temperatures Data projector: 5° to 35°C (41° to 95°F), 30 to 85% humidity • Specifications and design are subject to change without notice. 1024 768 dots E-61... -
Page 62: Table Of Supported Frequencies
Table of Supported Frequencies The projector automatically identifies the signal input from the computer and selects the optimum resolution as shown on the table below. Manual adjustments may be required for some input signals. See “Picture Adj. / Fine Picture / H Position / V Position” on page E- 42, 43. -
Page 63: Cabinet Dimensions
Cabinet Dimensions MENU MENU QUICK AUTO SOURCE STANDBY STATUS 190 (7.5) 12 (0.5) Unit: mm (inch) E-63... - Page 64 2004...
