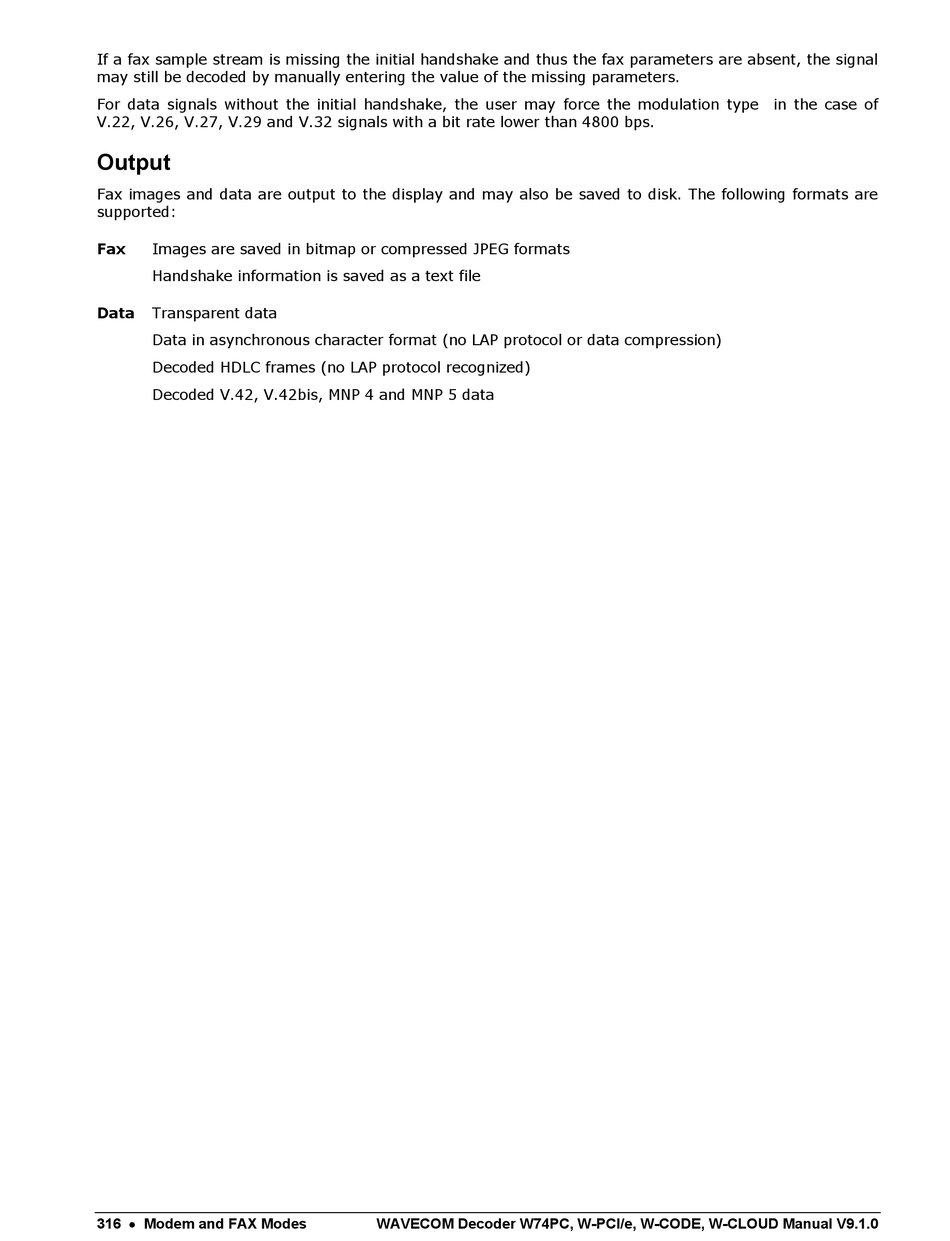

Output - Wavecom W74PC Manual

If a fax sample stream is missing the initial handshake and thus the fax parameters are absent, the signal
may still be decoded by manually entering the value of the missing parameters.
For data signals without the initial handshake, the user may force the modulation type in the case of
V.22, V.26, V.27, V.29 and V.32 signals with a bit rate lower than 4800 bps.

Output

Fax images and data are output to the display and may also be saved to disk. The following formats are
supported:
Fax Images are saved in bitmap or compressed JPEG formats
Handshake information is saved as a text file
Data Transparent data
Data in asynchronous character format (no LAP protocol or data compression)
Decoded HDLC frames (no LAP protocol recognized)
Decoded V.42, V.42bis, MNP 4 and MNP 5 data
316  Modem and FAX Modes
WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0
