Normal Inverse
073 506
074 174
114 712
115 152
116 754
122 225
125 365
131 364
132 546
134 223
143 412
145 274
152 115

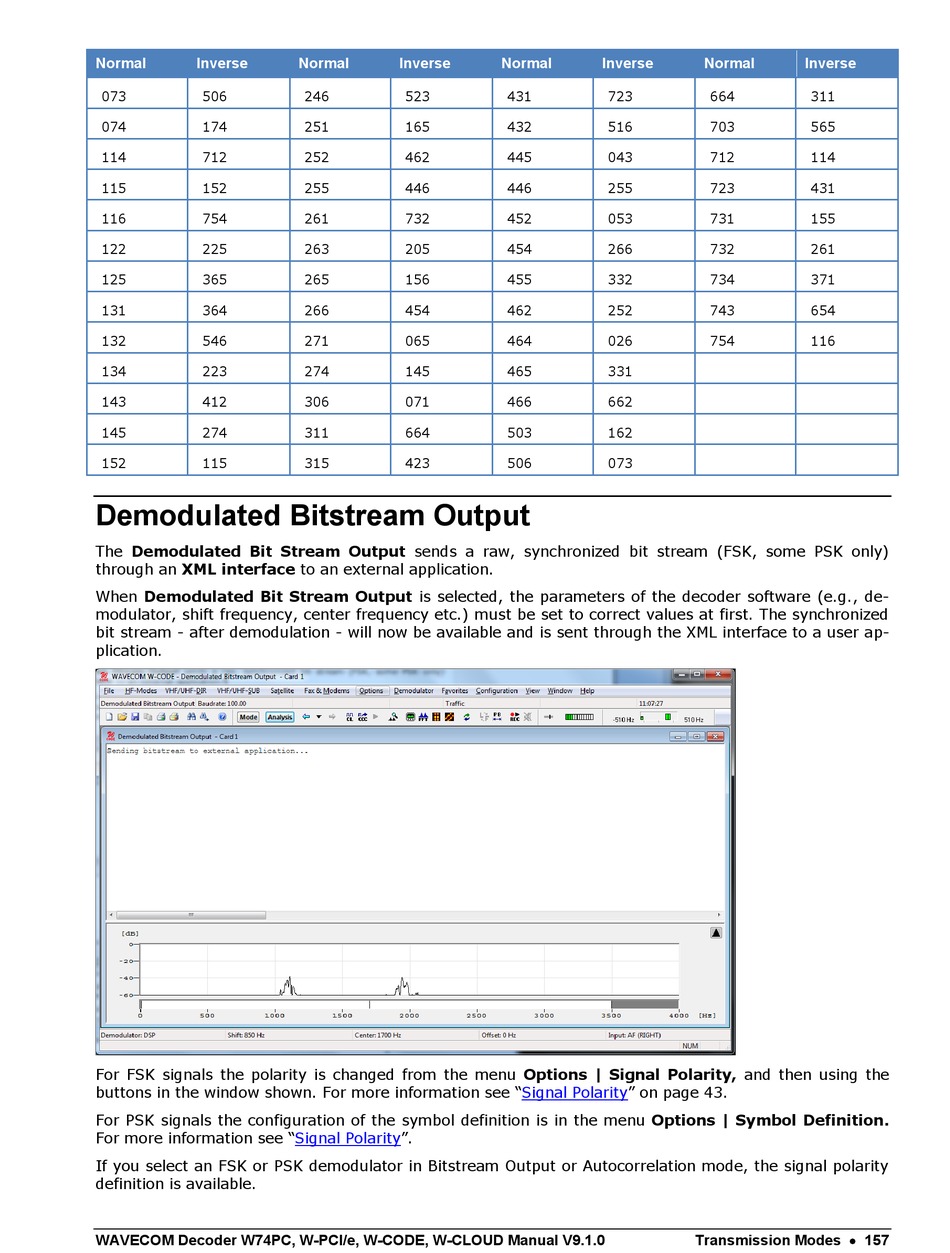

Demodulated Bitstream Output

The Demodulated Bit Stream Output sends a raw, synchronized bit stream (FSK, some PSK only)
through an XML interface to an external application.
When Demodulated Bit Stream Output is selected, the parameters of the decoder software (e.g., de-
modulator, shift frequency, center frequency etc.) must be set to correct values at first. The synchronized
bit stream - after demodulation - will now be available and is sent through the XML interface to a user ap-
plication.
For FSK signals the polarity is changed from the menu Options | Signal Polarity, and then using the
buttons in the window shown. For more information see
For PSK signals the configuration of the symbol definition is in the menu Options | Symbol Definition.
For more information see
If you select an FSK or PSK demodulator in Bitstream Output or Autocorrelation mode, the signal polarity
definition is available.
WAVECOM Decoder W74PC, W-PCI/e, W-CODE, W-CLOUD Manual V9.1.0
Normal Inverse
246 523
251 165
252 462
255 446
261 732
263 205
265 156
266 454
271 065
274 145
306 071
311 664
315 423
"Signal Polarity".
Normal Inverse
431 723
432 516
445 043
446 255
452 053
454 266
455 332
462 252
464 026
465 331
466 662
503 162
506 073
"Signal Polarity" on page 43.
Normal Inverse
664 311
703 565
712 114
723 431
731 155
732 261
734 371
743 654
754 116
Transmission Modes  157
