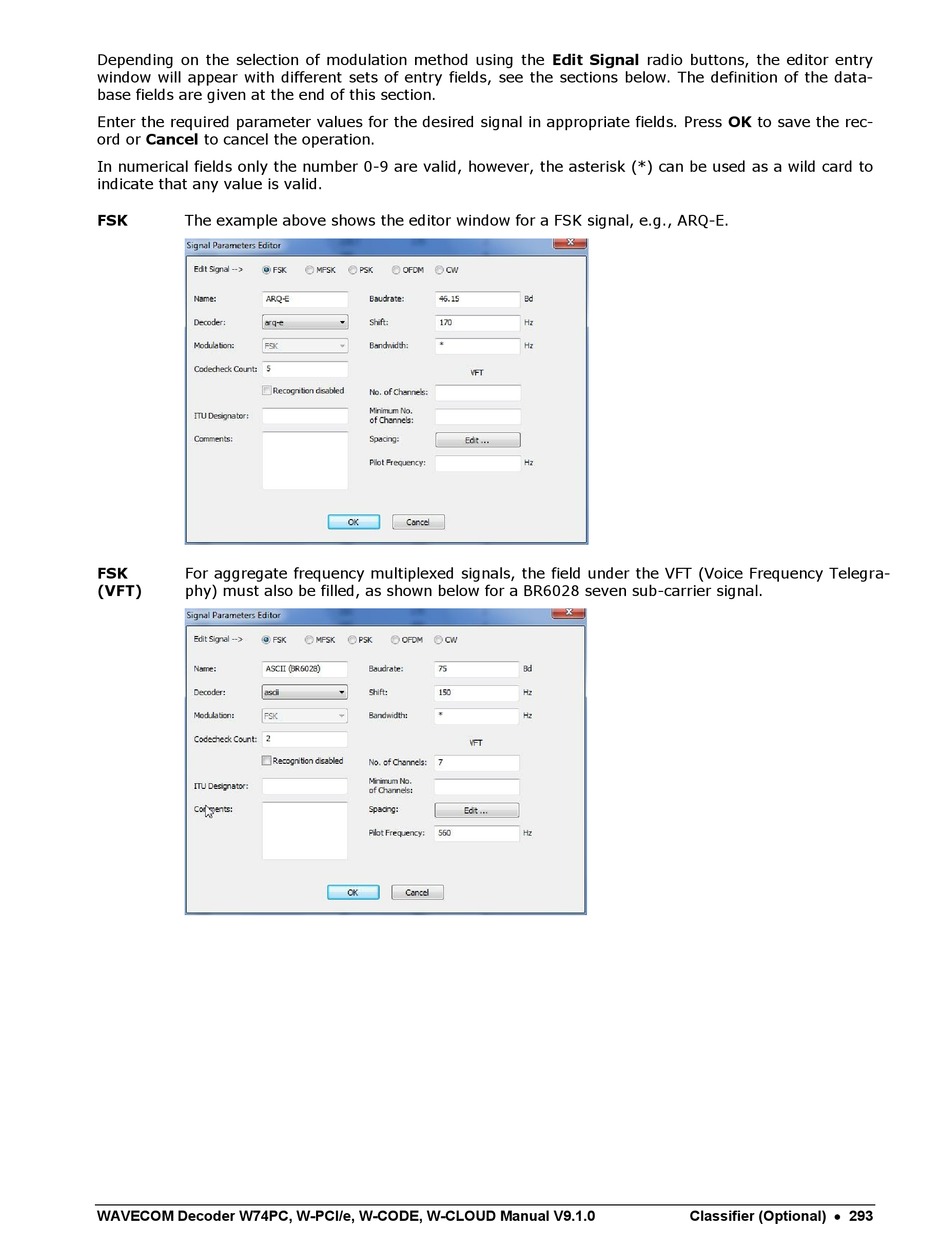

Depending on the selection of modulation method using the Edit Signal radio buttons, the editor entry
window will appear with different sets of entry fields, see the sections below. The definition of the data-
base fields are given at the end of this section.
Enter the required parameter values for the desired signal in appropriate fields. Press OK to save the rec-
ord or Cancel to cancel the operation.
In numerical fields only the number 0-9 are valid, however, the asterisk (*) can be used as a wild card to
indicate that any value is valid.
FSK The example above shows the editor window for a FSK signal, e.g., ARQ-E.
FSK For aggregate frequency multiplexed signals, the field under the VFT (Voice Frequency Telegra-
(VFT) phy) must also be filled, as shown below for a BR6028 seven sub-carrier signal.
