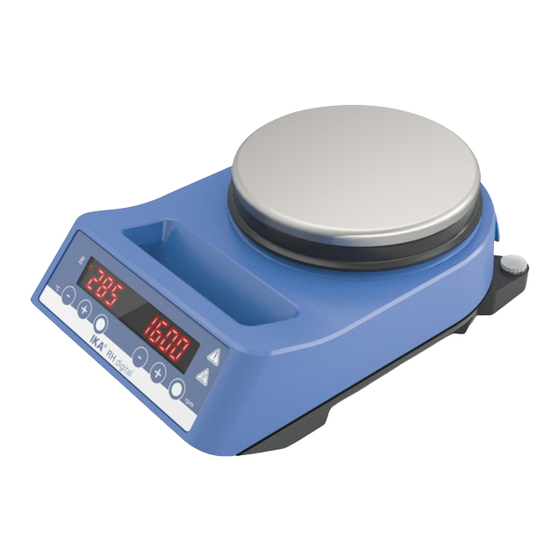

- Page 1 Magenetic Stirrer / Magnetrührer RH digital IKA ID: 50198.01 Version: USA (115V) IKA ® IKA – Werke GmbH & Co. KG Janke & Kunkel-Str. 10 D - 79219 Staufen Phone: +49 (0)7633 831-139 / 202 Fax: +49 (0) 7633 831-909 E-Mail: service@ika.de...
- Page 2 Type: Item No.:5019801 RH digital Voltage: 115V 50/60Hz ® Service-Manual Date: SZ: 5019800SZ 27. Feb. 2014 Item No Bezeichnung Description Technical data Bemerkung Remark 1 0005011300 Aufstellplatte heating surface 2 0004500501 Heizfolie heating foil 115V 3 0004136300 Thermoelement Thermo-couple sensor 4 0005016800 Andruckblech pressure sheet 5 0005011400 Isolierung...
- Page 3 Type: Item No.:5019801 RH digital Voltage: 115V 50/60Hz ® Service-Manual Date: SZ: 5019800SZ 27. Feb. 2014 Item No Bezeichnung Description Technical data Bemerkung Remark 41 0004345300 TORX-TAPT.ZYL.SCHRAUBE TORX-TAPT.CH.H.SCREW M 4,0x 8,0 42 0003416300 ZAHNSCHEIBE LOCK WASHER V 4,3 43 0025000963 Senkschraube, Innensechskant screw-countersunk, hexalobular socket M4x16 44 0004345400 TORX-TAPT.ZYL.SCHRAUBE...
- Page 4 2001 45+36 heating plate complete 3005 45+36 Protective earth conductor test according to DIN EN 61010 / Schutzleiterprüfung nach DIN EN 61010 1810 Protective cover/ Two plugs should be 1960 assemblied on one Schutzhaube direction to high voltage area. Servicezeichnung / service drawing RH digital Cable tie should be close to power terminal...
- Page 5 Wiring diagram housing lower GNYE 45+36 2001 heating plate 3004 GNYE complete PCB-photo-sensor housing upper clamping torque / Drehmoment 1.2Nm GNYE 3003 PCB-switch shaded-pole-motor GNYE clamping torque / Drehmoment 0.8 Nm clamping torque / Drehmoment 0.8 Nm 3001 PCB-main-digital 3002 thermocouple-sensor heating foil heating plate complete...
