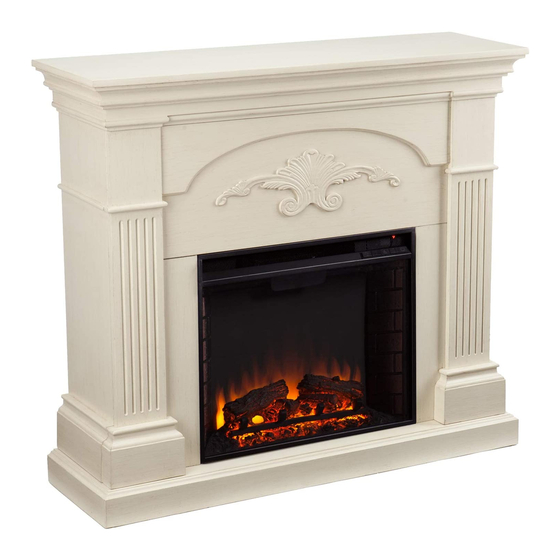

- Page 1 "SICILIAN" HARVEST FIREPLACE FA927500TX-IVORY FA927600TX- BLACK W/ GOLD TIPPING FA927700TX-MAHOGANY For assistance with assembly contact: Southern Enterprises Inc. ASSEMBLY INSTRUCTION Customer Service 1-800-633-5096 service@seidal.com www.seidal.com...
- Page 2 "SICILIAN" HARVEST FIREPLACE Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 3 "SICILIAN" HARVEST FIREPLACE Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw. Carefully study the screw diagrams below.
- Page 4 "SICILIAN" FIREPLACE HARVEST Assembly Instructions INSERT （A） CAM BOLT & （C） WOOD DOWEL TO THE RELATED HOLES, THEN USE （B） CAM LOCK TO CONNECT (2) SIDE PANEL&(3) SIDE FRONT PANEL. Figure 1 INSERT（C）WOOD DOWEL & (H) CROSS SOCKET NUT TO CORRESPONDING HOLES ,THEN USE (E) SOCKET HEXAGON SCREW THROUGH (F) SPRING WASHER &(G) FLAT WASHER TO CONNECT (7)
- Page 5 "SICILIAN" FIREPLACE HARVEST Assembly Instructions INSERT (C)WOOD DOWEL TO CORRESPONDNIG HOLES OF BASE THEN PUSH THE COMPLETED FIGURE (3) TO THE BACK OF SIDE FRONT PANEL THEN INSERT (D)WOOD SCREW TO CORRESPONDING HOLES TO CONECT (3) SIDE FRONT PANEL.FINALLY USE SCREWDRIVER TO SECURE TIGHTLY.
- Page 6 Please contact the retailer that you purchased from for returns. We'd love to hear from you! Email us photos of our products in your home at sei@seidal.com and we might feature it on our site or use it to model one of our inspirational photos.
