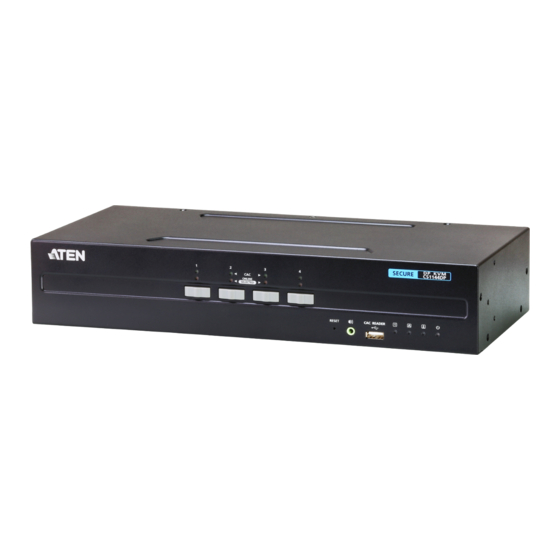

2 / 4 / 8 - port usb dvi / hdmi / displayport single / dual display secure kvm switch
Hide thumbs Also See for CS1182DP:
Table of Contents

Advertisement

Quick Links

See also: User Manual
2/4/8-Port USB DVI/HDMI/DisplayPort
Single/Dual Display Secure KVM Switch
Administrator's Guide
www.aten.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS1182DP and is the answer not in the manual?

Questions and answers

Related Manuals for ATEN CS1182DP

Summary of Contents for ATEN CS1182DP

  • Page 1 2/4/8-Port USB DVI/HDMI/DisplayPort Single/Dual Display Secure KVM Switch Administrator’s Guide www.aten.com...

  • Page 2: Fcc Information

    ATEN Secure KVM Administrator’s guide FCC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 ATEN Secure KVM Administrator’s guide SJ/T 11364-2006 The following contains information that relates to China.

  • Page 4: User Information

    ATEN Secure KVM Administrator’s guide User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America...
  • Page 5 © Copyright 2011–2017 ATEN® International Co., Ltd. Manual Version: v1.01 Manual Date: 2017-07-05 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.

  • Page 6: Table Of Contents

    ATEN Secure KVM Administrator’s guide Contents FCC Information........………………………………… …..ii SJ/T 11364-2006 .

  • Page 7: About The Administrator's Guide

    This Administrator’s Guide is provided to help authorized administrators audit logs and configure the ATEN Secure KVM switch. To maximize security, it is recommended that administrators audit log event records and the Secure KVM Switches’ configuration on a routine bases.

  • Page 8: Overview

    Chapter 2, Precautions and Preparation, provides step-by-step instructions for setting up your installation. Chapter 3, Operation, explains the concepts involved in operating the ATEN Secure KVM Switch. An Appendix, provides specifications and other technical information regarding the ATEN Secure KVM Switch.

  • Page 9: Conventions

    Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 10 ATEN Secure KVM Administrator’s guide This Page Intentionally Left Blank...

  • Page 11: Chapter 1. Introduction

    By combining physical security with controlled USB connectivity and controlled unidirectional data flow from devices to connected computers only, the ATEN Secure KVM Switch series offers the means to consolidate multiple workstations of various security classification levels with one keyboard, monitor and mouse (KVM) console.

  • Page 12: Before You Begin

    Precautions and Preparation Before You Begin If the tamper-evident seal is missing or peeled, avoid using the product and contact your ATEN dealer. If all front panel LEDs except the Power LED flash continuously, or the switch’s enclosure appears breached, avoid using this product and contact your ATEN dealer.

  • Page 13: Operation

    11. Do not connect any Thunderbolt device to the Secure KVM Switch. Secure Installation Do not attempt to connect or install the following devices to the computers connected to the ATEN Secure KVM Switch: TEMPEST computers; telecommunication equipment; frame grabber video cards;...
  • Page 14 ATEN Secure KVM Administrator’s guide To maximize security and to prevent unauthorized access to the Secure KVM Switch, please change the default logon password after your first successful log in. The administrator’s session will be terminated if the administrator logs out, or the Secure KVM Switch is powered off.

  • Page 15: Chapter 3. Operation

    Chapter 3 Operation Powering On When you power on, reset, or power cycle the ATEN Secure KVM Switch, the switch will perform a self-test to check the unit’s integrity and security functions. During the self-test All Port LEDs and CAC LEDs will turn ON and then OFF.

  • Page 16: Manual Switching

    Verify that the USB CAC card reader has been authorized for the port. LED Display In addition to the Power LED, the ATEN Secure KVM Switch has Port LEDs (Online and Selected), keyboard (Num Lock/Caps Lock/Scroll Lock) LEDs and CAC LEDs that are built into the front panel to indicate the Port / Keyboard / CAC reader operating status.

  • Page 17: Chassis Intrusion Detection

    Lights green to indicate Scroll Lock is enabled. Chassis Intrusion Detection To help prevent malicious tampering with the ATEN Secure KVM Switch, the switch becomes inoperable and the front panel’s LEDs (except the Power LED) flash constantly when a chassis intrusion (such as the cover being removed) is detected.

  • Page 18: Administrator Functions

    KVM USB port on the switch. (Please refer to the Secure KVM Switch user manual for details.) Power on the ATEN Secure KVM Switch, and then power on the source computer. The ATEN Secure KVM Switch will switch to port 1 after a successful self-test.
  • Page 19 With nine failed log in attempts, the Secure KVM Switch will become permanently inoperable. Please remove it from service immediately and contact your ATEN dealer. After a [Logon OK] message, type: LIST and press [Enter] for a list of the administrator functions.
  • Page 20 ATEN Secure KVM Administrator’s guide Do not use the default administrator password for your new password. The administrator will be asked to enter the new password a second time for confirmation. Once the new administrator password is entered, the default administrator password will not be restored even after a Reset to Factory Default.
  • Page 21 ATEN Secure KVM Administrator’s guide KVM Information Area This area displays the Secure KVM Switch status and critical information a. DATE-TIME: Current Date and Time in UTC. b. MFG_DATE: Manufacturing Date (in UTC) of the Secure KVM Switch. c. TAMP_TEST: The Secure KVM Switch tamper protection test status.
  • Page 22 ATEN Secure KVM Administrator’s guide Maximum thirty-two non-critical even logs will be kept on the Secure KVM Switch. New log entries will overwrite the oldest one (for example, the thirty-third log entry will overwrite the first log). User Authentication Device Filtering Configuration Administration functions enable authorized administrators to configure device filtering (CDF).

  • Page 23: Appendix

    Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result.
  • Page 24 ATEN Secure KVM Administrator’s guide points or short out parts resulting in a risk of fire or electrical shock. Do not attempt to service the device yourself. Refer all servicing to qualified service personnel. If the following conditions occur, unplug the device from the wall outlet and bring it to qualified service personnel for repair.

  • Page 25: Consignes De Sécurité

    ATEN Secure KVM Administrator’s guide Consignes de sécurité Général Ce produit est destiné exclusivement à une utilisation à l’intérieur. Veuillez lire la totalité de ces instructions. Conservez-les afin de pouvoir vous y référer ultérieurement. Respectez l’ensemble des avertissements et instructions inscrits sur l’appareil.
  • Page 26 ATEN Secure KVM Administrator’s guide pas 15 Ampères. Pour contribuer à protéger votre système contre les augmentations et diminutions soudaines et transitoires de puissance électrique, utilisez un parasurtenseur, un filtre de ligne ou un système d’alimentation sans coupure (UPS). Placez les câbles du système et les câbles d’alimentation avec précaution ; veillez à ce que rien ne repose sur aucun des câbles.

  • Page 27: Technical Support

    ATEN Secure KVM Administrator’s guide Technical Support International For online technical support – including troubleshooting and documentation: http://eservice.aten.com For telephone support, See Telephone Support, page iv: North America Email Support support@aten-usa.com Online Troubleshooting Technical Documentation http://www.aten-usa.com/support Support Software Updates Telephone Support...

  • Page 28: Limited Warranty

    ATEN Secure KVM Administrator’s guide Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK, OR ITS DOCUMENTATION.
  • Page 29 ATEN Secure KVM Administrator’s guide...
