External SCSI Connectors
The external connectors on the controller are female, Very High Density
Cable Interconnect (VHDCI) connectors. Figure 3-2 shows the
configurations that are available on both the DAC960PG and the
DAC960PJ.
A
B

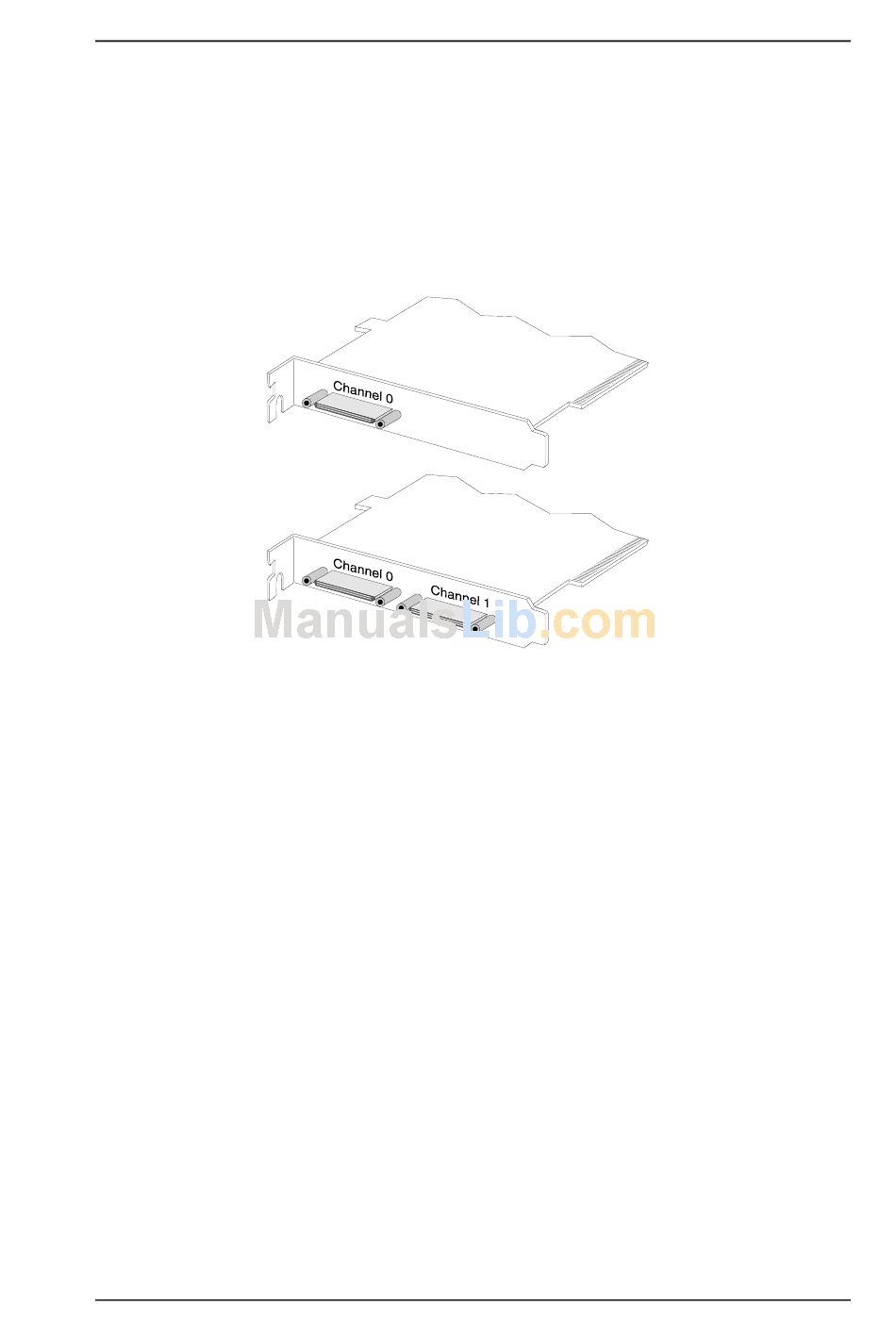

Figure 3-2. Configurations of 1, 2, and 3 External SCSI Connectors
Manual No. 775012
Installation
DAC960PG
1-Channel
DAC960PG
2-, 3-Channel
DAC960PJ
2-, 3-Channel
3-3
