Connectors and Jumpers

Connectors and Jumpers
Up to three Ultra SCSI channels are supported on the DAC960PG and
DAC960PJ. The SCSI connector locations are shown in Figure 3-1.
Be sure that the Jumper JP6 has a jumper installed (see Figure 3-1 and
Table 3-1).

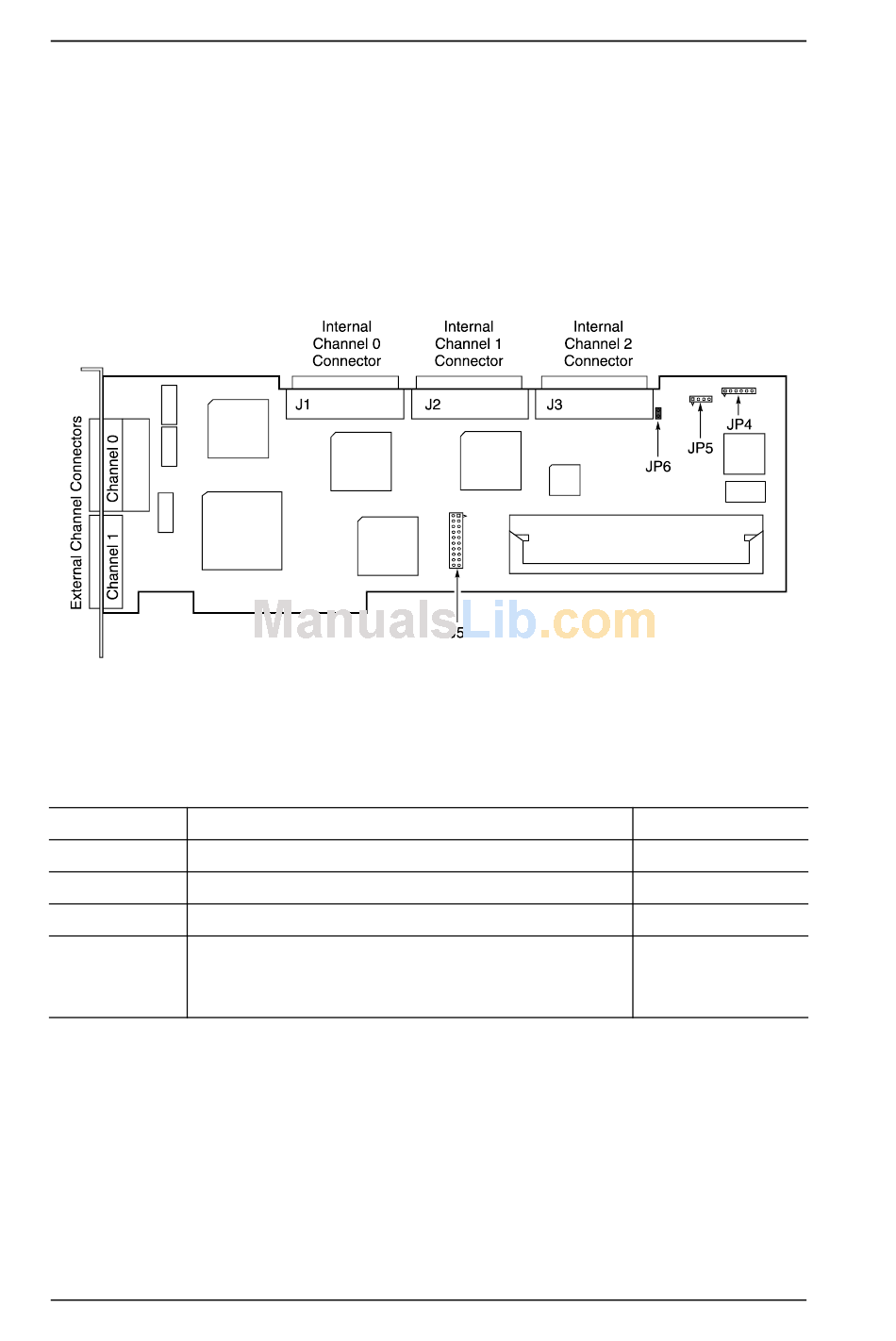

Figure 3-1. Full-length Controller Component Layout
Table 3-1. Full-length Controller Jumper and Connector Descriptions
Component Description
JP4 Connector for optional front panel LED harness
JP5 Serial Port Connector
JP6 Reserved
J5 Battery Backup connector – If a BBU is not
installed, a loopback plug must be installed in
this socket.
3-2 DAC960PG and DAC960PJ Installation
Default Setting
–
–
Installed
Installed at
factory
