LED Color
Power Green
Link/Act Green
100 Green
FDX/Col Green

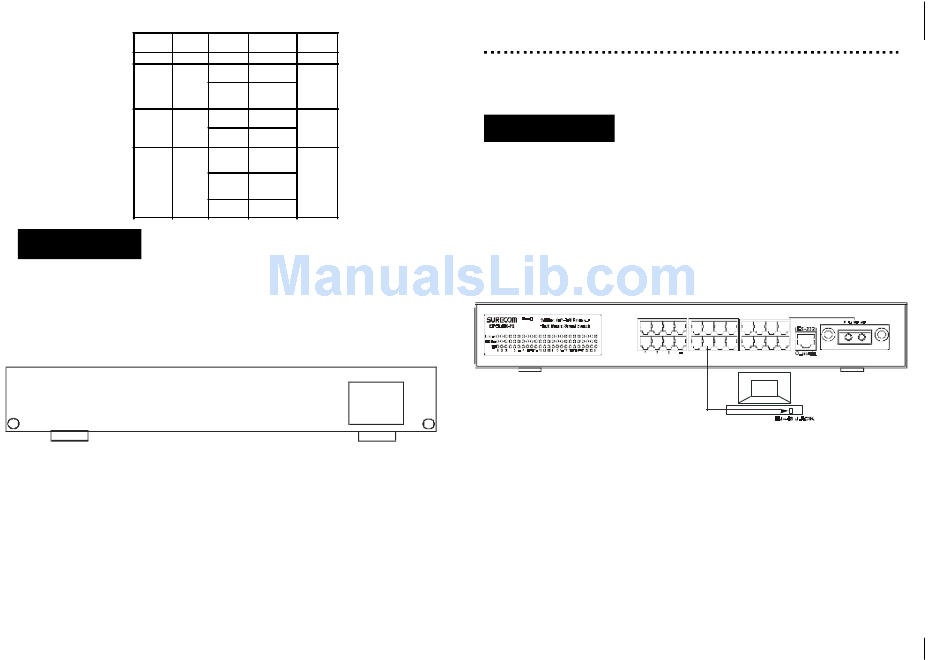

Rear Panel

The rear panel consists of an AC power socket, a power switch, and a console port.
EP-824DX-FS
1. Power Socket
Plugs the power co rd into this socket.
Number of
Status Descrition
LED
On Power on 1
Link status of
On
connected port
24(24 port)
Data Transmi-
Flashing ssion status of
connected port
100Mbps of
On
connected port
24(24 port)
10Mbps of
Off
connected port
Full-Duplex
On status of con-
nected port
Half-Duplex
24(24 port)
Off status of con-
nected port
Collision sta-tus
Flashing
of conne-cted port
90~264VAC
47~63Hz
2-3
CHAPTER 3
3. Network Connections
This chapter describes how to connect this Switch to your Fast Ethernet network.

Switch to PC

You can connect any RJ-45 station port on the Switch to a PC via twisted-pair cable
with RJ-45 plugs at both ends. Use Category 3, 4 or 5 cable for standard 10Mbps
Ethernet connections, or Category 5 cable for 100Mbps Fast Ethernet connections.
13 14
Make sure you have installed a 10BASE-T or 100BASE-TX network interface card for
connecting a PC to the Switch's RJ-45 (MDI-X) station ports. If LEDs don't light after
powering on th e Switch, check if the LAN card, the cable and connectors are properly
attached to the PC and th e Switch.
When a attached PC i s powered on o r reset:
1. The Link/Act LED will light
2. The FDX/ Col LED depends on the install ed LAN card's capabilities fo r the PC
and the Swi tch connection.
3. The 100M LED will light for 100Mbps connection, otherwise it will be unlighted.
Network DIY
15 16 17 18 19 20 21 22 23 (24)
5 6 7 8 9 10 11 12
3-1
