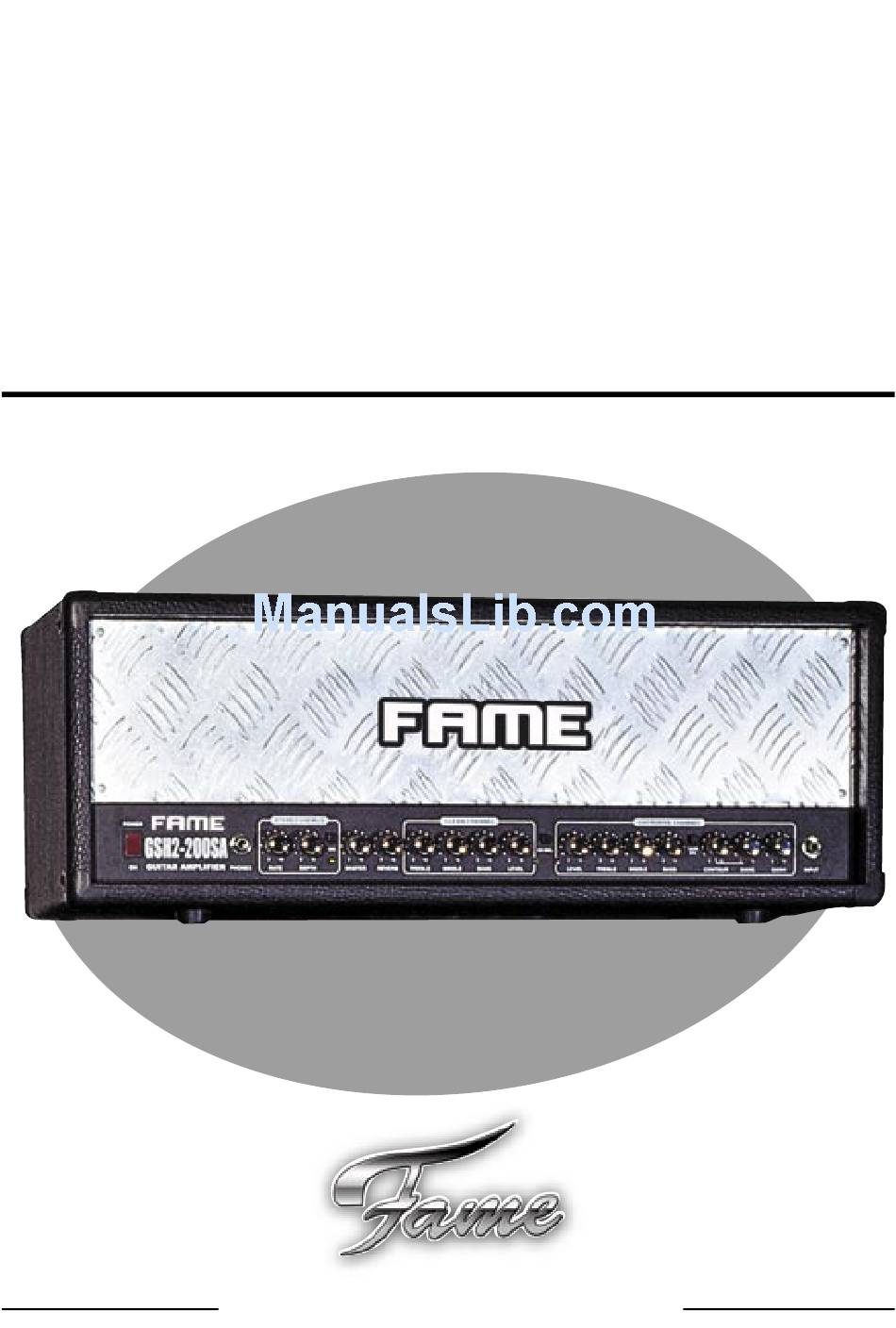

- Page 1 ELECTRIC GUITAR AMP Ownerʻs Manual GSH2-200SA...
-
Page 2: Safety Warnings
Congratulations! We would like to thank you for purchasing the GSH2-200SA Electric Guitar Amplifier. It has been specially designed and developed for the use with electric guitars. Before using your new amplifier, we advise to read the following pages carefully. -
Page 3: Table Of Contents
Content Setting up the GSH2-200SA ..................Peripheral Connections .................... Preamp Section ......................Channels ........................Stereo Chorus ......................Reverb ........................Controls & Switches ....................Special Gimmicks ..................... Specifications ...................... -
Page 4: Setting Up The Gsh2-200Sa
Setting up the GSH2-200SA WARNING! To avoid electrical shock or any other damage, make sure that the GSH2-200SA and all other devices are switched off before you start connecting them to the amplifier! Power Connections/Mains GSH2-200SA. This transformer must be able to... -
Page 5: Peripheral Connections
On the back of your amplifier you will find both a send and a return jack. These will be useful if This jack is used to connect the GSH2-200SA to a you want to loop external effects units between grounded power outlet. -
Page 6: Preamp Section
The Clean channel of the amplifier produces a very clear and basic sound, which will not overdrive or compress at a higher volume setting. This is because the GSH2-200SA features a very strong power amp as well as solid state elements both in the preamp and power amp section. -
Page 7: Controls & Switches
Switches the chorus effect on or off. Switches between the two gain controls of the MASTER overdrive channel. Controls the master volume of the GSH2-200SA. Contour REVERB With activated gain switch, this knob works as a fine control for the overall equalization of the Adjusts the amount of the buílt-in reverb effects in... -
Page 8: Special Gimmicks
GSH2-200SA. External Effects How to choose the right device We are convinced that the basic sound of the Fame High-quality effects like a vibrato or time-based units GSH2-200SA will suit the demands of most guitar like delays can round up the sound, when placed in players. -
Page 9: Specifications
Bass, Middle, Treble (für jeden Kanal getrennt), Contour (Overdrive Kanal) Effects: Stereo Chorus, Reverb Connection Jacks: Input Phones Footswitch Lautsprecheranschlüsse FX Send & Return Line Out Mains Dimensions: 68,8 x 25,5 x 27,8 cm Weight: 17,5 kg Accessories: Ownerʻs Manual, Power Cable Optional: Fame FS400L 4-way footswitch... - Page 10 GSH2-200SA 2007...
