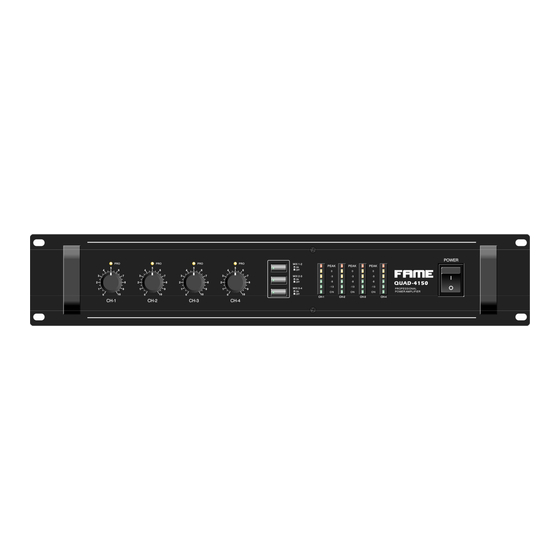

- Page 1 QUAD Series Professional Power Amplifier QUAD- 4150 OWNER’S MANUAL...
-
Page 2: Safety Information
Safety Information CAUTION: To reduce the risk of electric shock, do not remove any cover(or the rear section). No user serviceable parts inside. Refer servicing to qualified service personnel only. WARNING: To reduce of fire or electric shock, do not expose this appliance to rain and moisture. Electrical equipments should NEVER be kept or stored in damp environments. -
Page 3: Safety Instructions
Safety Instructions Read Instructions All the safety and operating instructions should be read before this products is connected and used. Retain Instructions The safety and operating instructions should be kept for future reference. Heed Waning All warnings on this appliance and in these operating instructions should be followed. Follow Instruction All operating and other instructions should be followed. -
Page 4: Front Panel
Front panel: 1. Power ON/OFF switch Use to turn the amplifier on and off. Amplifier will be ready for operation in a few seconds after switched ON. CH-1/CH-2/CH-3/CH-4 input level control Use to get desired input signal level. 3. CH-1/CH-2/CH-3/CH-4 protection LED (yellow) This LED will be illuminated when amplifier under below conditions: A. - Page 5 Rear panel 1. CH-1/CH-2/CH-3/CH-4 RCA inputs: Use to connect unbalanced line level audio sources 2. CH-1/CH-2/ CH-3/ CH-4 XLR/JACK inputs: Use to connect unbalanced line level audio sources 3. CH-1/CH-2/ CH-3/ CH-4 output speakon Use to connect speakers . 1+ 2+=+, 1- 2-=-. 4.
