Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose.
ANEL 3. INSTALLATION...4 3.1 B ...4 EFORE START UP 3.2 C ONNECTING END NODE 3.3 C ONNECTING TO ETWORK 4. SWITCH OPERATION...6 5. TROUBLESHOOTING...7 APPENDIX A NETWORKING CONNECTION ...8 A.1 S ‘ RJ-45 P WITCH SSIGNMENTS A.2 10/100M / 10/100B A.3 RJ-45...

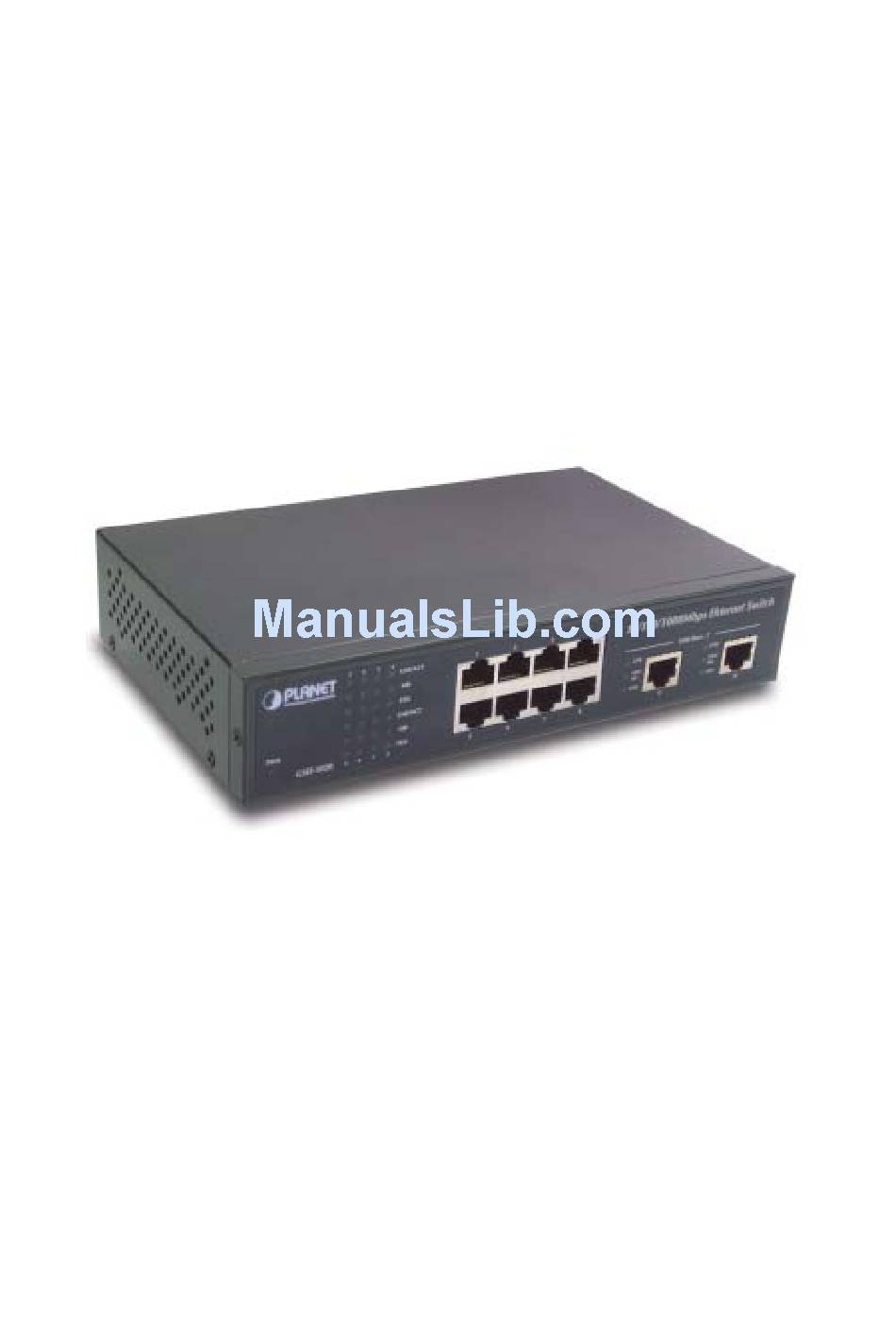

Switching/bridging functions begin automatically. The front panel of GSD-1020 provide LEDs for easy recognition of the switch operation status and for troubleshooting. These LED indicators display the power status for the system and Link/Act, 100, full-duplex for each10/100M port, Act, 1000/100, full-duplex for each Gigabit port.
This section describes the hardware features of the Giga Switch. For easier management and control of the switch, familiarize yourself with its display indicators, and ports. Front panel illustrations in this chapter display the unit LED indicators. Before connecting any network device to the Switch, read this chapter carefully.
Full Duplex mode. Blink: indicate that the connection is experiencing collisions 2.2 Rear Panel The rear panel of the Switch indicates an AC inlet power socket which accepts input power from 100 to 240VAC, 50-60Hz. Power Notice: 1. The device is a power-required device, it means, it will not work till it is powered. If your networks should active all the time, please consider using UPS (Uninterrupted Power Supply) for your device.
2. Connect the power cord to the power inlet socket of Switch and the other end into the local power source outlet. 3. Connect other switch or PC to one port of the GSD-1020 using Category 3/4/5 UTP/STP cabling. 4. Connect another switch or PC to the other port of Switch by following the same process as described in Step3.
Figure 3. End node, Hub or Switch connection Notice: Cable distance for Switch The cable distance between Ethernet Switch and hub/PC should not exceed 100 meter for UTP/STP cable. Make sure the wiring is correct It can be used Category 3/4/5 cable in 10 Mbps operation. To reliably operate your network at 100Mbps and 1000Mbps, you must use an Unshielded Twisted-Pair (UTP) Category 5 cable, or better Data Grade cabling.
This information comes from the learning process of Ethernet Switch. Learning When one packet comes in from any port, the Giga Switch will record the source address, port no. and the other related information in address table. This information will be used to decide either forwarding or filtering for future packets.
Performance is bad Solution: Check the full duplex status of the Ethernet Switch. If the Ethernet Switch is set to full duplex and the partner is set to half duplex, then the performance will be poor. 5. TROUBLESHOOTING...
A.1 Switch‘s RJ-45 Pin Assignments 1000Mbps / 1000BaseT Contact Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard. A.2 10/100Mbps / 10/100Base-TX Contact A.3 RJ-45 cable pin assignment...
