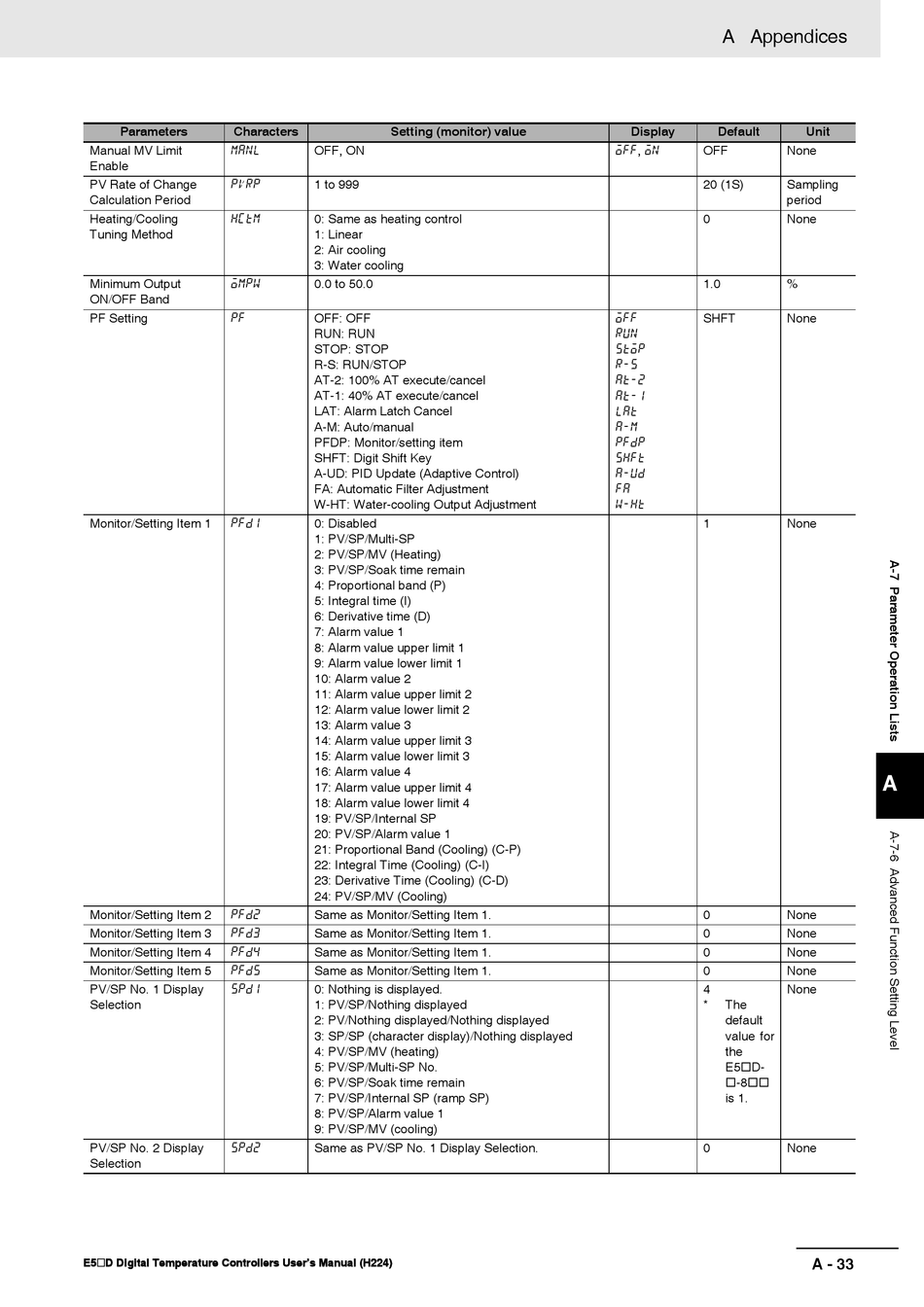

Omron E5*D series User Manual page 385

Parameters Characters
Manual MV Limit
manl
Enable
PV Rate of Change
pvrp
Calculation Period
Heating/Cooling
hctm
Tuning Method
Minimum Output
ompw
ON/OFF Band
PF Setting
pf
Monitor/Setting Item 1
pfd1
Monitor/Setting Item 2
pfd2
Monitor/Setting Item 3
pfd3
Monitor/Setting Item 4
pfd4
Monitor/Setting Item 5
pfd5
PV/SP No. 1 Display
spd1
Selection
PV/SP No. 2 Display
spd2
Selection
E5@D Digital Temperature Controllers User's Manual (H224)
Setting (monitor) value
OFF, ON
1 to 999
0: Same as heating control
1: Linear
2: Air cooling
3: Water cooling
0.0 to 50.0
OFF: OFF
RUN: RUN
STOP: STOP
R-S: RUN/STOP
AT-2: 100% AT execute/cancel
AT-1: 40% AT execute/cancel
LAT: Alarm Latch Cancel
A-M: Auto/manual
PFDP: Monitor/setting item
SHFT: Digit Shift Key
A-UD: PID Update (Adaptive Control)
FA: Automatic Filter Adjustment
W-HT: Water-cooling Output Adjustment
0: Disabled
1: PV/SP/Multi-SP
2: PV/SP/MV (Heating)
3: PV/SP/Soak time remain
4: Proportional band (P)
5: Integral time (I)
6: Derivative time (D)
7: Alarm value 1
8: Alarm value upper limit 1
9: Alarm value lower limit 1
10: Alarm value 2
11: Alarm value upper limit 2
12: Alarm value lower limit 2
13: Alarm value 3
14: Alarm value upper limit 3
15: Alarm value lower limit 3
16: Alarm value 4
17: Alarm value upper limit 4
18: Alarm value lower limit 4
19: PV/SP/Internal SP
20: PV/SP/Alarm value 1
21: Proportional Band (Cooling) (C-P)
22: Integral Time (Cooling) (C-I)
23: Derivative Time (Cooling) (C-D)
24: PV/SP/MV (Cooling)
Same as Monitor/Setting Item 1.
Same as Monitor/Setting Item 1.
Same as Monitor/Setting Item 1.
Same as Monitor/Setting Item 1.
0: Nothing is displayed.
1: PV/SP/Nothing displayed
2: PV/Nothing displayed/Nothing displayed
3: SP/SP (character display)/Nothing displayed
4: PV/SP/MV (heating)
5: PV/SP/Multi-SP No.
6: PV/SP/Soak time remain
7: PV/SP/Internal SP (ramp SP)
8: PV/SP/Alarm value 1
9: PV/SP/MV (cooling)
Same as PV/SP No. 1 Display Selection.
A Appendices
Display Default
OFF None
off, on
20 (1S) Sampling
period
0 None
1.0 %
SHFT None
off
run
stop
r-s
at-2
at-1
lat
a-m
pfdp
shft
a-ud
fa
w-ht
1 None
0 None
0 None
0 None
0 None
4 None
* The
default
value for
the
E5D-
-8
is 1.
0 None
Unit
A
