QUICK REFERENCE GUIDE FOR OPERATION AND MAINTENANCE
Read and follow the BUNN ULTRA Installation & Operating Guide included with your kit.
This Equipment Setup Guide is not intended to replace any manufacturer's process or procedure.
1
•
Unbox Bunn Ultra2 and place on counter top.
•
Ensure 6" of space around machine for ventilation.
•
Plug into dedicated 110v circuit.
•
Do not use an extension cord.
(See "Initial Setup" of the BUNN Installation & Operating Guide)
2
Rinse and sanitize hoppers and hopper components prior to filling with product.
(See Steps 11 - 13 of the "Disassembly & Cleaning" section of the "USE & CARE INSTRUCTIONS FOR ULTRA 1 & 2 COLD DRINK DISPENSER)
Follow the provided "ASSEMBLY" section of the "USE & CARE INSTRUCTIONS FOR ULTRA
1 & 2 COLD DRINK DISPENSER" to complete the dispenser installation.
3
Add 5 parts water 1 one part concentrate to mixing jug.
Shake and pour into Hopper (s).
4
Power on Bunn Ultra. Press Auger button to activate auger. Press temperature button and set to "ICE"
For more Setup help, click or go to:
http://slushpuppie.com/store/kit-setup/
EQUIPMENT SETUP GUIDE
CUSTOMER SERVICE: 1-800-423-3872
The ICEE Company, Ontario, CA 91761
MODEL:

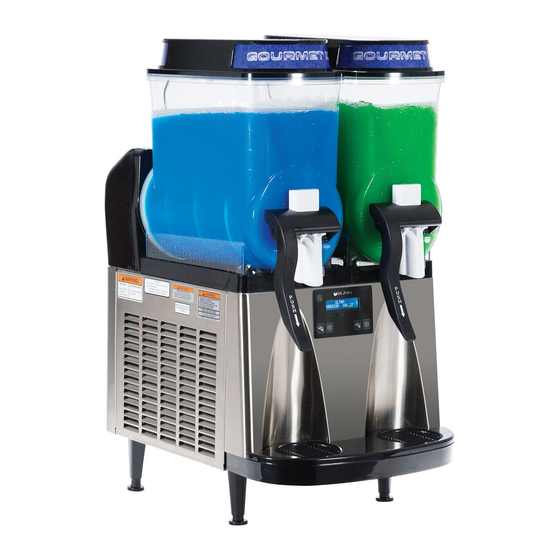

BUNN ULTRA 2
TEMPERATURE
POWER
AUGER
92801932_SP_IQRG_BUNN
Advertisement
Table of Contents
Related Manuals for Bunn ULTRA 2 Slush Puppie
Summary of Contents for Bunn ULTRA 2 Slush Puppie
- Page 1 Add 5 parts water 1 one part concentrate to mixing jug. TEMPERATURE Shake and pour into Hopper (s). POWER Power on Bunn Ultra. Press Auger button to activate auger. Press temperature button and set to “ICE” AUGER For more Setup help, click or go to: CUSTOMER SERVICE: 1-800-423-3872 http://slushpuppie.com/store/kit-setup/...
- Page 2 SIGNAGE SETUP GUIDE Install the SLUSH PUPPiE graphic to the BUNN ULTRA. Click the image to watch the instructional video. (Your BUNN ULTRA may already have the SLUSH PUPPiE decal applied.) Hang the SLUSH PUPPiE Mobile above the dispenser using the provide C-Clips.
- Page 3 MODEL: QUICK REFERENCE GUIDE FOR OPERATION AND MAINTENANCE BUNN ULTRA 2 BASIC OPERATIONS and SETTINGS Press the AUGER Press and release the Pour pre-mixed Press the ON / OFF TEMPERATURE button button to activate the product into hopper button to power unit on.
- Page 4 MODEL: QUICK REFERENCE GUIDE FOR OPERATION AND MAINTENANCE BUNN ULTRA 2 This guide is for quick reference only and is not intended to replace the information in the Operation Manual or Local Health Regulations! CLEANING TURN COOLING TO OFF SELECTION. EMPTY ALL PRODUCT FROM HOPPER(S). TURN AUGER TO OFF SELECTION.
- Page 5 MODEL: QUICK REFERENCE GUIDE FOR OPERATION AND MAINTENANCE BUNN ULTRA 2 ASSEMBLY Replace the auger nose Install the hopper seal over Set the hopper lid on the Align the auger shafts Install the hopper over the bushing inside the front of...
-
Page 6: Before You Call For Service
MODEL: QUICK REFERENCE GUIDE FOR OPERATION AND MAINTENANCE BUNN ULTRA 2 TROUBLE SHOOTING GUIDE Before you call for service... PROBLEM REASON SOLUTION NOTES Lid lights flash on and off Beverage levels low Refill beverage hopper with premixed product Be sure there is a minimum of 6 inches of air space at the...
