Instruction Manual
D102178X012
Fisher
V260 Rotary Pipeline Ball Valve
™
Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
Scope of Manual
This instruction manual provides installation, operation, maintenance, and parts information for the Fisher V260
control valve. Refer to separate manuals for information concerning the actuator, positioner, and accessories (see
figure 1).
Do not install, operate, or maintain a V260 valve without being fully trained and qualified in valve, actuator, and
accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to
carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. If you
have any questions about these instructions, contact your
proceeding.
Description
V260 throttling ball valves are available in single-seal, double block-and-bleed, dual-seal, and bidirectional flow
constructions with or without attenuators. Valves with dome-style attenuators combine the efficiency of a rotary valve
with the noise reducing capability of a special trim (figure 4). Valves without attenuators present little or no restriction
to flow at full travel.
www.Fisher.com
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .

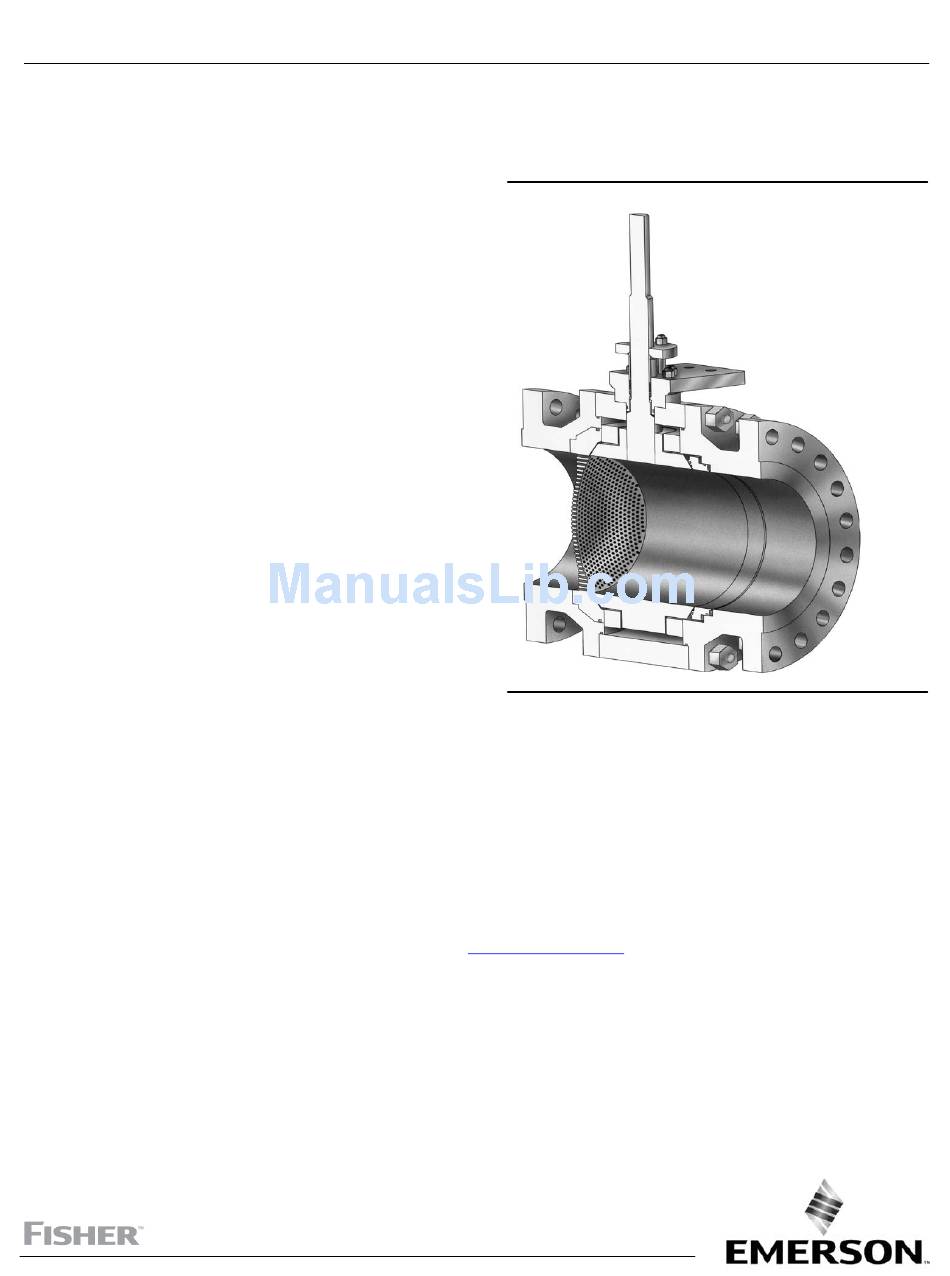

Figure 1. Fisher V260 Sectional View
1
1
1
2
2
3
4
5
5
6
7
9
12
12
12
12
14
W6365-2
Emerson sales office
or Local Business Partner before
V260 Valve
July 2017
Advertisement
Table of Contents
Related Manuals for Fisher V260
Summary of Contents for Fisher V260
-
Page 1: Table Of Contents
Refer to separate manuals for information concerning the actuator, positioner, and accessories (see figure 1). Do not install, operate, or maintain a V260 valve without being fully trained and qualified in valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety cautions and warnings. -
Page 2: Specifications
Emerson sales office or Local Business Partner for higher temperature options, up to 232_C (450_F). Educational Services For information on available courses for Fisher V260 valves, as well as a variety of other products, contact: Emerson Automation Solutions Educational Services - Registration Phone: 1-641-754-3771 or 1-800-338-8158 E-mail: education@emerson.com... -
Page 3: Installation
Instruction Manual V260 Valve D102178X012 July 2017 Installation WARNING D To avoid personal injury, always wear protective gloves, clothing, and eyewear when performing any installation operations. D To avoid personal injury or property damage resulting from the bursting of pressure retaining parts, be certain the service conditions do not exceed the limits given in this manual. -
Page 4: Maintenance
8. If the valve has ENVIRO‐SEAL™ live‐loaded packing installed, an initial re‐adjustment may not be required, depending on your application. See the Fisher instruction manual titled ENVIRO‐SEAL Packing System for Rotary Valves (D101643X012) for packing instructions and adjustments (see figure 3). -
Page 5: Packing Maintenance
Instruction Manual V260 Valve D102178X012 July 2017 Key numbers are shown in figure 6, unless otherwise noted. WARNING Avoid personal injury or equipment damage from sudden release of process pressure or uncontrolled movement of parts. Before performing any maintenance operations: D Do not remove the actuator from the valve while the valve is still pressurized. -
Page 6: Replacing Packing
Instruction Manual V260 Valve July 2017 D102178X012 Replacing Packing Replacing the packing requires bleeding off the system and removing the actuator from the valve. Valve/actuator adjustments cannot be made correctly without observing the fully open or closed position of the ball (key 11). It is not necessary to remove the valve from the pipeline, if care is taken to note the position and alignment of the lever and shaft and to not disturb the turnbuckle position. -
Page 7: Seal Ring Maintenance Disassembly
Instruction Manual V260 Valve D102178X012 July 2017 a. Remove the actuator mounting screws, bolts, or nuts. CAUTION When removing the actuator from the valve, do not use a hammer or similar tool to drive the lever or actuator off the valve shaft. - Page 8 Instruction Manual V260 Valve July 2017 D102178X012 See the WARNING at the beginning of the Maintenance section for more information before removing the valve from the pipeline. Disassemble the valve only to the extent necessary to accomplish the needed inspection and repairs. For some repairs (for example, the trim parts only) complete disassembly of the valve is not necessary.
-
Page 9: Assembly
Instruction Manual V260 Valve D102178X012 July 2017 9. Turn the tailpiece over so the seal assembly is facing up, and place it on a clean soft surface with the flange face down. 10. From the tailpiece assembly or from the valve, remove the seal assembly, wave spring, and O‐ring seal (keys 8 and 7). - Page 10 Instruction Manual V260 Valve July 2017 D102178X012 Note Verify that the ball opens into the dome windows last. (See figure 5) If not, remove the dome and tailpiece and turn it 180 degrees to allow the windows to open last.
- Page 11 Instruction Manual V260 Valve D102178X012 July 2017 Table 3. Torque Values VALVE BODY HEX NUT (KEY 19) MOUNTING FLANGE HEX NUT (KEY 23) PRESSURE VALVE SIZE, NPS RATING lbf‐ft lbf‐ft CL150 CL300 CL600 CL150 CL300 CL600 CL150 CL300 CL600 CL150...
-
Page 12: Actuator Mounting
Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the performance of the valve, and could cause personal injury and property damage. - Page 13 Instruction Manual V260 Valve D102178X012 July 2017 Figure 4. Ball Attenuator Construction Details E0816 HI-DENSITY CHARACTERIZED ATTENUATOR ATTENUATOR Figure 5. Exploded View of Dome, Ball, Tailpiece and Bearing Plates E0817...
-
Page 14: Parts List
Instruction Manual V260 Valve D102178X012 July 2017 Parts List Description Inlet Seal Assembly Dowel Pin (4 req'd) Body Hex Nut Drive Shaft Note Actuator Mounting Cap Screw (4 req'd) Contact your Emerson sales office or Local Business Partner for Part Packing Housing Stud, Steel Ordering Information. - Page 15 Instruction Manual V260 Valve D102178X012 July 2017 Figure 6. Fisher V260 Valve Assembly STANDARD FLOW DIRECTION NOTE: KEY NUMBERS 25, 33, AND 34 ARE NOT SHOWN. 54B9811‐D ATTENUATOR DOME WITH NO SEAL...
-
Page 16: D102178X012 July
Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user. Fisher and ENVIRO-SEAL are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co.
