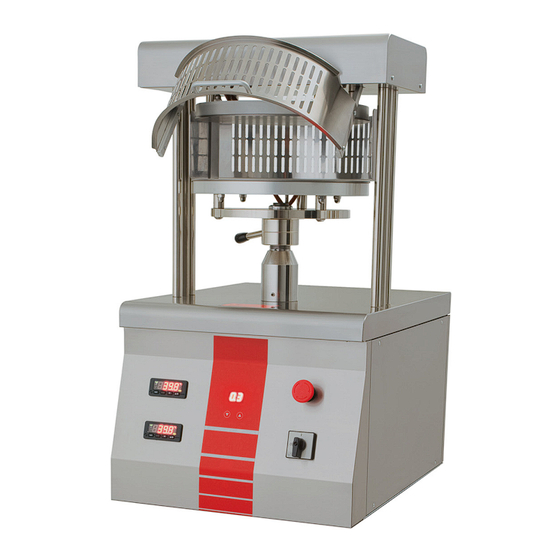

Pizza Shaping Machine
Model BE-IT-0045
Item 45356
Instruction Manual
Locally QPS
Revised - 03/24/2017
Approved
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE-IT-0045 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan BE-IT-0045

Summary of Contents for Omcan BE-IT-0045

  • Page 1 Pizza Shaping Machine Model BE-IT-0045 Item 45356 Instruction Manual Locally QPS Revised - 03/24/2017 Approved Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model BE-IT-0045 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications ---------------------------------------------------------------------- 6 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance ----------------------------------------------------------------------------------- 9 - 10 Troubleshooting ----------------------------------------------------------------------------- 10 - 11...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty • Check that the ground connection of the electrical system is functioning properly. • Always use individual safety devices and other means of protection in compliance with the law. WARNINGS FOR THE USER The conditions in the surrounding area where the machine will be installed must have the following characteristics: •...

  • Page 6: Technical Specifications

    1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 7: Operation

    Technical Specifications Model BE-IT-0045 Weight of Portion 250÷500g Diameter of Upper Plate 17.7” / 450mm Diameter of Lower Plate 17.7” / 450mm Voltage 230 1Ph+N+T Power 6.1 kW Dimensions 24.8” x 26.4” x 35” / 630 x 670 x 890mm Weight 280 lbs.
  • Page 8 Operation How to regulate the thickness The machine is provided with a medium (about 1 mm) size regulation for the shapes of pizza. With this machine you can have different thicknesses of dough to suit all requirements by just turning the regulating knob F.

  • Page 9: Maintenance

    Operation state when: • The machine stops when the front protection is lifted. • The machine does not start when the rear protection is lifted or removed. PROGRAMMING THE THERMOSTAT The thermostat starts automatically when the switch (A) is turned on. During normal operation the display will show the temperature of the plate.

  • Page 10: Troubleshooting

    Maintenance ORDINARY MAINTENANCE FOR THE USER The forming machine requires simple, frequent and careful cleaning to ensure efficient, regular functioning. GENERAL CLEANING The machine must be cleaned at the end of each use, in compliance with the hygiene regulations and to safeguard machine operation.

  • Page 11: Parts Breakdown

    Troubleshooting REFERENCE Item Number Model Number Description Manufacturer Model Number 45356 BE-IT-0045 Pizza Shaping Machine 230V/60Hz/1ph PF45 Parts Breakdown Model BE-IT-0045 45356...
  • Page 12 Parts Breakdown Model BE-IT-0045 45356...
  • Page 13 Parts Breakdown Model BE-IT-0045 45356...
  • Page 14 Parts Breakdown Model BE-IT-0045 45356...
  • Page 15 Parts Breakdown Model BE-IT-0045 45356...
  • Page 16 Parts Breakdown Model BE-IT-0045 45356...
  • Page 17 Parts Breakdown Model BE-IT-0045 45356...
  • Page 18 Parts Breakdown Model BE-IT-0045 45356...
  • Page 19 Parts Breakdown Model BE-IT-0045 45356...
  • Page 20 Parts Breakdown Model BE-IT-0045 45356...
  • Page 21 Parts Breakdown Model BE-IT-0045 45356...
  • Page 22 Parts Breakdown Model BE-IT-0045 45356...
  • Page 23 Parts Breakdown Model BE-IT-0045 45356 Item No. Description Position Item No. Description Position Item No. Description Position Joint Bearing Support UCP 205 for 61072 Side Panel for PF45 61093 Bottom Assembly for PF45 61366 A89CK66003 PF45 Intermediate Crossbeam Assembly 61073...

  • Page 24: Electrical Schematics

    Electrical Schematics Model BE-IT-0045 45356...

  • Page 25: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 27: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
