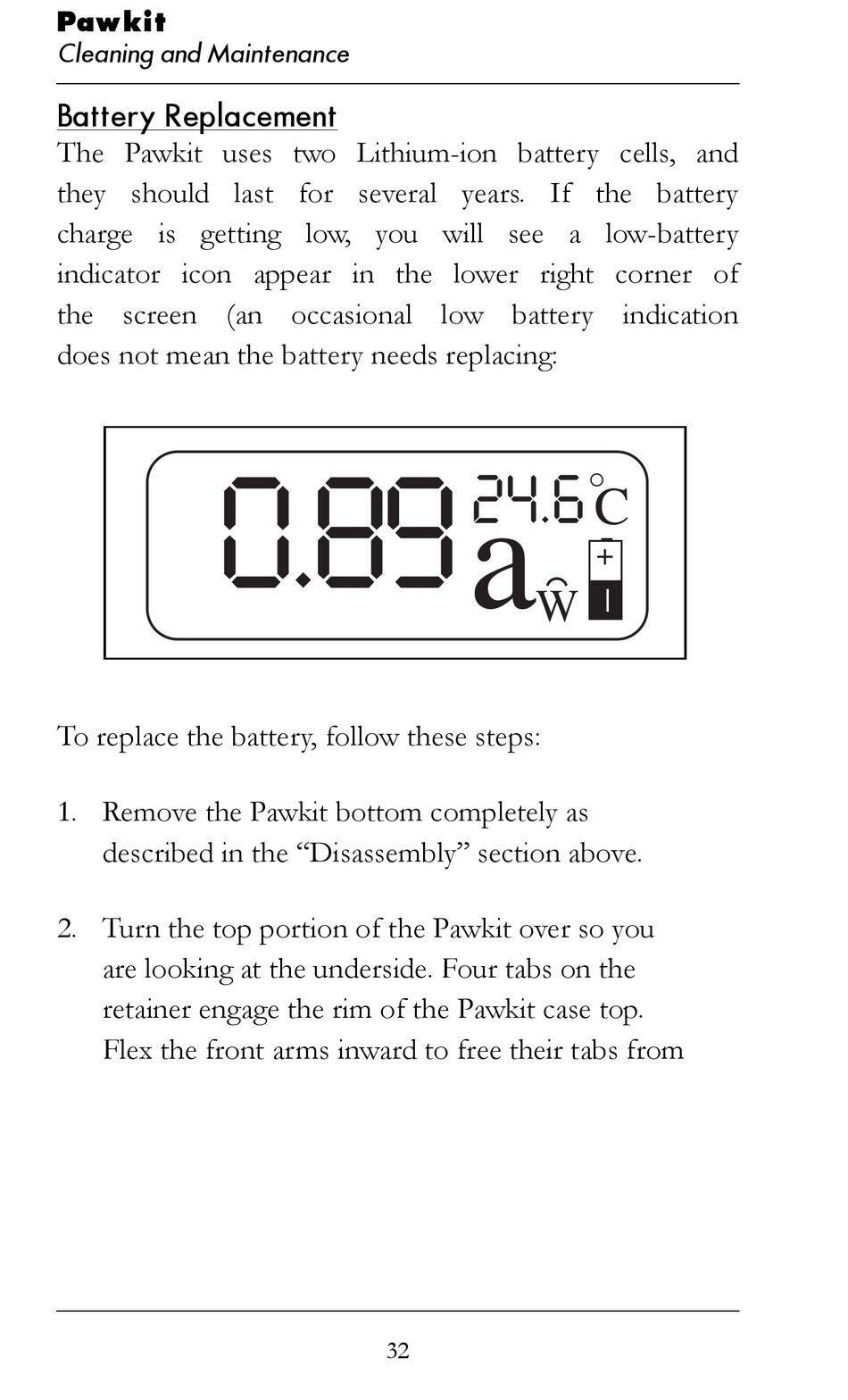

Battery Replacement - Decagon Devices Pawkit Operator's Manual

Pawkit
Cleaning and Maintenance

Battery Replacement

The Pawkit uses two Lithium-ion battery cells, and
they should last for several years. If the battery
charge is getting low, you will see a low-battery
indicator icon appear in the lower right corner of
the screen (an occasional low battery indication
does not mean the battery needs replacing:
To replace the battery, follow these steps:
1. Remove the Pawkit bottom completely as
described in the "Disassembly" section above.
2. Turn the top portion of the Pawkit over so you
are looking at the underside. Four tabs on the
retainer engage the rim of the Pawkit case top.
Flex the front arms inward to free their tabs from
