Decagon Devices SC-1 Quick Start Manual

Making a Measurement

1. Connect the sensor head to your Porometer via the serial port. Press the
Power button on the keypad.
2. While on the Main screen, press Enter to begin the reading.

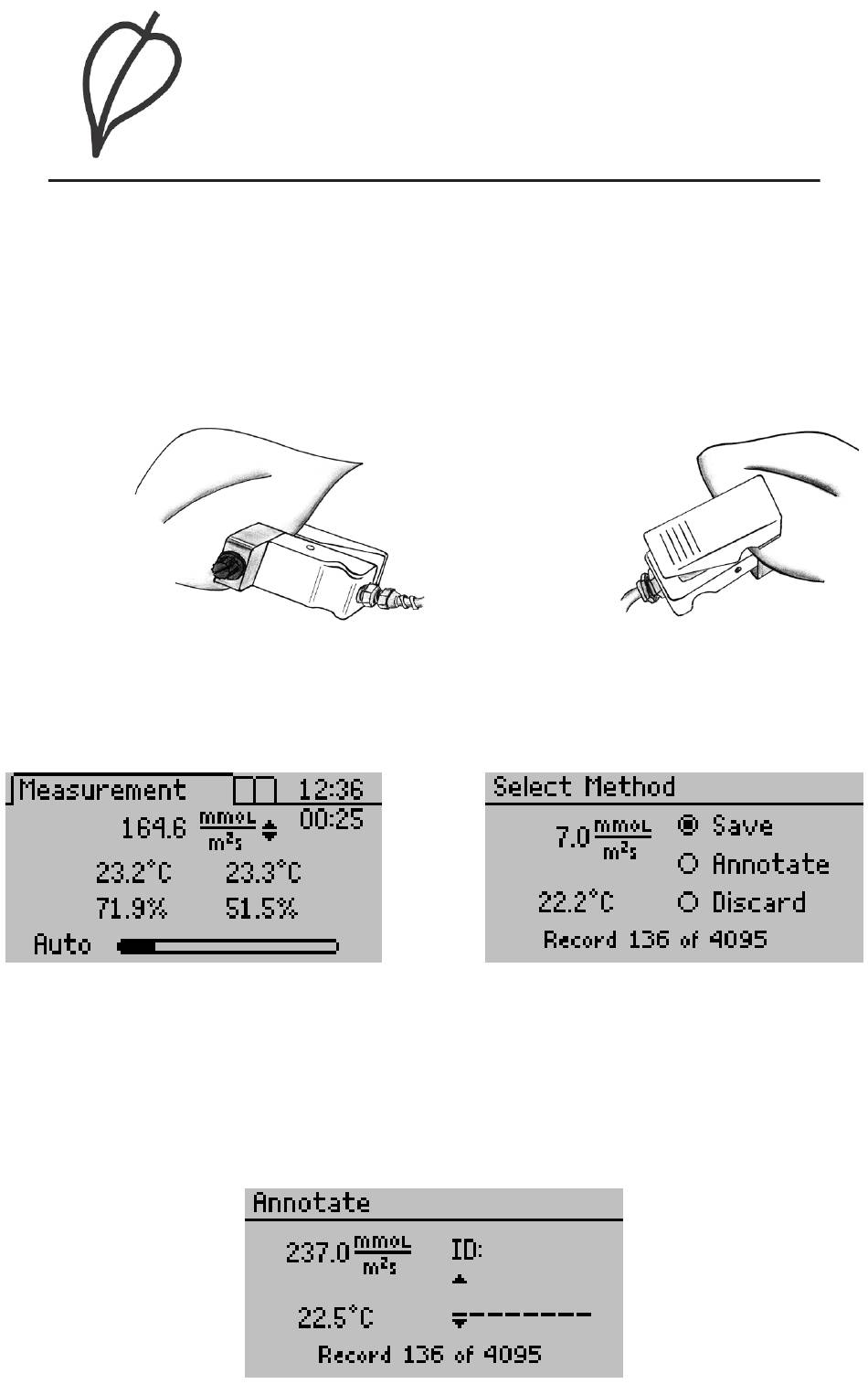

3. Place the sensor on the top or bottom of the leaf, as indicated by the pictures.
Make sure not to have desiccant chamber facing upward!
Measuring
top of leaf
If using a bead in conjunction with desiccant, only take readings with the metal
portion towards the ground.
4. A progress bar will appear, indicating that a reading is taking place.
5. Once the reading is complete, save the reading by selecting a save method and
pressing Enter. Selecting "Annotate" allows you to name the measurement you
are saving. Use the arrow keys to select a letter or number. Press Enter to move
to the next character, or Escape to move to the previous one. Holding down
the up or down arrow key will scroll through the alphabet quickly and will
allow you to more easily choose a character. When you have finished, press
Enter until you return to the Main screen.
SC-1 Leaf Porometer
Quick Start Guide
Read this before using your Leaf Porometer
Measuring
bottom of leaf
