Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at
5 p.m., EST, Friday.
EB15437
Purchase Date
1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
1

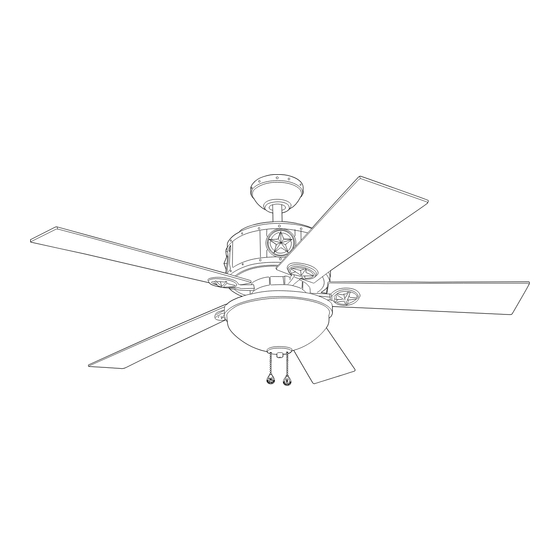

THOROUGHBRED
CEILING FAN
MODEL
#TEX52MBK5C1L
Lowes.com/harborbreeze
ITEM #0747609
Español p. 22
LISTED
E192641
Advertisement
Table of Contents
Related Manuals for Harbor Breeze TEX52MBK5C1L
Summary of Contents for Harbor Breeze TEX52MBK5C1L
-
Page 1: Ceiling Fan
ITEM #0747609 THOROUGHBRED CEILING FAN Harbor Breeze® is a registered trademark MODEL #TEX52MBK5C1L of LF, LLC. All Rights Reserved. Español p. 22 LISTED ATTACH YOUR RECEIPT HERE E192641 Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-800-643-0067, 8 a.m. -
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Information ......................2 Package Contents ......................4 Hardware Contents ......................5 Preparation ........................5 Initial Installation ........................ 5 Fan Mounting ........................7 Wiring ..........................9 Final Installation ........................ 11 Installing Fan With Light Kit ....................13 Installing Fan Without Light Kit .................. - Page 3 SAFETY INFORMATION WARNING WARNING WARNING To reduce the risk of fire, electrical shock or personal injury, mount fan to outlet box marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. OR LESS" and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced.
-
Page 4: Package Contents
PACKAGE CONTENTS DESCRIPTION QUANTITY Pin (preassembled) PART DESCRIPTION QUANTITY Clip (preassembled) Downrod Motor Screw Mounting Bracket (preassembled) + 1 extra Canopy Lock Washer Canopy Cover (preassembled) + 1 extra Yoke Cover Canopy Mounting Screw 15-watt Bulb (preassembled) (preassembled) Switch Housing Screw Motor Housing (preassembled) Switch Housing Plate... -
Page 5: Hardware Contents
HARDWARE CONTENTS (shown actual size) Blade Blade Washer Screw Qty. 1 Wire Connector Qty. 15 Qty. 15 + 1 extra + 1 extra Qty. 4 PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. - Page 6 INITIAL INSTALLATION Determine mounting method to use. A. Standard mount B. Angle mount IMPORTANT: If using the angle mount, ensure the ceiling angle is not steeper than 19°. *Helpful Hint: Standard mounting is best suited for ceilings 8 ft. high or higher. For taller ceilings you may want to use a longer downrod (not included).
-
Page 7: Fan Mounting
INITIAL INSTALLATION Remove motor screws (R) and lock washers (S) from underside of motor housing (G) and save for later on. Note: If there are plastic motor blocks installed with the motor screws (R) and lock washers (S), discard the plastic motor blocks. FAN MOUNTING Remove pin (P) and clip (Q) from yoke at top of motor housing (G) and partially loosen... - Page 8 FAN MOUNTING 3. Slip downrod (A) into yoke, align holes and re-install pin (P) and clip (Q). Tighten set screws and then tighten nuts on the set screws. Slide yoke cover (E) down until it rests on top of motor housing (G).
-
Page 9: Wiring
FAN MOUNTING Install hanging ball of downrod (A) into opening of mounting bracket (B). Align the slot in hanging ball with the tab in mounting bracket (B). DANGER: Failure to align slot in hanging ball with the tab in mounting bracket (B) may result in serious injury or death. - Page 10 WIRING 1b. FAN CONTROLLED BY PULL CHAIN, LIGHT FAN CONTROLLED BY PULL CHAIN, LIGHT BY WALL SWITCH FAN AND LIGHT CONTROLLED BY TWO WALL SWITCHES BY WALL SWITCH: If you intend to control the fan light with a separate wall switch, connect BLACK 120V POWER wire from fan to BLACK wire from ceiling.
-
Page 11: Final Installation
WIRING IMPORTANT: Using a full range dimmer switch (not included) to control fan speed will cause a loud humming noise from fan. To reduce the risk of fire or electrical shock, do NOT use a full range dimmer switch to control fan speed. Dimmer Speed Switch... - Page 12 FINAL INSTALLATION Insert two motor screws (R) along with lock washers (S) previously removed (Step 5, page 7) through one blade arm (N) and back into the holes on the underside of motor housing (G). Tighten motor screws (R) securely. Repeat with remaining blade arms (N), making sure to completely secure each blade arm (N) before proceeding with the next.
-
Page 13: Installing Fan With Light Kit
INSTALLING FAN WITH LIGHT KIT If you wish to use the fan WITH the light kit, connect male plug from motor housing (G) to female plug from switch housing on top of light kit fitter (I), matching up the colors on the male plug with the colors on the female plug for a proper fit. -
Page 14: Installing Fan Without Light Kit
INSTALLING FAN WITH LIGHT KIT Allow preassembled pull chains to come through light kit fitter (I) slots. Then, align center hole in glass shade (J) with threaded rod, allowing pull chains to come through corresponding holes in glass shade (J). Push up gently on glass shade (J) until threaded rod comes through hole. - Page 15 INSTALLING FAN WITHOUT LIGHT KIT Firmly place cap (DD) in hole in middle of switch housing. Connect male plug from motor housing (G) to female plug from the switch housing, matching Male up the colors on the male plug with the colors on Plug the female plug for a proper fit.
-
Page 16: Operating Instructions
OPERATING INSTRUCTIONS The pull chain located on the switch housing labeled FOR FAN has four positions to control fan speed. One pull is HIGH, two is MEDIUM, three is LOW and four turns the fan OFF. The pull chain located on the switch housing labeled FOR LIGHT has four positions to control light output. - Page 17 OPERATING INSTRUCTIONS 3. Use the fan reverse switch, located on the switch housing, to optimize your fan for seasonal performance. A ceiling fan will allow you to raise your thermostat setting in summer and lower your thermostat setting in winter without feeling a difference in your comfort.
-
Page 18: Care And Maintenance
CARE AND MAINTENANCE At least twice each year, lower canopy (C) to check mounting bracket (B), and then tighten all screws on fan. Clean fan with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades (O) with a lint-free cloth. -
Page 19: Troubleshooting
TROUBLESHOOTING WARNING: Before beginning work, shut off the power supply to avoid electrical shock. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan does not move. 1. Reverse switch not engaged. 1. Push switch firmly either left or right. 2. Power is off or fuse is blown. 2. -
Page 20: Limited Lifetime Warranty
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Fan operates but 1. Check wires in canopy and, if 1. Wires in canopy not wired properly. necessary, re-wire according to light fails. instructions on pages 9 and 10. 2. Wall switch to fan is off. 2. -
Page 21: Replacement Parts List
DESCRIPTION PART # Downrod 747609-A Mounting Bracket 747609-B Canopy 747609-C Switch Housing Plate 747609-H Light Kit Fitter 747609-I Blade Arm 747609-N Blade 747609-O Printed in China Harbor Breeze® is a registered trademark of LF, LLC. All Rights Reserved. Lowes.com/harborbreeze LI1509...
