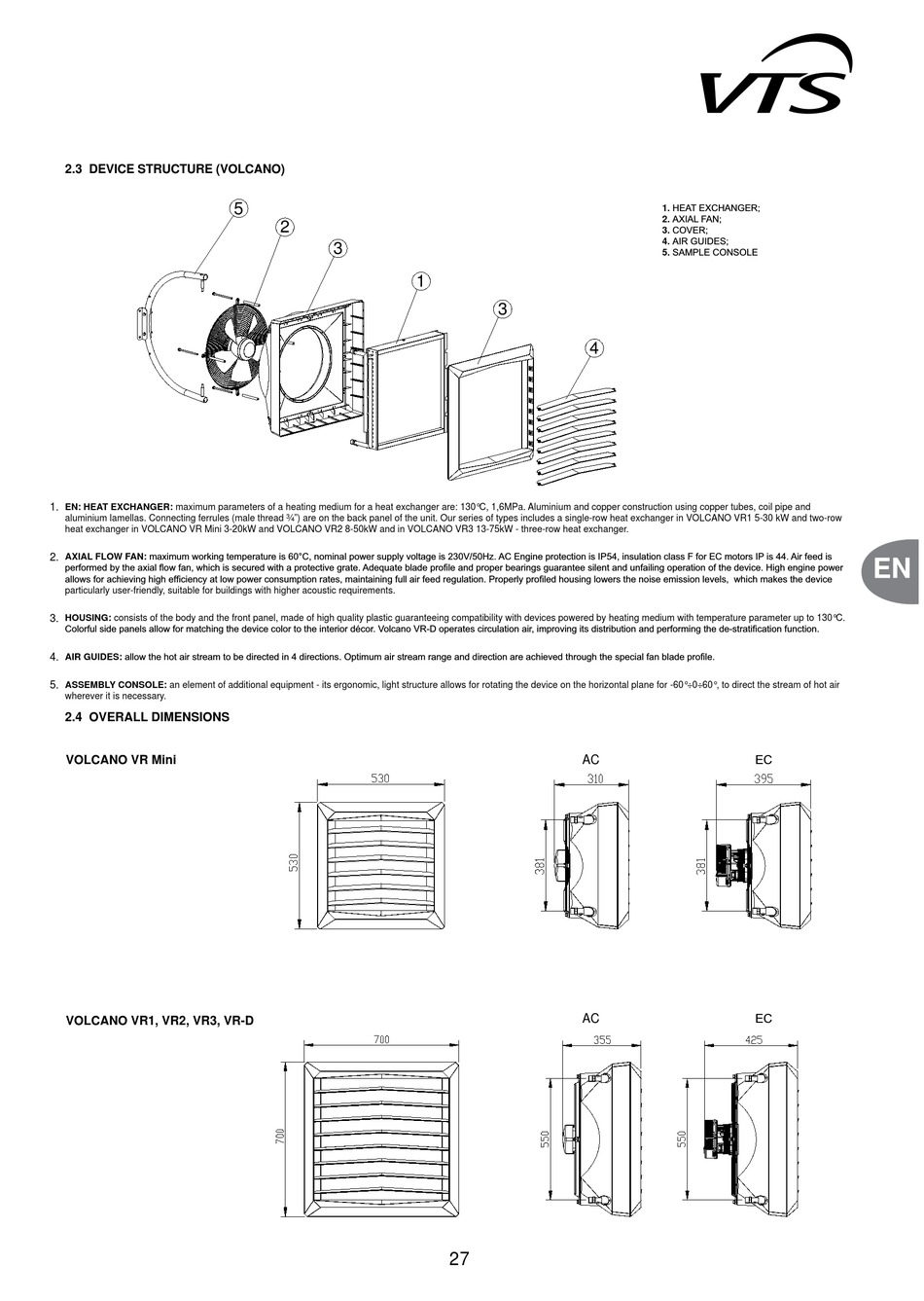

2.3 DEVICE STRUCTURE (VOLCANO)
1.
EN: HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 130°C, 1,6MPa. Aluminium and copper construction using copper tubes, coil pipe and
aluminium lamellas. Connecting ferrules (male thread ¾") are on the back panel of the unit. Our series of types includes a single-row heat exchanger in VOLCANO VR1 5-30 kW and two-row
heat exchanger in VOLCANO VR Mini 3-20kW and VOLCANO VR2 8-50kW and in VOLCANO VR3 13-75kW - three-row heat exchanger.
2.
AXIAL FLOW FAN:
particularly user-friendly, suitable for buildings with higher acoustic requirements.
3.
HOUSING: consists of the body and the front panel, made of high quality plastic guaranteeing compatibility with devices powered by heating medium with temperature parameter up to 130°C.
4.
AIR GUIDES:
5.
ASSEMBLY CONSOLE: an element of additional equipment - its ergonomic, light structure allows for rotating the device on the horizontal plane for -60°÷0÷60°, to direct the stream of hot air
wherever it is necessary.

2.4 OVERALL DIMENSIONS

VOLCANO VR Mini
VOLCANO VR1, VR2, VR3, VR-D
5
2
3
1
3
4
AC
AC
27
1.
2.
3.
4.
5.
EN
