- Page 1 USER GUIDE WARFET www.gatee.eu Last update on December 22, 2016...
-
Page 2: Safety Summary
WARFET USER GUIDE GATE Menet, Wojtak Sp. J. does not take any responsibility for damages, injuries and accidents resulting in the use of this product or the use of Air Electric Gun with the product installed. Notice Information contained in this document is subject to updating without notice. - Page 3 CERTIFICATE OF CONFORMITY GATE Menet, Wojtak Sp. J. hereby declares under our sole responsibility that the product GATE WARFET is in conformity with the essential requirements of the following Directives: EC DIRECTIVE 2011/65/EU This product has been certified as RoHS Compliant.
-
Page 4: Table Of Contents
Power Module without replacement of wires ..16 WARFET • Installation of Power Module with replacement of wires ...17 04. Set up your WARFET Power Module with Tactical Programming Card ....18 05. Pre-cocking Boost adjustment ................20 06. Troubleshooting ......................22 07. GATE Limited Warranty Policy ................24... -
Page 5: Overview
WARFET USER GUIDE 01. Overview WARFET is GATE's most advanced AEG Control System. It has 20 functions and almost 6 million possible configurations. The outstanding Tactical Programming WARFET Card provides you with very easy access to the Power Module settings. -
Page 6: Power Module Parameters
WARFET USER GUIDE WARFET • In hardwired installation, draws the energy from the battery directly to the motor, bypassing the mechanical trigger contacts • Resistant to atmospheric conditions (military specifications: MIL-V-173C) • Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4 •... -

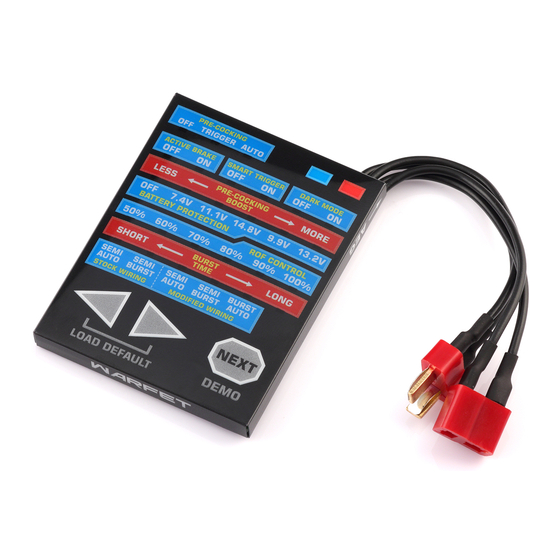

Page 7: Tactical Programming Card Parameters
WARFET USER GUIDE Tactical Programming Card parameters 5-17V Supply voltage: 67x53x7mm Dimensions: Weight: 27.3g Number of LEDs: Number of buttons: WWW.GATEE.EU... -
Page 8: Key Functions
WARFET USER GUIDE Key Functions Tactical Programming Card The outstanding Tactical Programming Card provides you with very easy access to the Power Module settings. All you need to do is connect the Tactical Programming Card between the battery and the Power Module. - Page 9 WARFET USER GUIDE 3-rd burst Burst mode enables you to make 3-shot series. In this way you can save ammunition and increase the realism. You can change AUTO mode to BURST mode or SEMI* mode to BURST mode. If in SAFE/SEMI/BURST mode you release the trigger earlier, you can make one or two shots.
- Page 10 WARFET USER GUIDE Battery Protection Protection against Over-Discharge of the Battery. Modern LiPo and LiFe batteries are very sensitive to over-discharge. If you do not want to damage the battery and you care about its service life, this protection is indispensable. The microprocessor monitors the battery voltage constantly.
- Page 11 WARFET USER GUIDE MOSFET Do you want to achieve a higher rate of fire and faster trigger response? Are you planning a power upgrade of your rifle? In that case, you need a MOSFET. It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts.
- Page 12 WARFET USER GUIDE Hardwired In the case of a hardwired installation, the Power Module draws the power from the battery directly to the motor, bypassing the mechanical trigger contacts. This requires a modification of the AEG installation. MINI TAMIYA Ready Thanks to the Mini Tamiya Adapters included in kit, you will be able to smoothly connect AEG Control System to your original installation.
-
Page 13: Package Contents
WARFET USER GUIDE Included in the kit: Tactical Programming Card Pair of Deans-T Connectors WARFET Power Module Single Trigger Wire Battery Mini Tamiya adapter Double Trigger Wire AEG Mini Tamiya adapter Quickstart Guide WWW.GATEE.EU... -
Page 14: Plug&Play Installation
WARFET USER GUIDE WARFET Also available Power Module Kit which includes: WARFET • Power Module • Pair of Deans-T Connectors • Battery Mini Tamiya adapter • Single Trigger Wire • AEG Mini Tamiya adapter • Double Trigger Wire PLEASE NOTE There is no Programming Card included in this kit. - Page 15 WARFET USER GUIDE WARFET Step 2. Connect the battery to Power Module. The LED indicator glows BLUE for one second. BATTERY WARFET UP TO 14.8V FUSE WARNING! Incorrectly connecting positive and negative battery terminals will cause immediate damage to the unit and it can lead to fire.
-
Page 16: Hardwired Installation
WARFET USER GUIDE 03. Hardwired Installation Step 1. Switch mode. To be able to work with Hardwired Installation, necessarily go to chapter 04. (Programming Card usage, p. 18) and switch mode to MODIFIED WIRING. SEMI SEMI SEMI SEMI BURST AUTO... - Page 17 WARFET USER GUIDE The trigger wire is very thin because it handles very low current and it is only used for switch-detection. Now connect the device between the battery and AEG. Do not forget about the trigger wire. Connect it to the top pin.
-
Page 18: Set Up Your Warfet Power Module With Tactical Programming Card
WARFET USER GUIDE 04. Set up your WARFET Power Module with Tactical Programming Card BATTERY CONNECTOR POWER MODULE CONNECTOR BATTERY WARFET UP TO 14.8V FUSE PROGRAMMING CARD BLUE ICON PRE-COCKING RED ICON TRIGGER AUTO ACTIVE BRAKE SMART TRIGGER DARK MODE... - Page 19 WARFET USER GUIDE 4. Click and hold button NEXT to watch DEMO. 5. Click button NEXT to switch between functions and displays. 6. Click buttons LEFT or RIGHT to switch options. 7. Click and hold buttons LEFT or RIGHT to switch options more quickly.
-
Page 20: Pre-Cocking Boost Adjustment
WARFET USER GUIDE 05. Pre-cocking boost adjustment PLEASE NOTE! Making changes in Active Brake, Smart Trigger, ROF Control or BURST TIME settings might result in necessity of re-adjustment of Pre-cocking Boost. Therefore, Pre-cocking Boost WARFET settings should be exercised as the last step of configuration. - Page 21 WARFET USER GUIDE b) if the second trigger action compresses the spring, you can try to increase Pre-cocking Boost value to raise efficiency of Pre-cocking. Go to Pre-cocking Boost settings and increase Pre-cocking Boost value. PRE-COCKING LESS MORE BOOST LED is blinking...
-
Page 22: Troubleshooting
A short-circuit of the motor. Connect another motor. After a trigger action, the LED A permanent damage to the Power Contact GATE Technical Support: indicator blinks red. Even though Module. support@gatee.eu the motor is connected, the AEG does not fire. - Page 23 WARFET USER GUIDE MALFUNCTION POSSIBLE REASON WHAT TO DO WARFET WARFET After a trigger action, the LED is set on the Reprogram the indicator glows yellow. Even Modified Wiring mode. the Stock Wiring mode. though the motor is connected, the AEG does not fire.
-
Page 24: Gate Limited Warranty Policy
USER GUIDE 07. GATE Limited Warranty Policy GATE Menet, Wojtak Sp. J. warrants that this Product is free from manufacturing and material defects at the date of purchase and for a period of one (1) year from the date of purchase and it is not-extendable. This Limited Warranty concerns both the Power Module and the Tactical Programming Card and is conditioned upon proper use of them by Purchaser.
