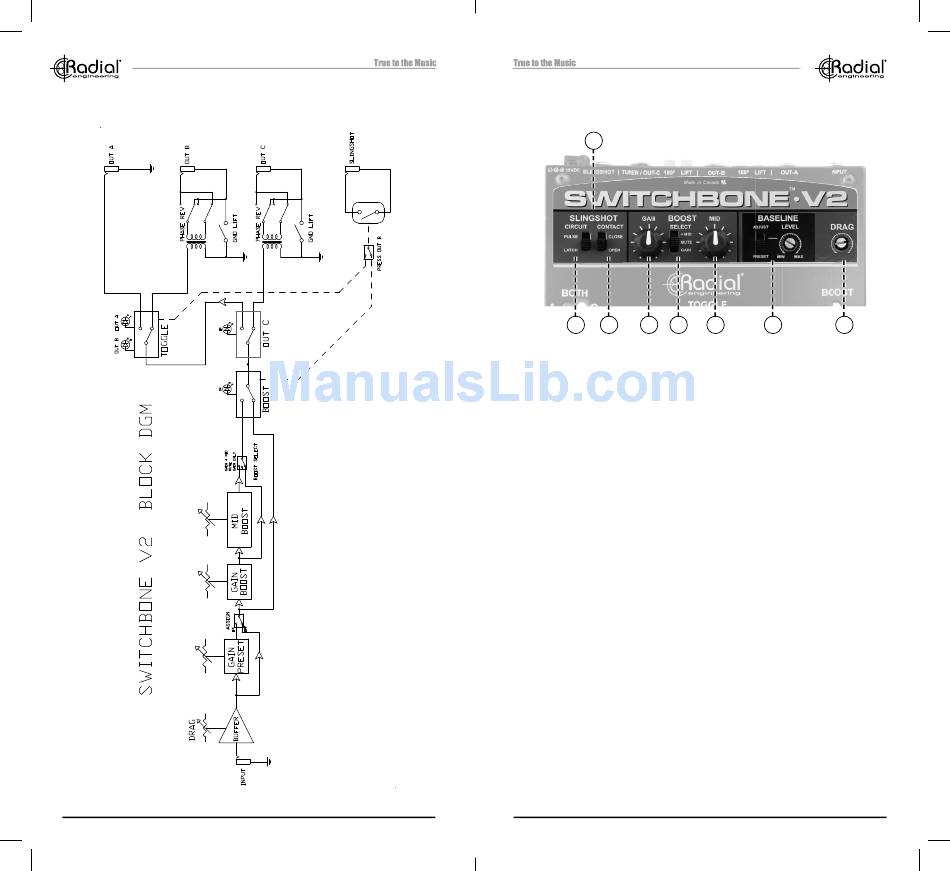

Switchbone ABC Block Diagram
Radial Engineering Ltd.
14
Switchbone V2
14
15 16 17 18
14. SLINGSHOT CIRCUIT: Lets you send a on-off type command to
external devices via a ¼" cable. The Slingshot may be activated
using the BOOST or the TOGGLE footswitches.
15. CIRCUIT: Sets the Slingshot to latching or pulse modes.
16. CONTACT: Sets the Slingshot contact closure to normally open or
normally closed.
17. GAIN: Sets the boost output level from 0dB to +18dB.
18. SELECT: Assigns the BOOST footswitch to MUTE, GAIN only or
GAIN + MID boost.
19. MID: Variable control, delivers up to 12dB of mid boost for soloing.
20. ADJUST / PRESET: Selects buffer between the unity gain setting
or the user-adjustable level.
21. DRAG: Variable control is used to set the load that is applied on
the pickup from 22K to 1 Meg.
