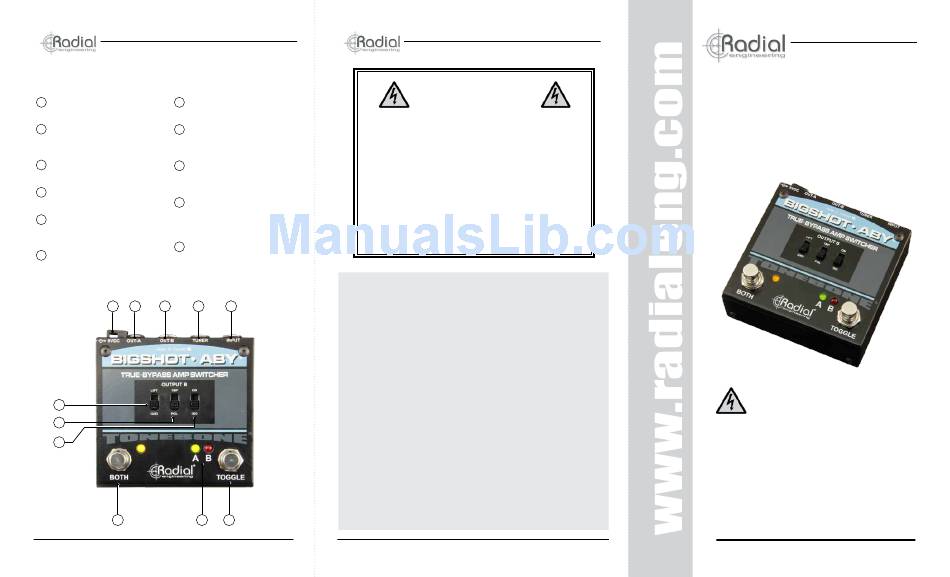

FEATURE AND FUNCTIONS

INPUT jack connects the cable
A/B LED two LED status indica-
1
7
from your instrument.
tors to display the active amp.
TUNER jack common output
BOTH footswitch with LED indi-
2
8
that can be used for an elec-
cator turns outputs A and B on at
tronic tuner. It is always on.
the same time.
3
OUTPUT-A jack connects to
ISO switch engages the internal
9
your main amp.
isolation transformer on output B
to eliminate ground loop hum.
OUTPUT-B jack connects to
4
your second amp.
180º switch reverses the phase
10
on output B. This switch only
9VDC power jack connection
works when the ISO transformer
5
for power supply (for LED's
is engaged.
only).
LIFT switch disconnects or 'lifts'
11
TOGGLE footswitch selects
the ground from the cable shield
6
between output A or B.
on output B.
5
4
3
2
11
10
9
8
7
Radial Engineering Ltd.

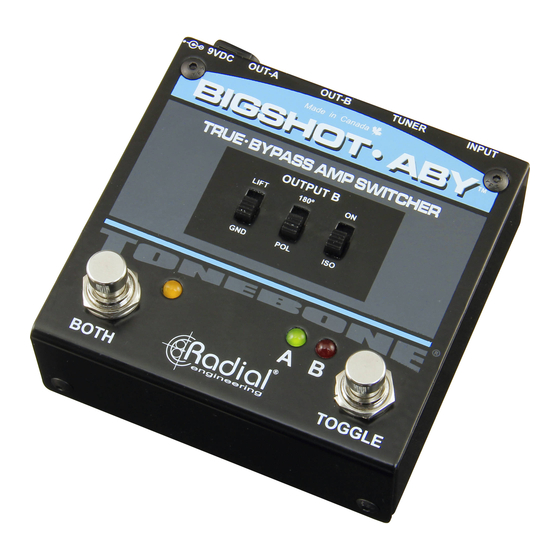

BigShot ABY
True to the Music
®
The Radial BigShot ABY is a passive switcher that is specifically designed for use
with amplifiers with proper electrical safety grounds that have been approved by
nationally recognized electrical authorities such as UL in the United States, CSA
in Canada and other similar bodies in countries around the world.
It is further understood that due to the unpredictable nature of connecting any
number of different amplifiers and pedals together, using the ABY can pose a
potential for electric shock, and as such, the user is completely responsible for
any and all consequences as these are beyond our control.
This means that you are completely responsible to ensure the safe and proper
use of the BigShot ABY and to clearly understand that using the BigShot ABY
confirms you have taken full responsibility. If you are not 100% sure of your ac-
tions, please consult a qualified technician for advice before using this device or
connecting any of your equipment to it.
RADIAL LIMITED THREE YEAR TRANSFERABLE
1
Radial Engineering Ltd. warrants this product to be free from defects in material and
workmanship to the original owner and will remedy any such defects free of charge
according to the terms of this warranty. Radial Engineering will repair or replace at its
option any defective component(s) of this product, excluding the finish, the footswitch
(footswitch is warranted for 90 days) and wear and tear from normal use, for a period
of three (3) years from the original date of purchase. In the event that a particular
product is no longer available, Radial Engineering reserves the right to replace the
product with a similar product of equal or greater value. To make a request or claim
under this limited warranty, the product must be returned prepaid in the original shipping
container (or equivalent) to Radial Engineering or to an authorized repair centre and
you must assume the risk of loss or damage. A copy of the original invoice showing
date of purchase and the dealer name must accompany any request for work to be
performed under this limited warranty. This limited warranty shall not apply if the product
has been damaged due to abuse, misuse, misapplication, accident or as a result of
service or modification by any other than an authorized repair centre.
THERE ARE NO EXPRESSED WARRANTIES OTHER THAN THOSE ON THE FACE
HEREOF AND DESCRIBED ABOVE. NO WARRANTIES, WHETHER EXPRESSED
OR IMPLIED, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
EXTEND BEYOND THE RESPECTIVE WARRANTY PERIOD DESCRIBED ABOVE
OF THREE YEARS.
RADIAL ENGINEERING SHALL NOT BE RESPONSIBLE OR LIABLE FOR ANY
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS ARISING
FROM THE USE OF THIS PRODUCT. THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH MAY VARY
6
DEPENDING ON WHERE YOU LIVE.
User Guide
Radial Engineering Ltd.
True to the Music

IMPORTANT NOTICE!

WARRANTY
BigShot ABY
User Guide
True to the Music
®
BigShot ABY
User Guide
CAUTION: PLEASE READ THE IMPORTANT NOTICE ON
THE BACK COVER BEFORE USING THE BIGSHOT ABY
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam
British Columbia, Canada, V3C 5M5
Tel: 604-942-1001 • Fax: 604-942-1010
Email: info@radialeng.com
Radial BigShot ABY User Guide Part #: R870 1120 10 / 06-2016
Subject to change without notice
