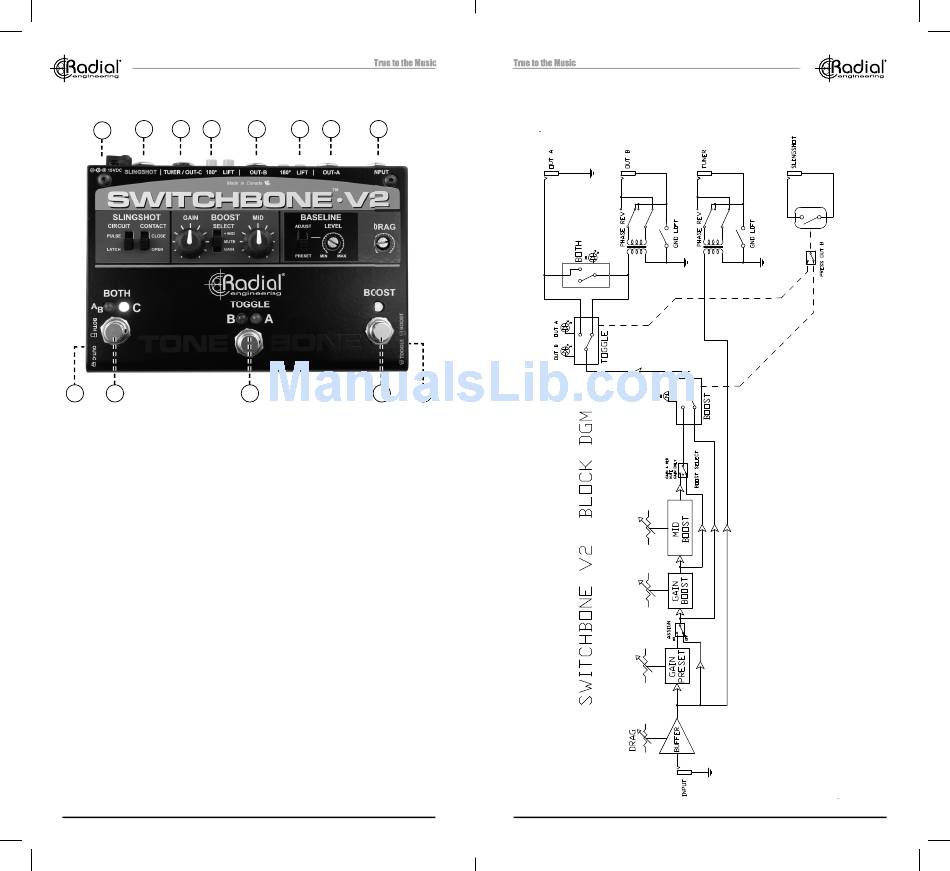

FEATURES
2 3 4
1
9 10
1. 15VDC: Connection for the power supply.
2. SLINGSHOT: Contact closure output used to activate external
devices.
3. TUNER/OUT-C: Isolated ¼" output used to feed a tuner or a 3rd
guitar amplifi er.
4. 180º: Polarity reverse switch, used to phase-align OUT-B and C.
5. OUT-B: Isolated ¼" output used to feed the signal to your second
guitar amplifi er.
6. LIFT: Ground lift switch used to eliminate hum and buzz.
7. OUT-A: Direct ¼" output used to feed your primary amplifi er.
8. INPUT: Standard ¼" input used to connect your guitar to the
Switchbone V2.
9. BOTH / OUT-C: Recessed switch sets the footswitch function to
either activate both A and B amps, or turn on amp C.
10. BOTH: Footswitch used to activate both A and B amps, or turn on
amp C.
11. TOGGLE: Footswitch used to select between amps A or B.
12. BOOST: Footswitch used to activate the power booster.
13. TOGGLE / BOOST: Recessed switch to select which footswitch is
used to activate external devices via the SLINGSHOT.
Radial Engineering Ltd.
5 6 7 8
11 12 13
2
Switchbone V2
Switchbone ABY Block Diagram
