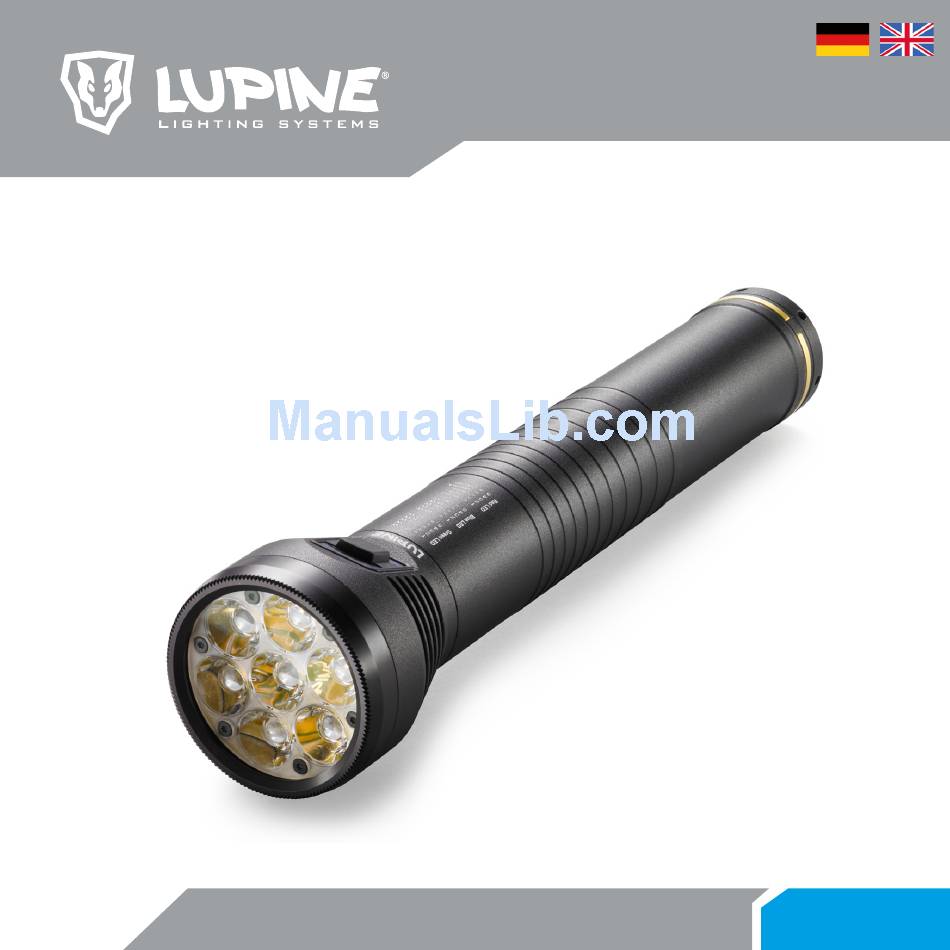

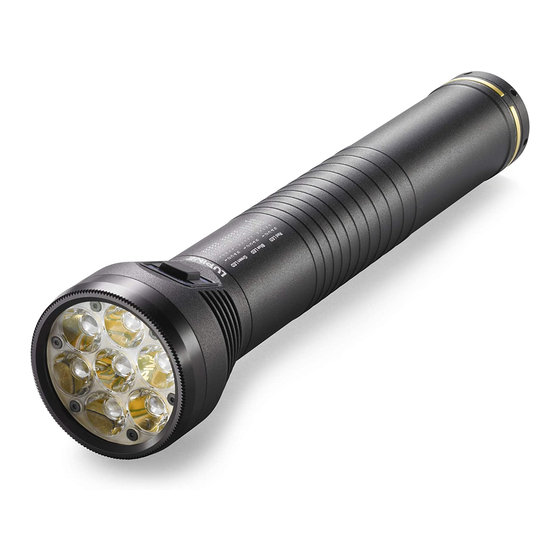

Spezialfunktionen 12-13 Zubehör Pflege & Lagerung Fehlerbehebung Technische Daten Letzte Hinweise English Read this manual before using Charging and installation 20-21 Operation 22–25 Programming 26–27 Special functions 28–29 Accessoires Product care and storage Troubleshooting Technical data Miscellaneous Betty TL2 Pro...
Diese Taschenlampe könnte jederzeit ausfallen. Deshalb ist es hilfreich, immer eine kleine Notlampe bereitzuhalten. Wärmeentwicklung: Unsere Betty TL2 Pro ist keine normale Taschenlampe. Das Gehäuse kann bei Dauerbetrieb in maximaler Leistungsstufe heiß werden, achten Sie deshalb immer auf ausreichenden Abstand zu brennbaren Materi- alien.
Laden und Montage Docking Station Die Betty TL2 Pro kann auf verschiedene Art und Weise geladen werden: - Über das beiliegende 12V Lupine Netzteil - Am Zigarettenanzünder mit dem 12V Kabel - An der Ladebuchse mit einem Lupine Standardlader (nicht im Lieferumfang enthalten)
Page 5
Laden mit Netzteil oder 12V Kabel Die Betty TL2 Pro kann über das Netzteil direkt an der Steckdose geladen werden. Stecken Sie das beiliegende Netzteil in Ihre Steckdose bzw. das 12V Kabel in die Buchse des Zigarettenan- zünders und verbinden Sie dieses mit der Docking Station.
Diese Anzeige können Sie jederzeit durch das Anschalten der Lampe unterbrechen. Sie müssen also nicht die gesamte Anzeige abwarten, bevor Ihre Lampe einsatzbereit ist. Die Steuerelektronik misst die Spannung unter Last, deshalb sind Messungen mit einem Voltmeter nicht vergleichbar. Betty TL2 Pro...
Page 7
Zuerst blinkt die blaue LED 1-mal pro Ah, dann blinkt die grüne LED 1-mal pro 1/10 Ah. Beispiel: Wenn die blaue LED 1-mal blinkt und anschließend die grüne LED 5-mal blinkt, wurden 1.5 Ah aus dem Akku entnommen. Betty TL2 Pro...
Backlight), wird der Scheinwerfer nach mehrmaligem Blinken abgeschaltet. Hinweis: Bei permanenter Nutzung der starken Leistungsstufen können die Akkuleerwarnungen in sehr rascher Folge ablaufen. Akku voll oder geringe sehr geringe rot + rot blinkend: teilentladen Restkapazität Restkapazität Akku leer Betty TL2 Pro...
Page 9
Warnung! Ein erneutes Anschalten ist nicht mehr möglich bzw. nur durch ein Neu-Anstecken des Akkus zu erzwingen schädigt immer den Akku! Im entladenen Zustand besteht die Gefahr der Tiefstentladung, laden Sie den Akku deshalb baldmöglichst wieder auf. Betty TL2 Pro...
Page 10
Leuchtstufe 28 W Leuchtstufe 34 W Leuchtstufe 45 W Leuchtstufe Center (0.8W)* SOS** Flash** dbl click * Wird im Betrieb durch eine grüne LED angezeigt. stealth ** Wird im Betrieb durch keine LED angezeigt. Werkseinstellung 1 0 Betty TL2 Pro...
Page 11
Um eine versehentliche Aktivierung zu verhindern, wird diese erweiterte Funktion auf besondere Art und Weise ausgewählt. Den Taster innerhalb von 2.5 – 3 Sekunden, 8-mal hintereinander rasch drücken. Zum Wechsel auf die Standardfunktionen den Taster erneut 8-mal drücken. Betty TL2 Pro...
Achtung! Wird der Akkutank vom Lampenkopf getrennt, funktioniert diese Anzeige nicht mehr richtig bis der Akku erneut voll aufgeladen ist. Beispiel: 70% Restkapazität = 3 rote LEDs leuchten, 1 rote LED blinkt Werkseinstellung 1 2 Betty TL2 Pro...
Page 13
6.8 V 6.4 V 5.6 V Rücksetzen auf Werkseinstellung: Taste solange gedrückt halten bis fünf rote LEDs leuchten. Taster loslassen Im Anschluss müssen Sie den Lampenkopf einmal vom Akku trennen und alle Werkseinstellungen sind wieder aktiviert. Betty TL2 Pro...
Stativ. Filterdeckel: Mit dem speziellen Filterdeckel können dank zusätzlichem Gewinde 55 mm Filter, wie sie z.B. im Fotozubehör erhältlich sind, aufgeschraubt werden. Diffusor für Fotografie: Art. Nr. 892 Diffusor Hinweis: Filter nicht im Lieferumfang enthalten. 1 4 Betty TL2 Pro...
Gewinde. Wichtig! Das Gewinde muss von Anfang an leichtgängig sein, ansonsten sofort zurückschrauben und erneut versuchen. Das Feingewinde verzeiht hierbei keinerlei Fehl- behandlung – deshalb ist hier besondere Sorgfalt notwendig! Drehen Sie den Deckel ganz zu. Betty TL2 Pro...
Siehe Seite 11. wenn der Taster gedrückt gehal- ten wird. Die Lampe lässt sich nicht aus Öffnen Sie den Sicherungs- Sicherungshebel der Docking Station entnehmen. hebel vollständig Die Halterung scheint zu blo- ckieren. 1 6 Betty TL2 Pro...
0.8 W Center-LED Die Leuchtzeiten können abhängig von Alter, Pflegezustand und Temperatur Schwankungen unterliegen. Docking Station: Akku und Oribtal Ladetechnik Betty TL2 Pro: 9.9Ah ORC, 72Wh /7.2 V Li-Ion Eingang: 12 – 24 V= Geeignete Akkus: 7.2 V Lupine ORC Anschlüsse: 3 hardvergoldete Bronze Frästeile...
Innerhalb der Garantiezeit von 24 Monaten umfasst die Gewährleistung alle Komponenten und deckt fertigungsbedingte Mängel ab. Ausgenommen ist jedoch der Akku. Des Weiteren erlöschen die Garan- tieansprüche bei nicht bestimmungsgemäßer Benutzung oder Veränderungen jeglicher Art. 1 8 Betty TL2 Pro...
Carry a spare light with you at all times, as the product can potentially fail unexpectedly at any time. Heat development: Our Betty TL2 Pro is not a normal flashlight. With continuous operation at maximum power, the enclo- sure may become hot; therefore, always ensure a safe distance to flammable materials.
Page 20
- By the included 12V adapter - 12V cable and cigarette lighter socket - Through the internal socket and a Lupine standard charger (not included) - Direct connection to 12V - 24V DC through the included cable Installation to the wall or inside the vehicle To attach the docking station, use the holes in the anodized metal rail.
Page 21
Charging with power adapter or 12V cable With the power adapter the Betty TL2 Pro can be charged from the wall socket. Plug the supplied power adapter into your wall socket and connect it to the docking station. Make sure the lock is open. Set and press the TL2 Pro into the docking station. You must overcome a clear pressure point.
(once per 1/10 Volt) you needn't let the display go through its whole cycle in order to use the lamp. The control electronics measures the voltage under load. Thus, measurements using a voltmeter will not be comparable. 22 Betty TL2 Pro...
green LED blinks once for each 1/10 of an Ah. Example: The blue LED flashes once and then the green LED flashes five times. This indicates that 1.5 Ah have been drawn from the battery. Betty TL2 Pro...
Page 24
When permanently operating the lamp at high power, the battery warnings may be issued in very quick sequence. Battery full or partly low capacity very low capacity red + red blinking: discharged remaining remaining battery empty 24 Betty TL2 Pro...
Page 25
Warning: Do not switch on the light when the battery is discharged, as this will invariably damage the battery. Recharge the battery as soon as possible to avoid a deep discharged battery. Betty TL2 Pro...
Page 26
34 W brightness lvl 45 W brightness lvl center (0.8W)* SOS** flash** dbl click * If in use, shown by green LED stealth ** Will not be signalised by a status LED Default setting 26 Betty TL2 Pro...
Page 27
To prevent an activation by mistake, this mode is chosen in a special way. Press the button 8 times quickly during 2.5 – 3 seconds. To change back to the standard mode, press the button again 8 times quickly. Betty TL2 Pro...
Attention! When the lamp-head is discon- 10 Ah nected from a battery, the indicator will not work correctly until the battery is fully Disable indicator recharged Example: 70% Remaining capacity = 3 red LEDs on, 1 red LED blinking Default setting 28 Betty TL2 Pro...
Page 29
6.2 V 5.5 V 6.8 V 6.4 V 5.6 V Recover factory settings: Press and hold the button, until 5 LEDs turn on. release the button Disconnect the battery, and all factory settings will be restored. Betty TL2 Pro...
The special cap comes with an additional thread. Thanks to the cap 55 mm filters, such as available as foto accessories can be used. Diffusor for camera: Art. No. 892 Diffusor Note: Filters are not supplied with the light. 3 0 Betty TL2 Pro...
Important! The thread must always run smoothly, other- wise, screw off the cover again immediately and try again. The fine thread will not excuse any mishandling - therefore, be extremely careful! Fully screw down the cover. Betty TL2 Pro...
The light does only work if Police mode enabled. see page 27. I keep the button pressed. The docking station mechanism Lock not fully opened Check the locking mecha- seems to be blocked. nism 3 2 Betty TL2 Pro...
Charging time: Operating temperature: Battery and Orbital charging: –25 °C – +70 °C Betty TL2 Pro Betty TL2 Pro: 9.9 Ah ORC, 72Wh /7.2 V Li-Ion Terminals: 3 hardgold-plated bronze parts Current: 1.5 A max. Docking Station: Input voltage: 12 – 24 V= Charging current: up to 1.5 A...
The product's two year warranty applies to all components, as well as any manufacturing defect. The warranty does not include the battery, however. In addition, any modification or improper use of the product will void the warranty. 3 4 Betty TL2 Pro...
