T L 7 0 0
I n s t r u c t i o n M a n u a l
(Read before use!)
Content of package:

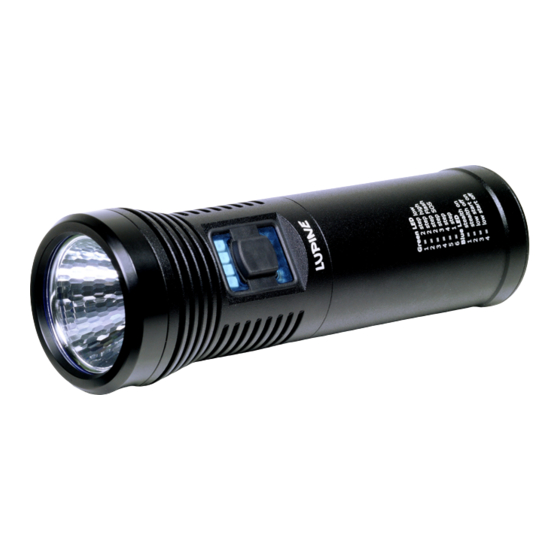

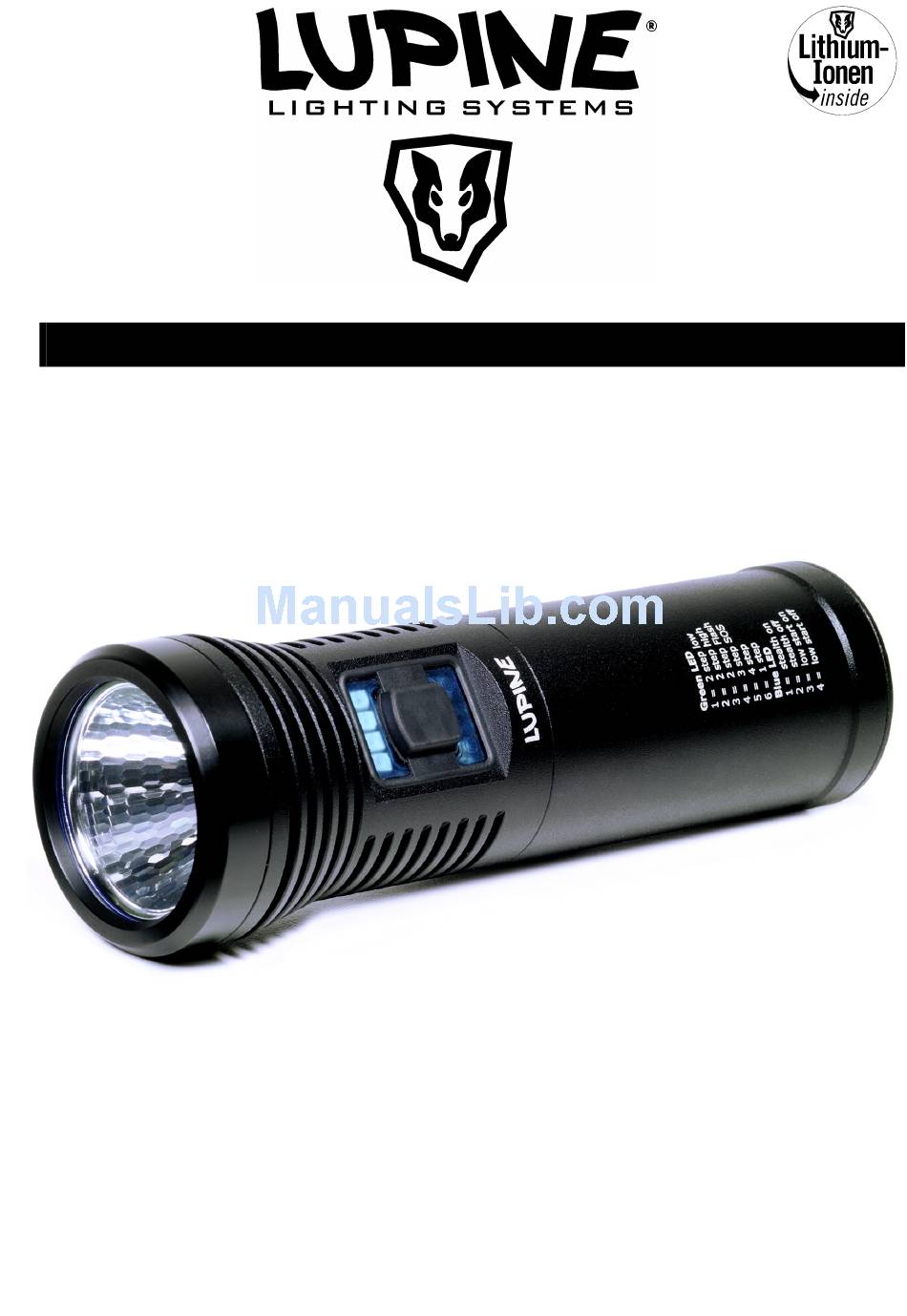

12 W programmable High- Power-LED Torch
Li-Ion battery 2.5 Ah / 7.2V
Lupine Micro Charger with AC/DC adaptor
12 V car adaptor
Instruction Manual (this document)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Lupine TL700
Summary of Contents for Lupine TL700
- Page 1 I n s t r u c t i o n M a n u a l (Read before use!) Content of package: 12 W programmable High- Power-LED Torch Li-Ion battery 2.5 Ah / 7.2V Lupine Micro Charger with AC/DC adaptor 12 V car adaptor Instruction Manual (this document) ...
-
Page 2: Read Before Use
If lamp is used without any airflow temperature control will reduce light power stepless up to 3 W after some minutes automatically. Dazzling: The TL700 is a powerful light. Always use it with care and with respect for others. Do not look directly into the light. Waterproof? All components of the TL 700 are splash proofed and will withstand even the most extreme conditions. -
Page 3: Using The Light
2.) U SING THE LIGHT Initialising: After connecting the lamp to the rechargeable battery part , the software will start a self- test, the Power LED will flash once. The batteries voltage will be indicated with the blue and red LED, please read more in the section “ Hints “ Now the TL 700 is ready for use. -
Page 4: Charging The Rechargeable Battery
The charging system of the TL 700 consists of two components: - AC/DC adaptor - Micro-Charger The Micro-Charger was developed for use with Lupine’s high current Li-Ion rechargeable batteries from AC/DC adaptor or with additional available 12 V car adaptor. Connection: Plug the AC/DC adaptor into the mains. - Page 5 5.) Changing the light modes The new Power Control System offers easy to handle settings to fine tune the light to individual needs. Out of the box, the TL 700 comes with a 2 step mode. Available are several other settings: 2 step mode low ( 12 W + 1.5 W )
-
Page 6: Care And Storage
The PCS monitors the capacity of the rechargeable battery by measuring the voltage. Unfortunately voltage and capacity are not exactly proportional which is why Lupine does not quote an exact remaining capacity when the yellow and red LEDs light up. It takes some experience of using the lighting system to tell exactly how much burn time is left when the yellow LED lights up. -
Page 7: Troubleshooting
Important: The top must be screwed onto the thread in the correct position. If the thread runs smooth, the top is in the right position. Otherwise, please stop, re-screw the top and try again or you might damage the thread. Please be cautious! Please make sure that the top is really closed completely, otherwise the casing will not be waterproof. -
Page 8: Important Notes
Please do inform yourself about possible restrictions in your country. The design of the TL 700 as well as of the PCS are protected by worldwide patents. Lupine Lighting Systems GmbH Winnberger Weg 11 D-92318 Neumarkt...
