Installation instructions:
1. Turn off both your SKYFi2
Receiver and home stereo.
2. Connect cables as illustrated in
figure 8.
3. Position the XM Antenna so that it
is facing south. Ideally, it should
point through a window.
4. Turn on your SKYFi2 Receiver and
the stereo.Tune to XM channel 1.You
should be able to hear the XM
Preview channel. If not, check all
connections.
Note: The Delphi SA10006 Antenna
Extension Cable (sold separately) is
designed to work with the SKYFi2 Home
Adapter Kit and provides an additional 50
feet of cable length to the standard XM
Home Antenna.
9/21/2006 12:09 PM

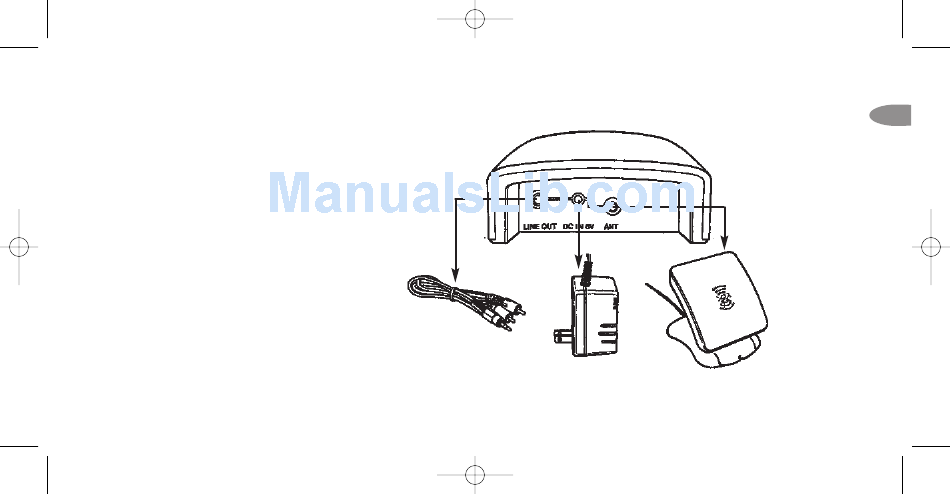

Figure 8. Connect the SKYFi2 Home Stand to power, antenna, and home stereo as shown.
